073-02-N-CB-RBC

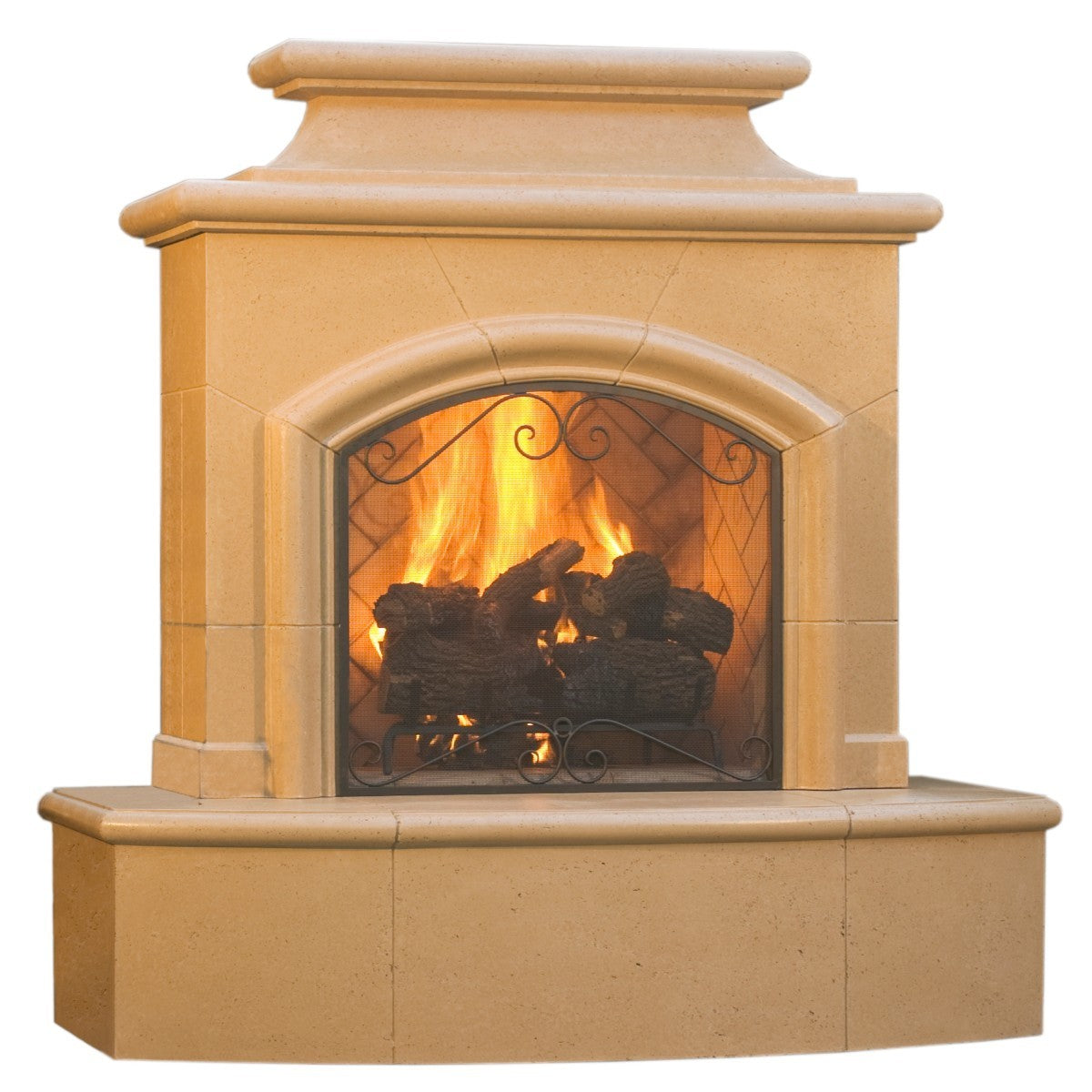

High-mass, free-standing outdoor fireplace engineered for vented gas performance and long-term weather resistance. The Mariposa 67" model provides a large viewing aperture and authentic masonry appearance with pre-finished concrete enclosure options. Controls and gas connection points are configured for contractor installation; valve location options are available to match installation needs. This fireplace accepts standard 1/2" gas line connections and supports natural gas inputs sized for high-output outdoor use. Installation requires a qualified gas technician and proper clearances for vented combustion appliances in outdoor living spaces. Surfaces are finished with choice of factory stain or pigment to maintain color stability and resist efflorescence. Unit is delivered in multiple crated sections; professional handling and a forklift are recommended for site placement. Warranty and service access details are provided in the product manual and spec sheets on the product page.
Key Features
- Cast construction
- Free standing installation
- Fireplace unit, hearth unit and four herringbone firebox liners included
Specifications
| Fuel Type | Natural Gas (NG). Factory-configurable for Liquid Propane (LP) by authorized dealer |
| Overall Width | 67 in |
| Overall Height | 72 in (estimated from similar Mariposa models) |
| Overall Depth | 30 in (front-to-back; estimated) |
| Viewing Opening Size | Approximately 32 in W x 28 in H (approx. viewing aperture) |
| BTU Input | Nominal high-output natural gas rating — contractor to size gas supply (refer to spec sheet) |
| Material / Finish | Precast architectural concrete with selectable finish (Sedona shown). Other factory finishes available |
| Gas Valve & Line Location Options | Right side, Back, or Left options available (select at time of order) |
| Shipping Weight | 900 lb (crated, approximate) |
| Shipping Dimensions (single crate estimate) | 72 in L x 36 in W x 48 in H |
| Recess Options | No recess (free-standing); optional built-in/recess kits available from manufacturer |
| Installation Notes | Professional installation required; masonry base and adequate clearances needed. Not a wood-burning appliance. |
High-mass, free-standing outdoor fireplace engineered for vented gas performance and long-term weather resistance. The Mariposa 67" model provides a large viewing aperture and authentic masonry appearance with pre-finished concrete enclosure options. Controls and gas connection points are configured for contractor installation; valve location options are available to match installation needs. This fireplace accepts standard 1/2" gas line connections and supports natural gas inputs sized for high-output outdoor use. Installation requires a qualified gas technician and proper clearances for vented combustion appliances in outdoor living spaces. Surfaces are finished with choice of factory stain or pigment to maintain color stability and resist efflorescence. Unit is delivered in multiple crated sections; professional handling and a forklift are recommended for site placement. Warranty and service access details are provided in the product manual and spec sheets on the product page.
Key Features
- Cast construction
- Free standing installation
- Fireplace unit, hearth unit and four herringbone firebox liners included
Specifications
| Fuel Type | Natural Gas (NG). Factory-configurable for Liquid Propane (LP) by authorized dealer |
| Overall Width | 67 in |
| Overall Height | 72 in (estimated from similar Mariposa models) |
| Overall Depth | 30 in (front-to-back; estimated) |
| Viewing Opening Size | Approximately 32 in W x 28 in H (approx. viewing aperture) |
| BTU Input | Nominal high-output natural gas rating — contractor to size gas supply (refer to spec sheet) |
| Material / Finish | Precast architectural concrete with selectable finish (Sedona shown). Other factory finishes available |
| Gas Valve & Line Location Options | Right side, Back, or Left options available (select at time of order) |
| Shipping Weight | 900 lb (crated, approximate) |
| Shipping Dimensions (single crate estimate) | 72 in L x 36 in W x 48 in H |
| Recess Options | No recess (free-standing); optional built-in/recess kits available from manufacturer |
| Installation Notes | Professional installation required; masonry base and adequate clearances needed. Not a wood-burning appliance. |
American Fyre Designs Installation & Owners Manual American Fyre Designs Specification
