408-HP
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

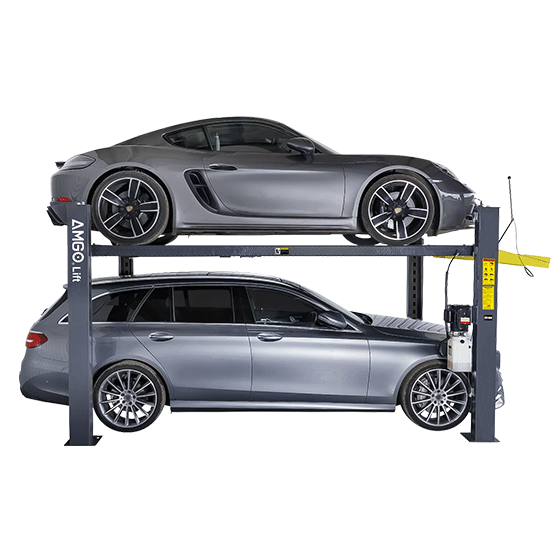

The deluxe 408-HP model includes all the great features of the 408‑P, plus an extra 14” high lifting. This ensures the effortless parking for SUVs, trucks, and other tall vehicles—no more tight fits, just smooth and simple.
Features
● Lifting capacity: 8,000lbs.
● AMGO ETL certified power unit comes as standard.
● High quality cylinder is designed and made to a high standard.
● AMGO’s patented design concealed safety lock control device, with manual single-point lock release.
● Aero standard cables are included as standard.
● Double-
shaped columns are utilized to enhance strength.
● Non-slip platforms come with foldable drive-in ramps as standard.
● Support back to back installation to minimize space occupancy.
● Power side column can be installed at any corner.
● Extremely high lifting is suitable to park taller vehicles.
● Pull rope comes as standard.
Specifications
| Model | 408-HP | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 98s(110v) 46s(220v) |
|
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 102 1/2" |
| Width Between Posts | D | 92 13/16" |
| Max. Lifting Height | E | 87 11/16" |
| Max. Locking Height | 84 15/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 82 15/16" |
| Max. Lock Underneath Runway | 80 3/16" | |
| Drive-Thru Clearance | I | 81 5/8" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,669 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
Shipping Information
Downloads:
AMGO 408-HP 8,000 lbs 4 Post Parking Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
