408-P
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

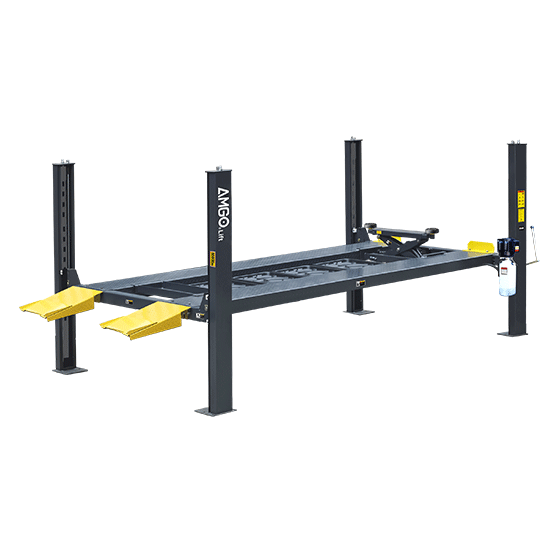

The 408 deluxe series provides a comfortable parking solution for vehicles up to 8,000lbs. 408-P is built sturdy and space-saving, offering a broader entrance and longer platforms. It doesn’t require anchoring to concrete and can be easily moved using caster kits. Deluxe & easy use, perfect application for residential and commercial.
Features
● Lifting capacity: 8,000lbs;
● AMGO ETL certified power unit comes as standard;
● High quality cylinder is designed and made to a high standard;
● AMGO’s patented design concealed safety lock control device, with manual single-point lock release;
● Aero standard cables are included as standard;
● Double-
shaped columns are utilized to enhance strength;
● Non-slip platforms come with foldable drive-in ramps as standard;
● Support back to back installation to minimize space occupancy;
● Power side column can be installed at any corner.
Specifications
| Model | 408-P | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 98s(110v) 40s(220v) |
|
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 102 1/2" |
| Width Between Posts | D | 92 13/16" |
| Max. Lifting Height | E | 73 11/16" |
| Max. Locking Height | 70 15/16" | |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 69" |
| Max. Lock Underneath Runway | 66 1/4" | |
| Drive-Thru Clearance | I | 81 5/8" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,563 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
Shipping Information
Downloads:
AMGO 408-P 8,000 lbs 4 Post Parking Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
