All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

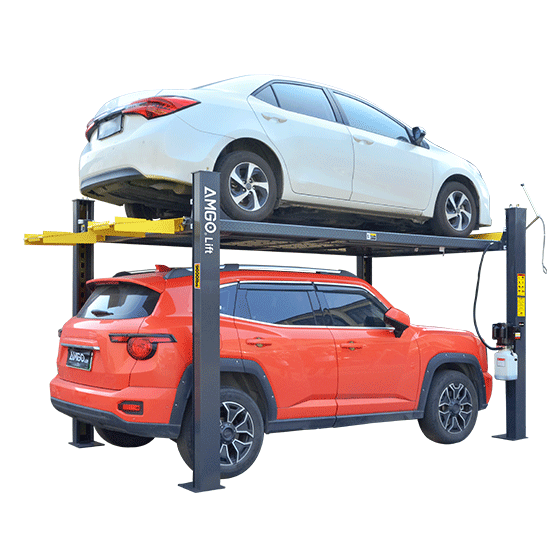

AMGO 409-HP Pro series is built for full range vehicles including car, SUV and light truck. It boasts a lifting capacity at 9000lbs, can handle some tough works such as parking longer and taller vehicles. It’s easy to install, requires barely maintenance and offers great mobility.
Features
● Lifting capacity: 9,000lbs;
● AMGO ETL certified power unit comes as standard;
● High quality cylinder is designed and made to a high standard;
● AMGO’s patented design concealed safety lock control device, with manual single-point lock release;
● Aero standard cables are included as standard;
● Double-
shaped columns are utilized to enhance strength;
● Non-slip platforms come with foldable drive-in ramps as standard;
● Support back to back installation to minimize space occupancy;
● Power side column can be installed at any corner;
● Extremely high lifting is suitable to park taller vehicles;
● Pull rope comes as standard;
Specifications
| Model | 409-HP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 143s(110v) 57s(220v) |
|
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 109 5/16" |
| Width Between Posts | D | 99 5/8" |
| Max. Lifting Height | E | 88 1/16" |
| Max. Locking Height | 85 5/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Max. Underneath Height | H | 82 9/16" |
| Max. Lock Underneath Runway | 79 13/16" | |
| Drive-Thru Clearance | I | 88 7/16" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | 1,956 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image
Shipping Information
Downloads:
AMGO 409-HP 9,000 lbs Parking Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
