AX-12A
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

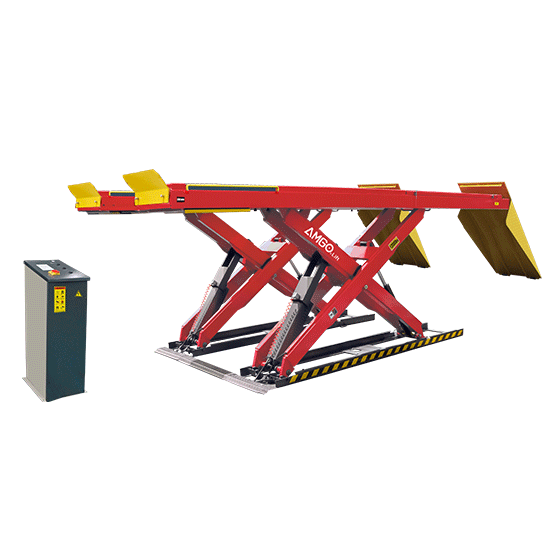

Designed for versatility, the AMGO AX-12A serves as a perfect partner for fulfilling various automotive service requirements, including alignment and general services. Boasting a substantial 12,000lb capability, it is well-equipped to handle larger vehicles and heavier workloads, ensuring optimal efficiency and productivity.
Features
- 12,000lbs capacity;
- Alignment service design;
- Robot X scissors heavy duty structure, provides superior performance and durability
- Full rise design, offers comfortable experience work underbeath;
- Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.;
- Dual safety system feature both hydraulic lock and self-locking mechanical lock with air lock release;
- Electric-hydraulic power system, with control power unit;
- Non-slip long and wide platforms accommodate various vehicles;
- Automatic safety stop device come standard;
Specifications
| Model | AX-12A | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 75s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12" | |
| Runway Length | B | 197 9/16" |
| Overall Width | C | 90 3/16" |
| Width Between Runways | D | 40 15/16" |
| Overall Length (Inc. Ramps) | E | 258" |
| Min. Four Wheel Align | F | 81 15/16" |
| Max. Four Wheel Align | G | 167 15/16" |
| Max. Two Wheel Align | H | 170 1/2" |
| Gross Weight | 5,741 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
Designed for versatility, the AMGO AX-12A serves as a perfect partner for fulfilling various automotive service requirements, including alignment and general services. Boasting a substantial 12,000lb capability, it is well-equipped to handle larger vehicles and heavier workloads, ensuring optimal efficiency and productivity.
Features
- 12,000lbs capacity;
- Alignment service design;
- Robot X scissors heavy duty structure, provides superior performance and durability
- Full rise design, offers comfortable experience work underbeath;
- Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.;
- Dual safety system feature both hydraulic lock and self-locking mechanical lock with air lock release;
- Electric-hydraulic power system, with control power unit;
- Non-slip long and wide platforms accommodate various vehicles;
- Automatic safety stop device come standard;
Specifications
| Model | AX-12A | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 75s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12" | |
| Runway Length | B | 197 9/16" |
| Overall Width | C | 90 3/16" |
| Width Between Runways | D | 40 15/16" |
| Overall Length (Inc. Ramps) | E | 258" |
| Min. Four Wheel Align | F | 81 15/16" |
| Max. Four Wheel Align | G | 167 15/16" |
| Max. Two Wheel Align | H | 170 1/2" |
| Gross Weight | 5,741 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO AX-12A 12,000 lbs Scissor Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
