BP-9
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

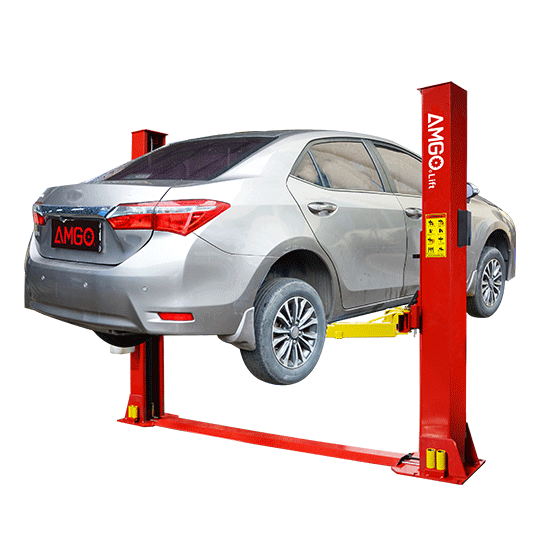

AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, ensuring both safe and comfortable operation. The base plate design provides shorter columns to accommodate ceiling height 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.
Features
- Lifting capacity: 9,000 lbs;
- Symmetric four 3-stage retractable arms are suitable for more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Areo sync cables come standard.
- Comes with detachable toe guard and tool tray;
- Standard single-screw rubber pad ( pin dia 1 1/2” ) with 3” extension adapters.
Specifications
| Model BP-9 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 37s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/4"~72 1/2" |
| Max. Lifting height: (w/ extension adapter) | 74 3/16"~75 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~70 15/16" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~73 7/8" | |
| Overall Height | B | 108" |
| Overall Width | C | 131 7/8" |
| Drive-Thru Clearance | D | 99" |
| Width Between Columns | E | 109 7/16" |
| Minimum Pad Height | F | 3 5/16" |
| Gross Weight | 1,321 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units / 20'GP |
Detailed Image
Shipping Information
Downloads
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, ensuring both safe and comfortable operation. The base plate design provides shorter columns to accommodate ceiling height 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.
Features
- Lifting capacity: 9,000 lbs;
- Symmetric four 3-stage retractable arms are suitable for more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Dual-safety lock structure guarantees more security;
- Self-lubricating UHMW polyethylene sliders;
- Areo sync cables come standard.
- Comes with detachable toe guard and tool tray;
- Standard single-screw rubber pad ( pin dia 1 1/2” ) with 3” extension adapters.
Specifications
| Model BP-9 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 37s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/4"~72 1/2" |
| Max. Lifting height: (w/ extension adapter) | 74 3/16"~75 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~70 15/16" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~73 7/8" | |
| Overall Height | B | 108" |
| Overall Width | C | 131 7/8" |
| Drive-Thru Clearance | D | 99" |
| Width Between Columns | E | 109 7/16" |
| Minimum Pad Height | F | 3 5/16" |
| Gross Weight | 1,321 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units / 20'GP |
Detailed Image
Shipping Information
Downloads
AMGO BP-9 9,000 lbs 2 Post Lift Manual
