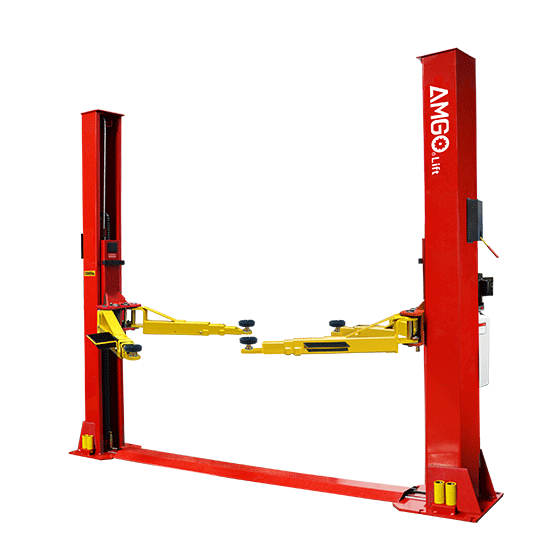

Enjoys most features as BP-9, BP-9X is more advanced , has a wider construction, and is taller and stronger. The reinforced structure improves the lifting reliability, providing convenient service for a vast range of vehicles. The base plate design can be installed in any workshops or garages over 9.5ft height.

Features

• Lifting capacity: 9,000 lbs;
• Commercial grade with enhanced structure, designed for professional workshops and home garages;
• Symmetric four 3-stage retractable arms are suitable for more vehicles;
• Automatic arms restraint;
• Single-point manual safety lock release, simultaneously unlocks both columns from one side;
• Dual-safety lock structure guarantees more security;
• Self-lubricating UHMW polyethylene sliders;
• Areo sync cables come standard;
• Comes with detachable toe guard and tool tray;
• Standard double-screw rubber pad ( pin dia 2″ ) with 3” extension adapters.

Specifications

Model BP-9X		Base plate two post lift
Lifting Capacity		9,000 Ibs
Lifting Time		49s
Max. Lifting height: (w/o extension adapter)	A	76 3/8"~78 1/4"
Max. Lifting height: (w/ extension adapter)		79 3/8"~81 1/4"
Max. lock height: (w/o extension adapter)		74 13/16“~76 11/16"
Max. lock height: (w/ extension adapter)		77 13/16"~79 11/16"
Overall Height	B	111 7/8"
Overall Width	C	136 1/4"
Drive-Thru Clearance	D	100 13/16”
Width Between Columns	E	112 1/4"
Minimum Pad Height	F	3 9/16"
Gross Weight		1,563 Ibs
Motor		2.0HP
QTY of Container		20 Units / 20'GP



Detailed Image

Shipping Information

Downloads:

AMGO BP-9X 9,000 lbs 2 Post Lift Manual

Warranty:

Every AMGO Car lift is Guaranteed

Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.

AMGO 5-3-2 Warranty: Industry-leading Service

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
