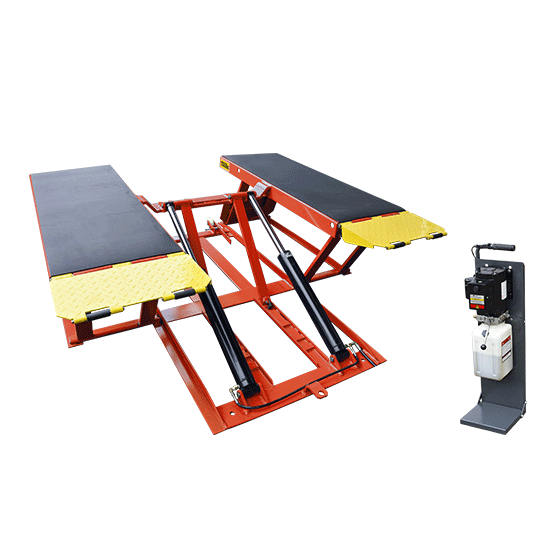

LR10
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

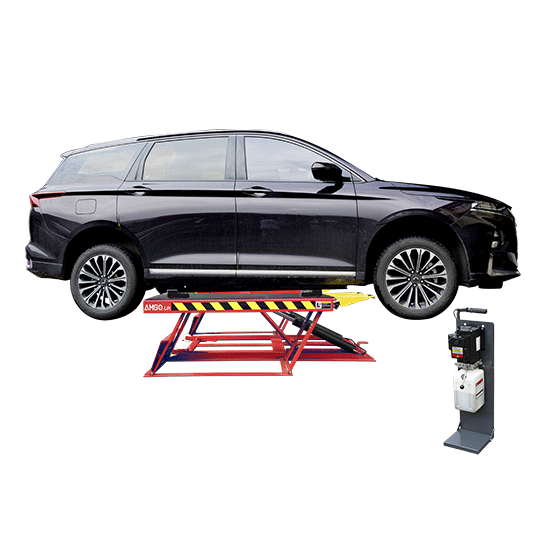

Featuring an innovative sunken design and expanded platforms, this powerhouse delivers a massive 10,000‑lb capacity. The wide, stable platforms fit everything from compacts to SUVs and vans, making it ideal for tire, suspension, and body work. From the shop to the field, the LR Series works where you do.
Features
- Lifting capacity: 10,000lbs;
- The new design dolly makes it easy to move the lift around the service bay or garage;
- Rugged platform and hard-rubber lifting pad ensure the stable and quick lifting;
- Dual-way drive-in ramps make full use of the space;
- Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism;
- 1-1/2″ and 2-3/4″ rubber pads come standard;
- Portable design, can easily moved to the service bay.
Specifications
| Model | LR10 | |
|---|---|---|
| Lifting Capacity | 10, 000 Ibs | |
| Lifting Time | 35s 56s |
|
| Max. Lifting Height | A | 24 3/16" |
| Minimum Height | 4 1/8" | |
| Overall Length (not incl. Ramps) |
B | 57 3/16" |
| Overall Length (incl. Ramps) |
C | 84 1/16" |
| Width between runways | D | 34 3/16" |
| Outside edge of runways | E | 77 15/16" |
| Gross Weight | 1,052 lbs | |
| Motor | 110V / 1.0HP 220V / 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
Featuring an innovative sunken design and expanded platforms, this powerhouse delivers a massive 10,000‑lb capacity. The wide, stable platforms fit everything from compacts to SUVs and vans, making it ideal for tire, suspension, and body work. From the shop to the field, the LR Series works where you do.
Features
- Lifting capacity: 10,000lbs;
- The new design dolly makes it easy to move the lift around the service bay or garage;
- Rugged platform and hard-rubber lifting pad ensure the stable and quick lifting;
- Dual-way drive-in ramps make full use of the space;
- Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism;
- 1-1/2″ and 2-3/4″ rubber pads come standard;
- Portable design, can easily moved to the service bay.
Specifications
| Model | LR10 | |
|---|---|---|
| Lifting Capacity | 10, 000 Ibs | |
| Lifting Time | 35s 56s |
|
| Max. Lifting Height | A | 24 3/16" |
| Minimum Height | 4 1/8" | |
| Overall Length (not incl. Ramps) |
B | 57 3/16" |
| Overall Length (incl. Ramps) |
C | 84 1/16" |
| Width between runways | D | 34 3/16" |
| Outside edge of runways | E | 77 15/16" |
| Gross Weight | 1,052 lbs | |
| Motor | 110V / 1.0HP 220V / 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO LR10 Low Rise Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
