MRL09
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

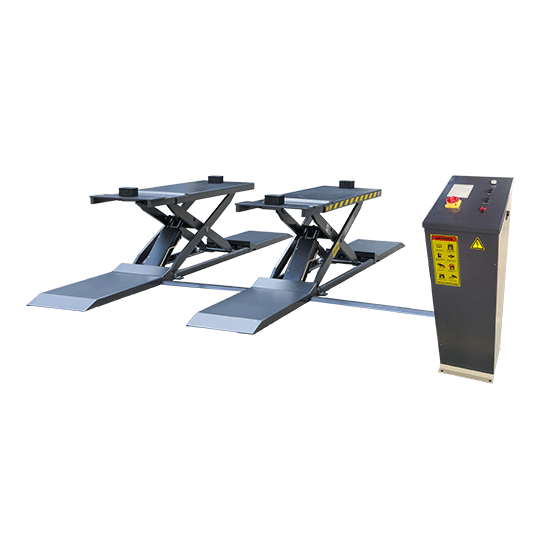

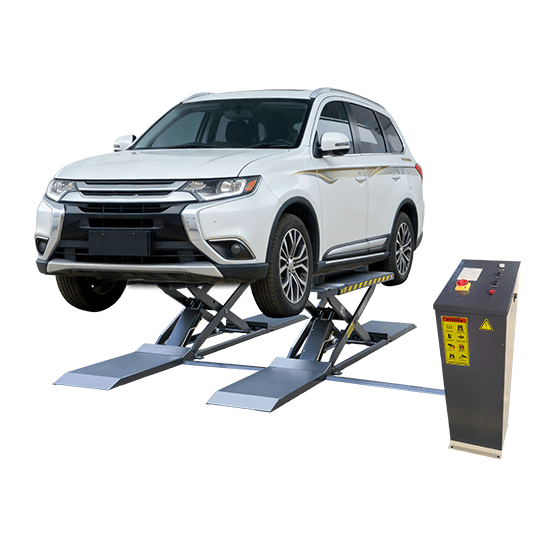

The MRL09 showcases an innovative two-stage runway design, creating a discreet low-profile entrance for a wide range of vehicles to enter from either side, accommodating low clearance cars. Ease to use, barely maintenance required, it’s the ideal mid-rise quick service lift.
Features
• 9,000lbs capacity;
• Low profile design with a minimum height 2 3/8″, accommodates ultra-low chassis vehicles;
• Dual two-stage drive in ramps, provide easy double entrance;
• Dual hydraulic synchronization & hydraulic locking system;
• No need of extra air source;
• Extendable platforms are applicable with different wheelbases;
• Standard ETL certificated power unit;
Specifications
| Model | MRL09 | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 30s | |
| Max. Lifting Height | A | 47 1/4" |
| Minimum Height | B | 5 5/16" |
| First Stage Rmap Height | C | 2 3/8" |
| Overall length (Inc Ramp) | D | 156 11/16" |
| Overall Width | E | 76 3/4" |
| Width Between Runways | F | 29 1/2" |
| Runway Length | G | 61 7/16" - 77 3/16" |
| Gross Weight | 1,821 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
The MRL09 showcases an innovative two-stage runway design, creating a discreet low-profile entrance for a wide range of vehicles to enter from either side, accommodating low clearance cars. Ease to use, barely maintenance required, it’s the ideal mid-rise quick service lift.
Features
• 9,000lbs capacity;
• Low profile design with a minimum height 2 3/8″, accommodates ultra-low chassis vehicles;
• Dual two-stage drive in ramps, provide easy double entrance;
• Dual hydraulic synchronization & hydraulic locking system;
• No need of extra air source;
• Extendable platforms are applicable with different wheelbases;
• Standard ETL certificated power unit;
Specifications
| Model | MRL09 | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 30s | |
| Max. Lifting Height | A | 47 1/4" |
| Minimum Height | B | 5 5/16" |
| First Stage Rmap Height | C | 2 3/8" |
| Overall length (Inc Ramp) | D | 156 11/16" |
| Overall Width | E | 76 3/4" |
| Width Between Runways | F | 29 1/2" |
| Runway Length | G | 61 7/16" - 77 3/16" |
| Gross Weight | 1,821 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO MRL09 Mid-Rise Scissors Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
