OH-10
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

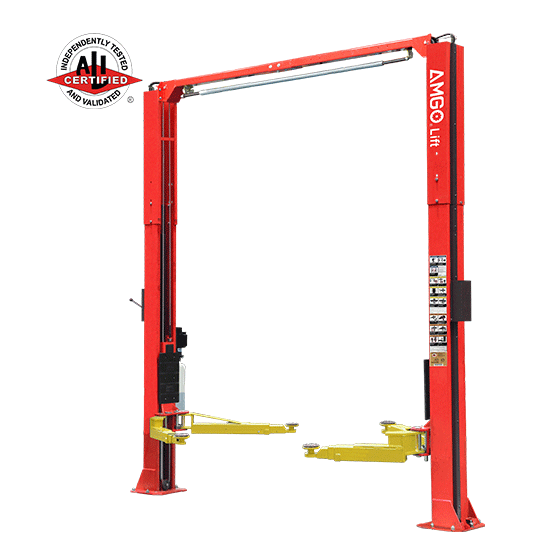

The new OH-10 is an industrial-grard two post lift that is ALI certified, representing AMGO’s professional expertise in development and manufacture. The robust design features two height settings as standard and two width settings as optional. It incorporates industry-leading freatures, including Super Asymmetric technology and single-point lock release, prioritizing operator safety and stability, long-term durability and ease of operation.
Features
- 10,000lbs capacity.
- Dual hydraulic direct-drived cylinders made on high standard.
-
arms allow an asymmetric or symmetric configuration. - Aero cable used for synchronization.
- Single-point manual safety release mechanism, disengages both columns simultaneously from one side.
- Self-lubricating UHMW Polyethylene sliders.
- Clear-floor design, provide unobstructed floor use.
- Overhead safety shut-off device for maximum vehicle protection.
- Stackable rubber pads and 1.5″, 2.5″, 5″ adapters as standard supply.
- Two standard height settings accommodate varying ceiling heights.
- Toe guards and tool trays come standard.
Specifications
| Model OH-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/2" |
| Max. Lifting height: (w/ extension adapter) | 80 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 1/2" | |
| Max. lock height: (w/ extension adapter) | 78 1/2" | |
| Overall Height | B | 142 1/2" 150 1/2" |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 15/16" |
| Gross Weight | 1,645 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Detailed Image
Shipping Information
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
The new OH-10 is an industrial-grard two post lift that is ALI certified, representing AMGO’s professional expertise in development and manufacture. The robust design features two height settings as standard and two width settings as optional. It incorporates industry-leading freatures, including Super Asymmetric technology and single-point lock release, prioritizing operator safety and stability, long-term durability and ease of operation.
Features
- 10,000lbs capacity.
- Dual hydraulic direct-drived cylinders made on high standard.
-
arms allow an asymmetric or symmetric configuration.
- Aero cable used for synchronization.
- Single-point manual safety release mechanism, disengages both columns simultaneously from one side.
- Self-lubricating UHMW Polyethylene sliders.
- Clear-floor design, provide unobstructed floor use.
- Overhead safety shut-off device for maximum vehicle protection.
- Stackable rubber pads and 1.5″, 2.5″, 5″ adapters as standard supply.
- Two standard height settings accommodate varying ceiling heights.
- Toe guards and tool trays come standard.
Specifications
| Model OH-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 1/2" |
| Max. Lifting height: (w/ extension adapter) | 80 1/2" | |
| Max. lock height: (w/o extension adapter) | 69 1/2" | |
| Max. lock height: (w/ extension adapter) | 78 1/2" | |
| Overall Height | B | 142 1/2" 150 1/2" |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 15/16" |
| Gross Weight | 1,645 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
