All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

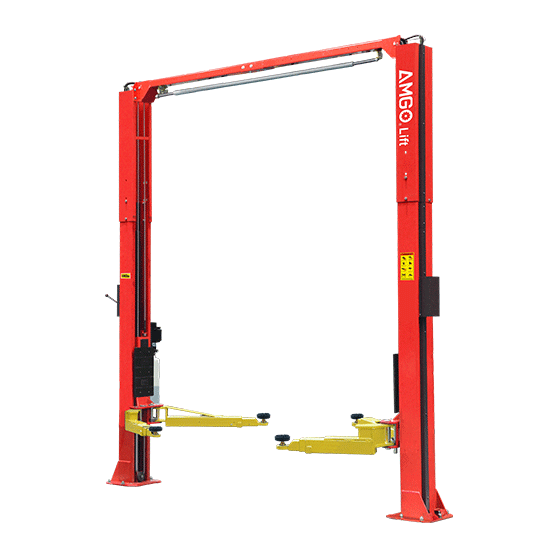

This versatile design optimizes shop or garage  space with standard two height settings accommodate  different ceiling heights. It incorporates Super Asymmetric technology for convenient symmetric or asymmetric loading. At a 9000lbs capacity, its sturdy structure also supports extra width and height extension, catering to diverse needs.

Features

• Lifting capacity: 9,000 lbs;
• Dual hydraulic direct-drived cylinders made on high standard;
• The Super Asymmetric arms allow symmetrical or asymmetrical loading, ensuring adequate door clearance ;
• Single-point manual safety lock release, simultaneously unlocks both columns from one side;
• Clear-floor design provides an unobstructed floor use;
• Overhead safety shut-off device for maximum vehicle protection;
• Two standard height settings accommodate varying ceiling heights;
• Self-lubricating UHMW polyethylene sliders
• Automatic arms restraint;
• Areo sync cables come standard;
• Comes with detachable toe guard and tool tray;
• Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.

Specifications

Model OH-9		Clear floor two post lift
Lifting Capacity		9,000 Ibs
Lifting Time		57s
Max. Lifting height: (w/o extension adapter)	A	71 7/16"~73 3/8"
Max. Lifting height: (w/ extension adapter)		74 7/16"~76 5/16"
Max. lock height: (w/o extension adapter)		69 5/8″~71 1/2"
Max. lock height: (w/ extension adapter)		72 5/8"~74 1/2"
Overall Height	B	143 1/8" (151")
Overall Width	C	135”
Drive-Thru Clearance	D	99 1/2"
Width Between Columns	E	112 3/16"
Minimum Pad Height	F	3 9/16"
Gross Weight		1,493 Ibs
Motor		2.0HP
QTY of Container		25 Units/20'GP



Detailed Image

Shipping Information

Downloads:

AMGO OH-9 9,000 lbs 2 Post Lift Manual

Warranty:

Every AMGO Car lift is Guaranteed

Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.

AMGO 5-3-2 Warranty: Industry-leading Service

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
