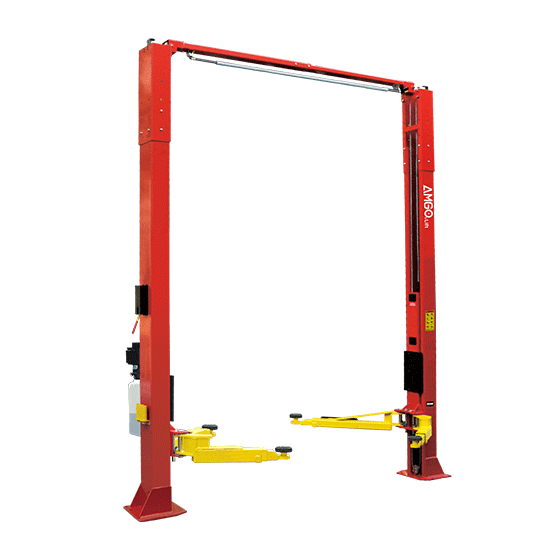

AMGO OHX-10H is designed for extremely high lifting up to a maximum of 87 3/4″, offering greater comfort when working beneath a vehicle. It offers two height settings, reaching up to 14ft, and is fitted with extremely long carriages, ensuring strong performance, stability, and minimal maintenance. This 10,000lbs capacity lift is the ideal choice to fulfill your professional lifting requirements.

Features

• Lifting capacity: 10,000 lbs;
• Dual hydraulic direct-drived cylinders made on high standard;
• The   arms allow a symmetrical or an asymmetrical loading, ensuring adequate door clearance;
• Single-point manual safety lock release, simultaneously unlocks both columns from one side;
• Clear-floor design, provides unobstructed floor use;
• Overhead safety shut-off device for maximum vehicle protection;
• Two standard height settings accommodate varying ceiling heights;
• Additional optional kits are available to extend the height and width to support a more comprehensive service;
• Self-lubricating UHMW polyethylene sliders;
• Automatic arms restraint;
• Areo sync cables comestandard;
• Comes with detachable toe guard and tool tray;
• Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.

Specifications

Model OHX-10H		Clear floor two post lift
Lifting Capacity		10,000 Ibs
Lifting Time		63s
Max. Lifting height: (w/o extension adapter)	A	78 3/4"~ 80 5/8"
Max. Lifting height: (w/ extension adapter)		81 3/4"~ 83 5/8"
Max. lock height: (w/o extension adapter)		77 3/16"~ 79 1/16"
Max. lock height: (w/ extension adapter)		80 3/16"~ 82 1/16"
Overall Height	B	157"~167 3/16"
Overall Width	C	134 15/16" (140 7/8")
Drive-Thru Clearance	D	99 13/16" (105 11/16")
Width Between Columns	E	112 1/4" (118 1/8")
Minimum Pad Height	F	3 9/16"
Gross Weight		1,709 Ibs
Motor		2.0HP
QTY of Container		15 Units/20'GP



Detailed Image

Shipping Information

Downloads

AMGO OHX-10H 10,000 lbs 2 Post Lift Manual

Warranty:

Every AMGO Car lift is Guaranteed

Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.

AMGO 5-3-2 Warranty: Industry-leading Service

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
