PRO-12SX
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

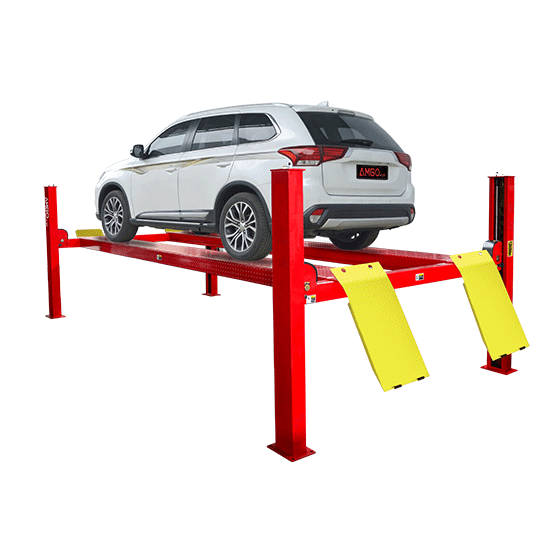

The Pro-12SX enhances the comfort to drive an vehicle on the non-skid platforms by offering a drive-through width of over 100″. It surpasses most similar options available in the market. The PRO-12SX, with a capacity of up to 12,000 lbs to accommodate various vehicles, is undoubtedly the ideal companion for garage and shop owners.
Features
• 12,000 lbs capacity, extremely wide design with a width more than 118″ betwwen columns
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Primary multiple safety locks and cable-slack protection system come standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms.
Specifications
| Model | Pro-12SX | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 232 5/8" |
| Outside Edge of Crossbeams | B | 190 9/16" |
| Overall Width | C | 132 1/8" |
| Width Between Columns | D | 118 1/8" |
| Max. Lifting Height | E | 74 7/16" |
| Max. Lock Height to top of runway | 71 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 104 3/16" |
| Width Between Runways | J | 43 5/16" Min. 35 7/16" Max. 53 3/4" |
| Outside Edge of Runways | K | 83 5/16" Min. 75 7/16" Max. 93 3/4" |
| Gross Weight | 2,229 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO PRO-12SX 12,000 lbs 4 Post Lift Manual
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
