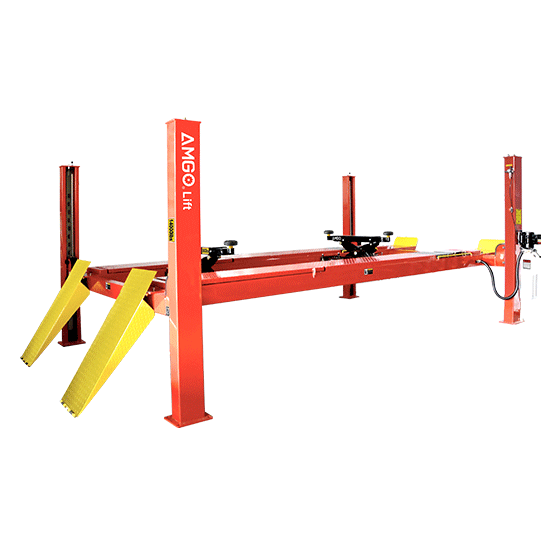

PRO-14A
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
Building on the trusted PRO-14, the PRO-14A adds integrated slip plates and turnplate pockets for professional-grade wheel alignment. Designed with extended runways, this commercial model effortlessly accommodates even the longest wheelbases—making it the complete solution for servicing trucks, RVs, and everything in between.
Features
• 14,000 lbs capacity.
• AMGO ETL certified power unit comes as standard.
• Mechanical self-locking safety device with air-driven lock release.
• Primary multiple safety locks and cable-slack protection system come standard.
• Cable-driven, utilizing aircraft standard high quality cables.
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
• Non-skid diamond platforms.
• Integrated slip plates and adjustable turnplate pockets.
Specifications
| Model | PRO-14A | |
|---|---|---|
| Lifting Capacity | 14,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 257 1/2" |
| Runway Length | B | 200 1/2" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Max. Lifting Height | E | 77 9/16" |
| Max. Lock Height to top of runway | 74 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 9 13/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Min. Four Wheel Align | L | 92 5/8" |
| Max. Four Wheel Align | M | 177 3/16" |
| Max. Two Wheel Align | N | 178 9/16" |
| Gross Weight | 3,560 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
Building on the trusted PRO-14, the PRO-14A adds integrated slip plates and turnplate pockets for professional-grade wheel alignment. Designed with extended runways, this commercial model effortlessly accommodates even the longest wheelbases—making it the complete solution for servicing trucks, RVs, and everything in between.
Features
• 14,000 lbs capacity.
• AMGO ETL certified power unit comes as standard.
• Mechanical self-locking safety device with air-driven lock release.
• Primary multiple safety locks and cable-slack protection system come standard.
• Cable-driven, utilizing aircraft standard high quality cables.
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
• Non-skid diamond platforms.
• Integrated slip plates and adjustable turnplate pockets.
Specifications
| Model | PRO-14A | |
|---|---|---|
| Lifting Capacity | 14,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 257 1/2" |
| Runway Length | B | 200 1/2" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Max. Lifting Height | E | 77 9/16" |
| Max. Lock Height to top of runway | 74 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 9 13/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Min. Four Wheel Align | L | 92 5/8" |
| Max. Four Wheel Align | M | 177 3/16" |
| Max. Two Wheel Align | N | 178 9/16" |
| Gross Weight | 3,560 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO PRO-14A 14,000 lbs 4 Post Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
