PRO-30E
SHIPPING
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.

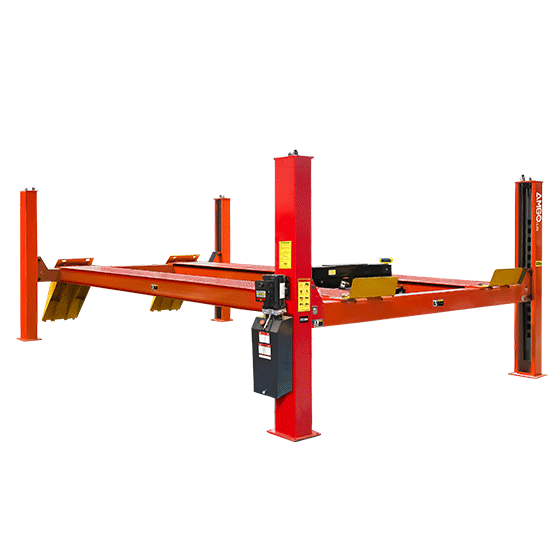

The PRO-30E, being 59″ longer than the PRO-30, enhances both performance and comfort when it comes to lifting vehicles of even greater length.
Features
• 30,000 lbs capacity, 59″ longer than PRO-30;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Both primary multiple safety locks and cable-slack protection system are equipped as standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms allow two width setting.
Specifications
| Model | PRO-30E | |
|---|---|---|
| Lifting Capacity | 30,000 Ibs | |
| Lifting Time | 133s | |
| Overall Length (Inc Ramps) | A | 366 1/8" |
| Outside Edge of Crossbeams | B | 307 1/16" |
| Overall Width | C | 147 9/16" |
| Width Between Columns | D | 130" |
| Max. Lifting Height | E | 75 3/16" |
| Max. Lock Height to top of runway | 72 1/16" | |
| Overall Height | F | 92" |
| Minimum Height | G | 10 1/4" |
| Max. Underneath Height | H | 66 5/16" |
| Max. Lock Underneath Runway | 63 3/16" | |
| Drive-Thru Clearance | I | 115 15/16" |
| Width Between Runways | J | 46" 54 1/16“ |
| Outside Edge of Runways | K | 94" 102 1/8” |
| Gross Weight | 6,860 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
All AMGO products have shipping costs. Please call before ordering for a shipping quote — note there is a 5% cancellation fee once an order is placed.
The PRO-30E, being 59″ longer than the PRO-30, enhances both performance and comfort when it comes to lifting vehicles of even greater length.
Features
• 30,000 lbs capacity, 59″ longer than PRO-30;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Both primary multiple safety locks and cable-slack protection system are equipped as standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms allow two width setting.
Specifications
| Model | PRO-30E | |
|---|---|---|
| Lifting Capacity | 30,000 Ibs | |
| Lifting Time | 133s | |
| Overall Length (Inc Ramps) | A | 366 1/8" |
| Outside Edge of Crossbeams | B | 307 1/16" |
| Overall Width | C | 147 9/16" |
| Width Between Columns | D | 130" |
| Max. Lifting Height | E | 75 3/16" |
| Max. Lock Height to top of runway | 72 1/16" | |
| Overall Height | F | 92" |
| Minimum Height | G | 10 1/4" |
| Max. Underneath Height | H | 66 5/16" |
| Max. Lock Underneath Runway | 63 3/16" | |
| Drive-Thru Clearance | I | 115 15/16" |
| Width Between Runways | J | 46" 54 1/16“ |
| Outside Edge of Runways | K | 94" 102 1/8” |
| Gross Weight | 6,860 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO PRO-30E Heavy-Duty 30,000 lbs 4 Post Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
