KT-AV651

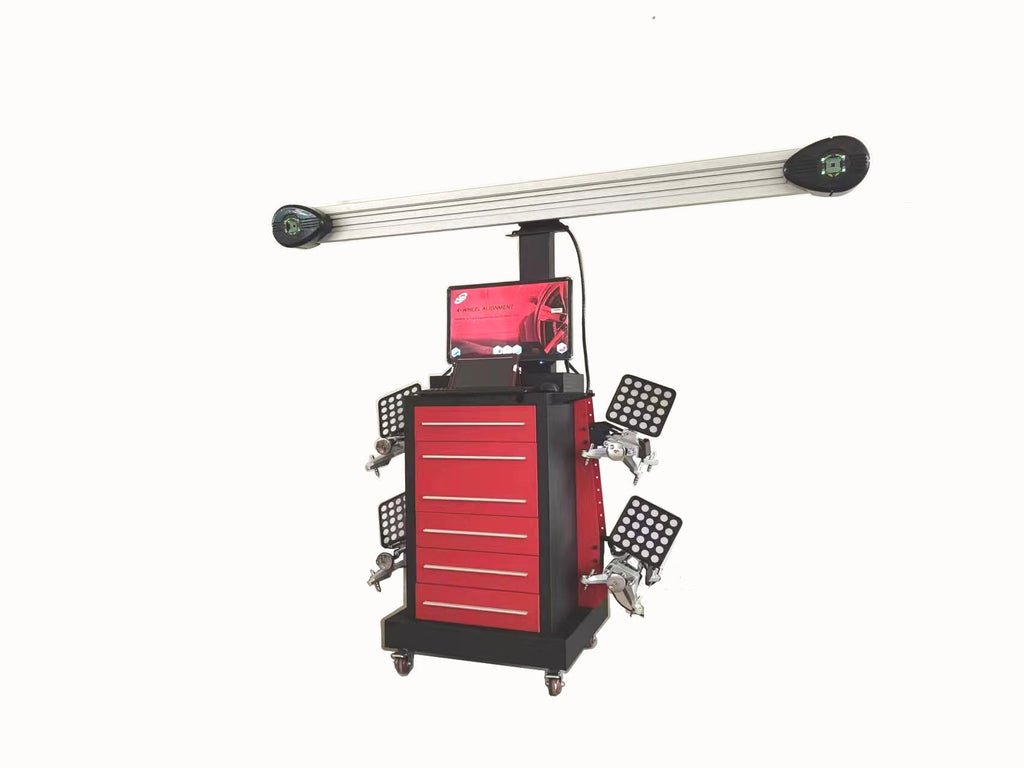

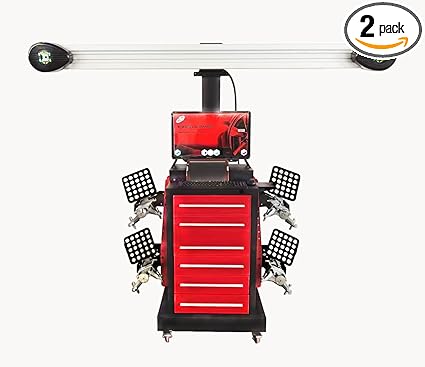

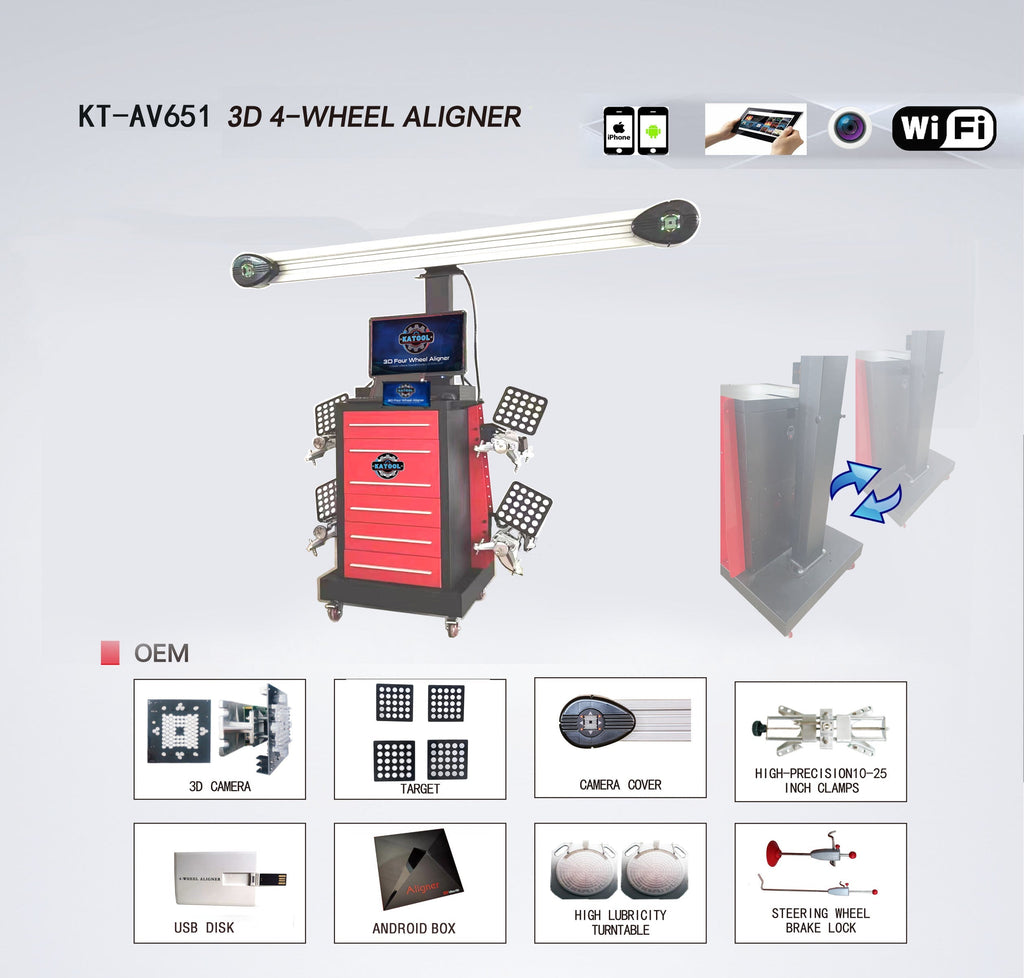

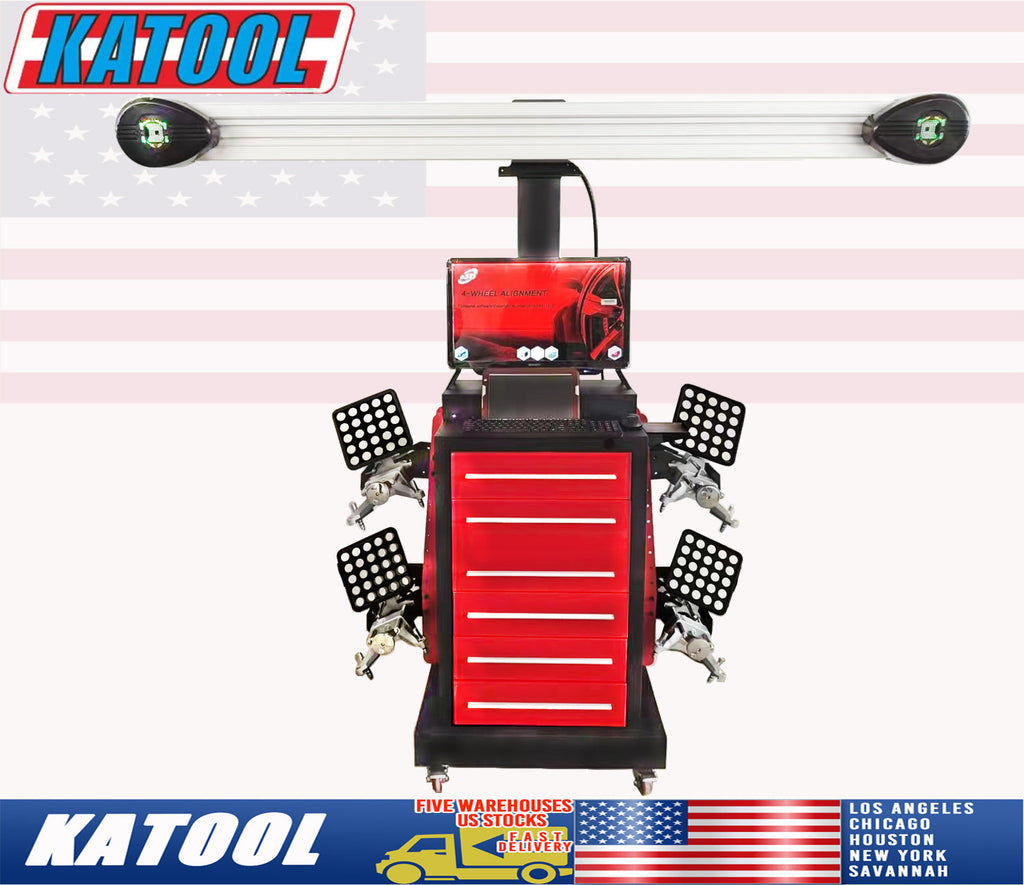

KATOOL mobile 3D wheel alignment system is designed for lift-based service bays and delivers accurate four-wheel geometry measurements using two high-resolution cameras. The system stores unlimited vehicle specifications to streamline repeat services and reduces setup time with no calibration required during installation. It includes a tablet, a 30-inch display, mouse, keypad and printer to support clear technician workflow and on-site reporting. Wireless connectivity and a complimentary Wi‑Fi device plus USB drive enable synchronous display on smartphones and tablets for remote monitoring during adjustments. Software supports Android and iOS platforms and provides yearly database updates covering US, European and Asian vehicle models. Tire diameter, wheelbase and track-width ranges accommodate most passenger and light-commercial vehicles. The equipment ships via freight with a documented one-year limited parts warranty and requires forklift unloading at delivery. Power requirements are 100–240 V, 50/60 Hz, single phase and the operating range is 41–104 °F. Product and shipping weights are listed for logistics planning and crate dimensions are specified for freight handling.
Features
- Mobile 3D Wheel Aligner for Lift Application
- Unlimited memory for vehicle specifications
- No calibration during installation
- Includes tablet and a 30inch display screen, mouse and keypad, and a printer
- Complementary wifi device and USB drive
- Uses Android and IOS systems for the software, minimizes the need for software and system maintenance

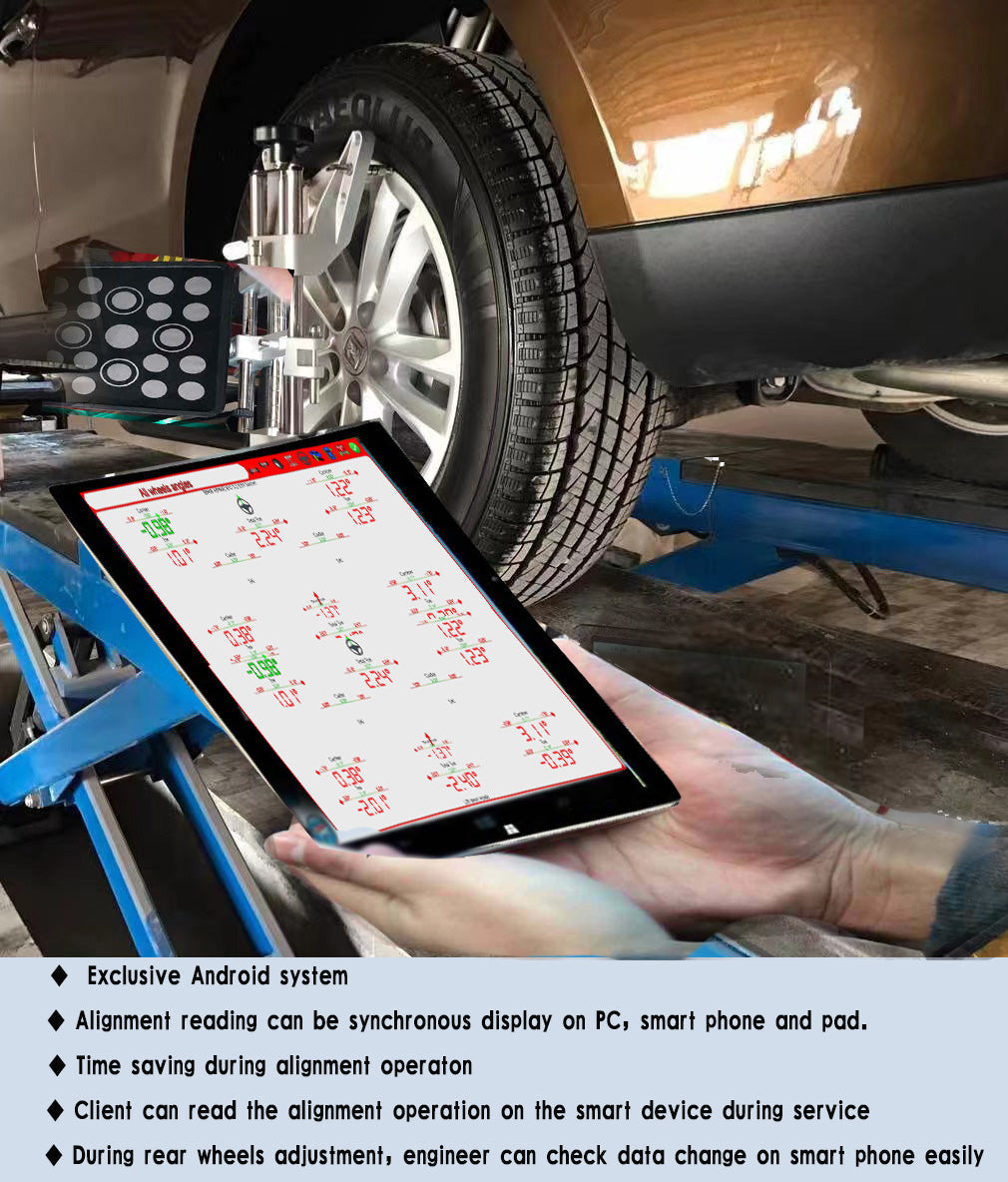

- Synchronous Display on Smart Phone and Pad
- The client can read the alignment operation on the smart device during the service
- During rear wheel adjustment, the engineer can check data changes on a smartphone easily
- The post moves manually
- Free database upgrades yearly
- The database keeps up with the most recent car models from all US, European and Asian brands.
Specifications
| Wheelbase range | 62 63/64 – 82 43/64 in (1.6 – 2.1 m) |
| Track width range | 70 55/64 – 177 11/64 in (1.8 – 4.5 m) |
| Tire diameter range | 9 27/32 – 31 1/2 in (250 – 800 mm) |
| Shipping dimensions (primary crate) | 29.92 x 48.03 x 47.24 in (760 x 1220 x 1200 mm) |
| Power supply | 100–240 V, 50/60 Hz, 1 phase |
| Operating temperature | 41 – 104 °F (5 – 40 °C) |

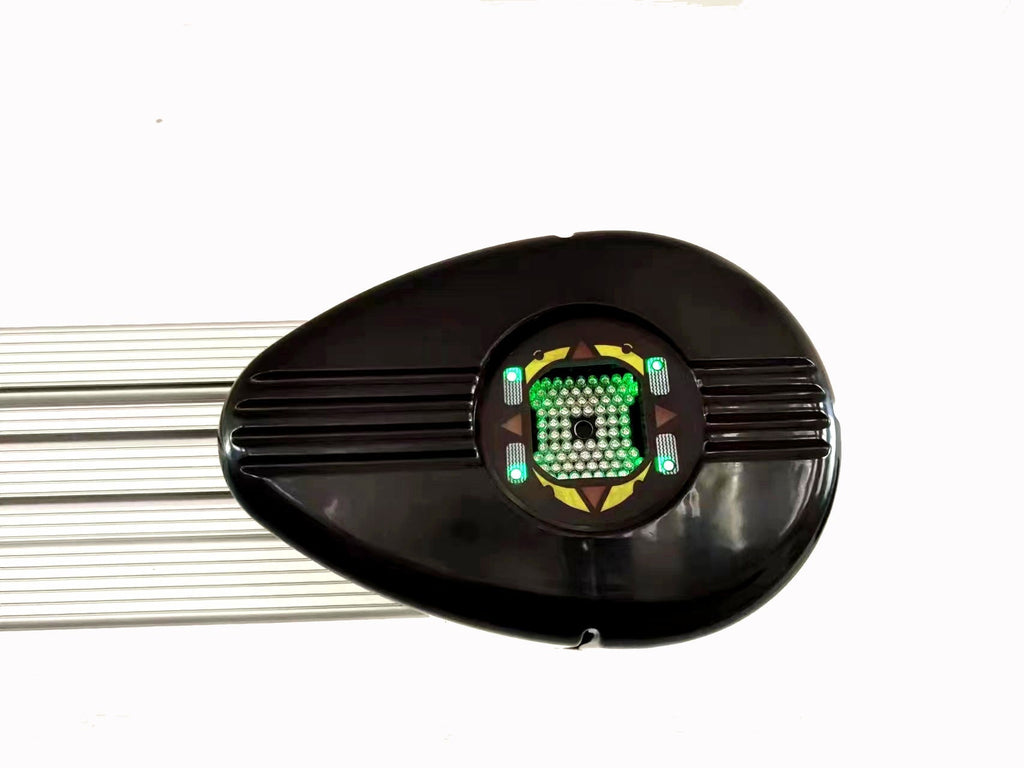

| Cameras (total) | 2 high-resolution cameras for 3D measurements |

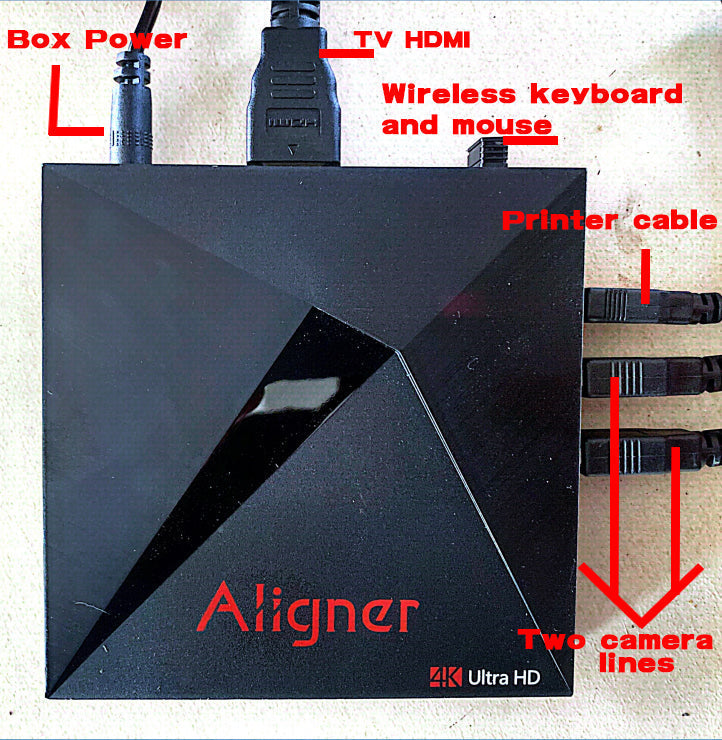

| Includes | Tablet, 30-inch display, mouse, keypad, printer, Wi‑Fi device, USB drive; Android and iOS software; yearly database upgrades |
| Product weight | 440.92 lb |
| Shipping weight | 529.11 lb |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
