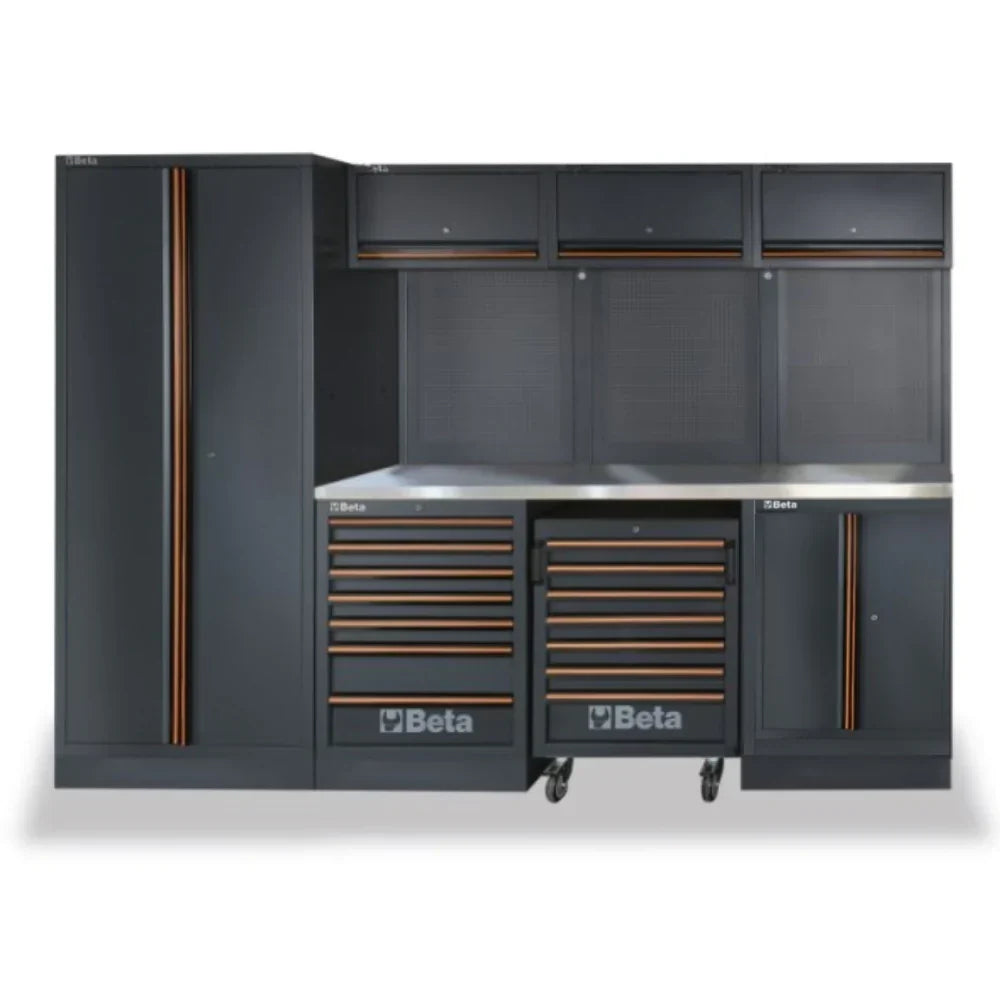

The Beta Tools C45PRO/XMA is a 116.3" × 19.5" × 78.7" modular garage cabinet system built from 18-gauge sheet steel, combining a fixed 7-drawer module, a dockable 7-drawer mobile roller cabinet, a two-door fixed module, a full-height locker, three wall-mounted cabinets, three perforated tool panels, and a continuous stainless steel coated MDF worktop — all in a single pre-configured system weighing 672.4 lbs.

This Set Includes:

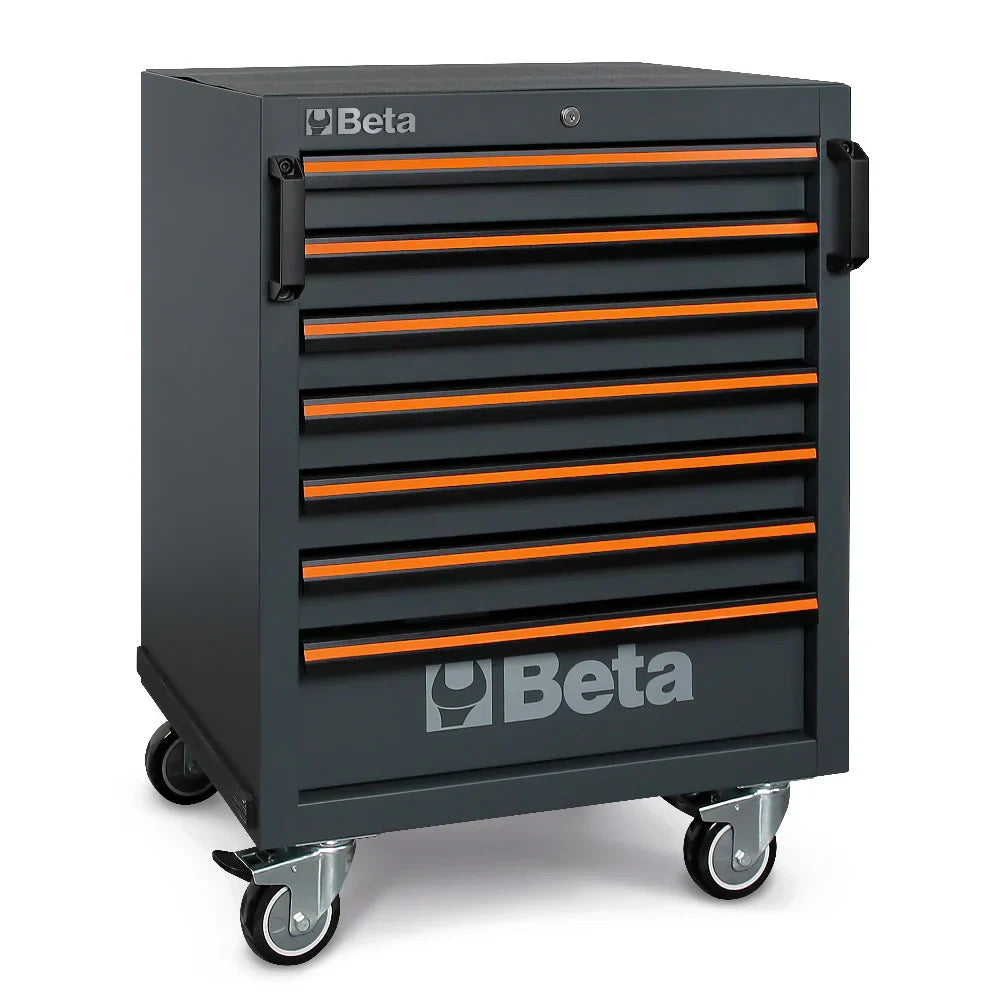

• 1 × Mobile Roller Cabinet — 7 drawers, ball-bearing slides, foam rubber mats, docks under worktop

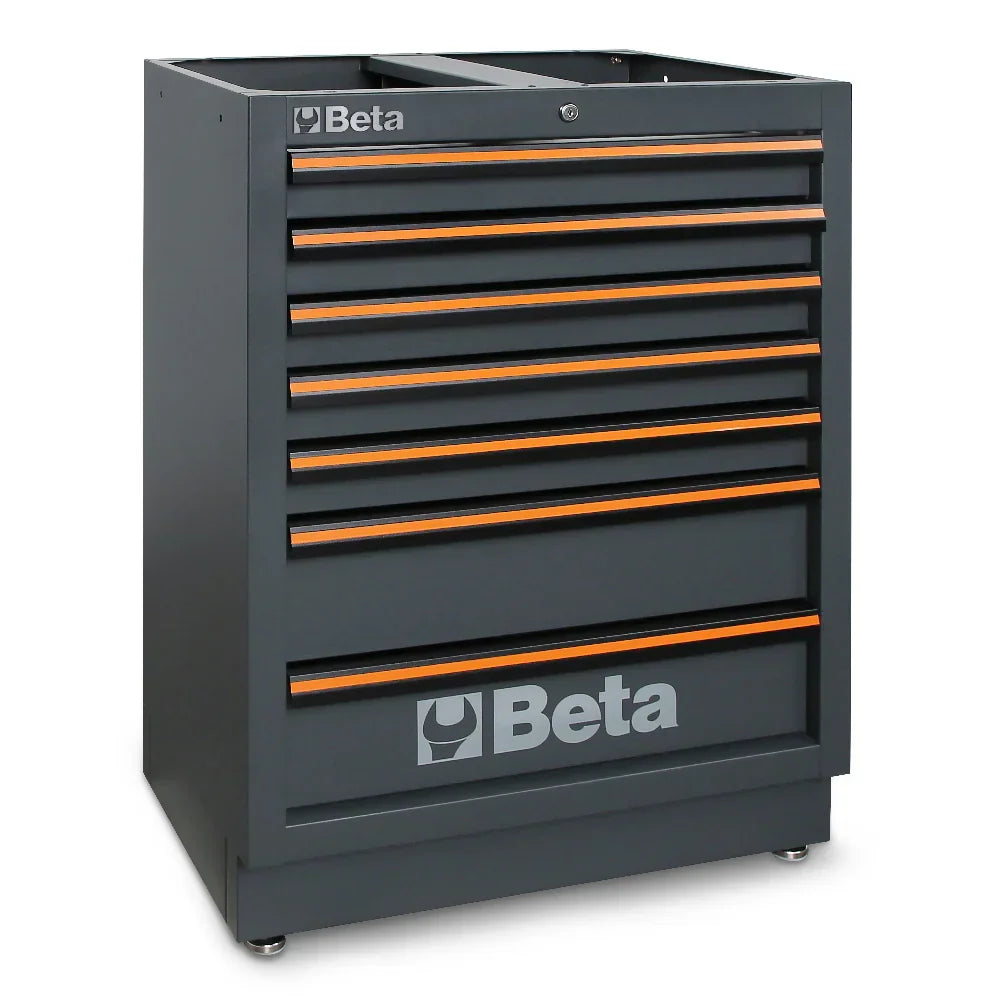

• 1 × Fixed 7-Drawer Module — ball-bearing slides, foam rubber mats, centralized locking

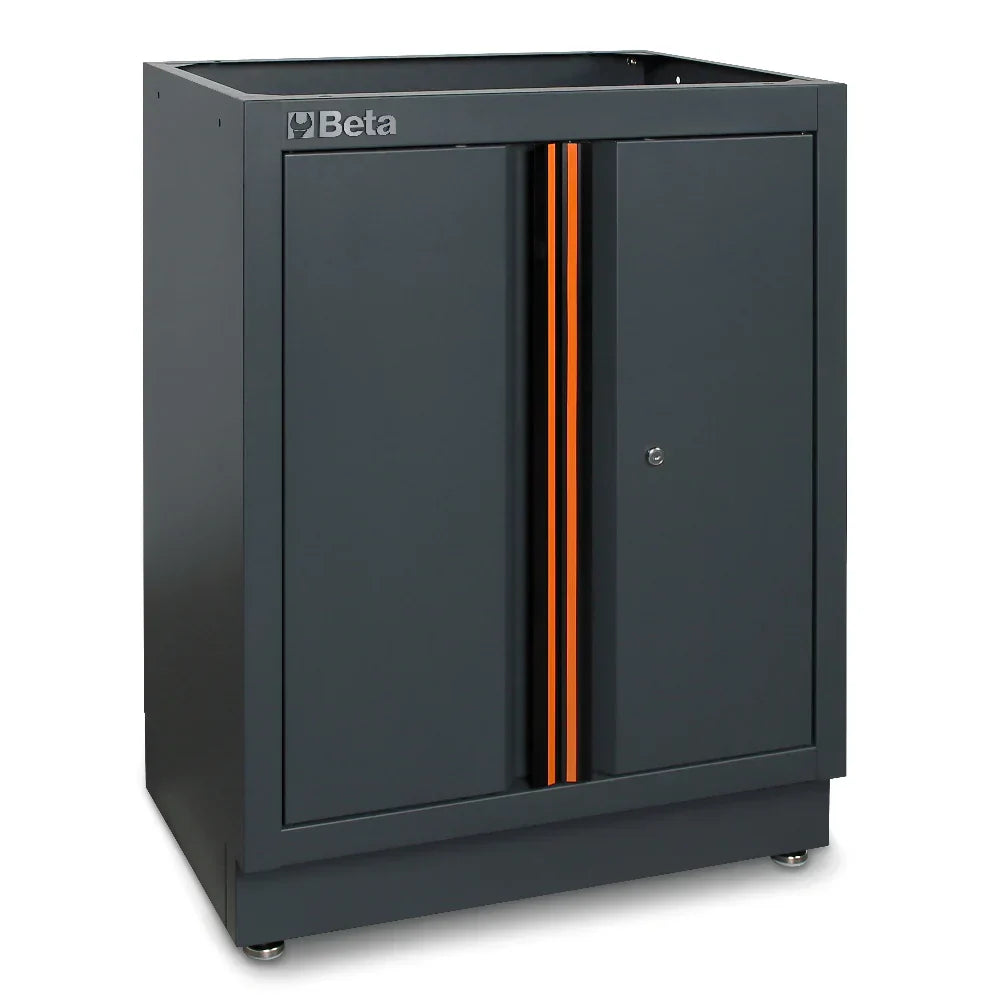

• 1 × Fixed Two-Door Module — enclosed storage for bulky items, cleaning supplies, or equipment cases

• 1 × Tall Single-Door Tool Cabinet (Locker) — full-height vertical storage with adjustable shelves for long items, coveralls, or large cases

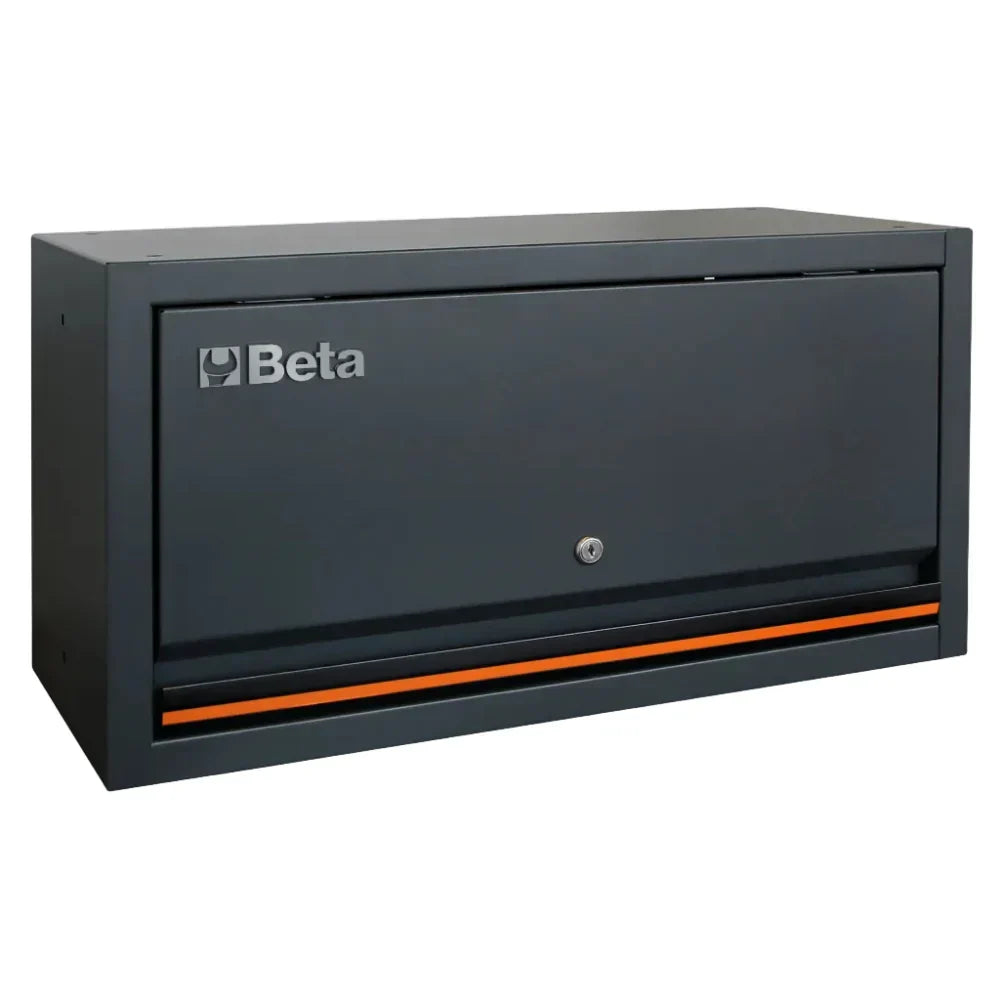

• 3 × Wall-Mounted Cabinets — overhead enclosed storage above the worktop

• 3 × Perforated Tool Panels — wall-mounted pegboard-style panels for hanging tools and accessories

• 4 × Wall Brackets — structural mounting hardware for wall cabinets and panels

• 1 × Continuous Worktop — 116" stainless steel coated MDF surface spanning all base modules

Product Features:

• System Dimensions: 116.3" W × 19.5" D × 78.7" H
• Material: 18-gauge sheet steel throughout all modules
• Worktop: Continuous stainless steel coated MDF — oil-resistant, chemical-resistant, rated for major teardowns and assembly work
• Total System Weight: 672.4 lbs
• Warranty: 1-year manufacturer warranty
• Origin: China
• SKU: 45001997

• Minimum Bay Width: 116.3" (9' 8.3") for base modules — additional clearance required for wall cabinet installation above

• Floor Depth Requirement: 19.5" base module depth — verify wall-to-obstruction clearance before positioning

• System Height: 78.7" to top of wall cabinets — confirm ceiling clearance for wall cabinet installation

• Wall Load: Wall brackets support 3 overhead cabinets and 3 perforated panels — verify wall stud spacing and substrate before installation; drywall anchors alone are not rated for this load

• Floor Load: 672.4 lbs system weight — distributed across base module footprint; verify concrete slab or subfloor rating if installing over wood framing

• Mobile Cart Dock: The 7-drawer roller cabinet docks under the worktop — confirm dock clearance height matches cart height before final worktop installation

• Delivery Note: At 672.4 lbs, this system ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
