C57S/D-O
![]()
Kindly Note : This item is "Made to Order" and lead time is about 4-12 weeks

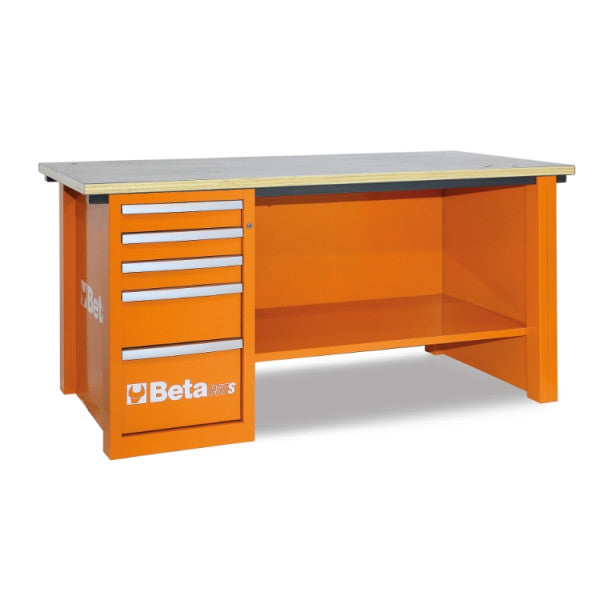

Steel-framed MasterCargo workbench designed for workshop environments with a multi-ply worktop coated in plastic laminate for impact and chemical resistance. The unit includes a one-drawer cabinet with five drawers (three 3.54 in high, one 7.09 in high, one 11.02 in high) and drawer footprint approximately 23.15 x 14.45 in, each running on ball-bearing slides for smooth load handling. Centralized locking secures the drawer bank while the open bench bay accepts thermoformed trays and small parts organization. Worktop is prepared with three mounting holes to accept vice items 1599F/150 or 1599GI/150 (sold separately). Rated weight: 348.34 lb; suitable for general assembly, maintenance and heavy-duty tooling tasks.
Features:
• Model with one drawer cabinet
Drawer cabinet: five drawers, 588x367 mm, 3 90 mm high 1 180 mm and 1 280 mm high, with ball bearing slides.
Can accommodate thermoformed trays.
Centralized lock.
Multi-ply worktop, coated in plastic laminate with three holes for vice item 1599F/150 - 1599GI/150, to be ordered separately.
Specifications
| Materials | Powder-coated steel frame; multi-ply worktop with plastic laminate surface |
| Worktop finish | Plastic laminate (pre-drilled with three holes for vice mounting) |
| Drawer internal footprint | Approximately 23.15 x 14.45 in (588 x 367 mm) |
| Drawer configuration | Five drawers: three at 3.54 in high, one at 7.09 in high and one at 11.02 in high |
| Drawer slides | Ball-bearing slides for each drawer (full-extension compatible with thermoformed trays) |
| Locking | Centralized lock for drawer bank |
| Tray and vice compatibility | Compatible with thermoformed trays; vice mounting for items 1599F/150 or 1599GI/150 (sold separately) |
| Overall footprint (L×D×H) | Approx. 74.80 × 27.56 × 31.10 in (1900 × 700 × 790 mm) |
| Net weight | Approx. 348.34 lb (158 kg) |
| Available finishes | RAL 2011 (orange) and RAL 7016 (anthracite grey) |
Dimensions
![]()
Kindly Note : This item is "Made to Order" and lead time is about 4-12 weeks
Steel-framed MasterCargo workbench designed for workshop environments with a multi-ply worktop coated in plastic laminate for impact and chemical resistance. The unit includes a one-drawer cabinet with five drawers (three 3.54 in high, one 7.09 in high, one 11.02 in high) and drawer footprint approximately 23.15 x 14.45 in, each running on ball-bearing slides for smooth load handling. Centralized locking secures the drawer bank while the open bench bay accepts thermoformed trays and small parts organization. Worktop is prepared with three mounting holes to accept vice items 1599F/150 or 1599GI/150 (sold separately). Rated weight: 348.34 lb; suitable for general assembly, maintenance and heavy-duty tooling tasks.
Features:
• Model with one drawer cabinet
Drawer cabinet: five drawers, 588x367 mm, 3 90 mm high 1 180 mm and 1 280 mm high, with ball bearing slides.
Can accommodate thermoformed trays.
Centralized lock.
Multi-ply worktop, coated in plastic laminate with three holes for vice item 1599F/150 - 1599GI/150, to be ordered separately.
Specifications
| Materials | Powder-coated steel frame; multi-ply worktop with plastic laminate surface |
| Worktop finish | Plastic laminate (pre-drilled with three holes for vice mounting) |
| Drawer internal footprint | Approximately 23.15 x 14.45 in (588 x 367 mm) |
| Drawer configuration | Five drawers: three at 3.54 in high, one at 7.09 in high and one at 11.02 in high |
| Drawer slides | Ball-bearing slides for each drawer (full-extension compatible with thermoformed trays) |
| Locking | Centralized lock for drawer bank |
| Tray and vice compatibility | Compatible with thermoformed trays; vice mounting for items 1599F/150 or 1599GI/150 (sold separately) |
| Overall footprint (L×D×H) | Approx. 74.80 × 27.56 × 31.10 in (1900 × 700 × 790 mm) |
| Net weight | Approx. 348.34 lb (158 kg) |
| Available finishes | RAL 2011 (orange) and RAL 7016 (anthracite grey) |
Dimensions
