KT-N80

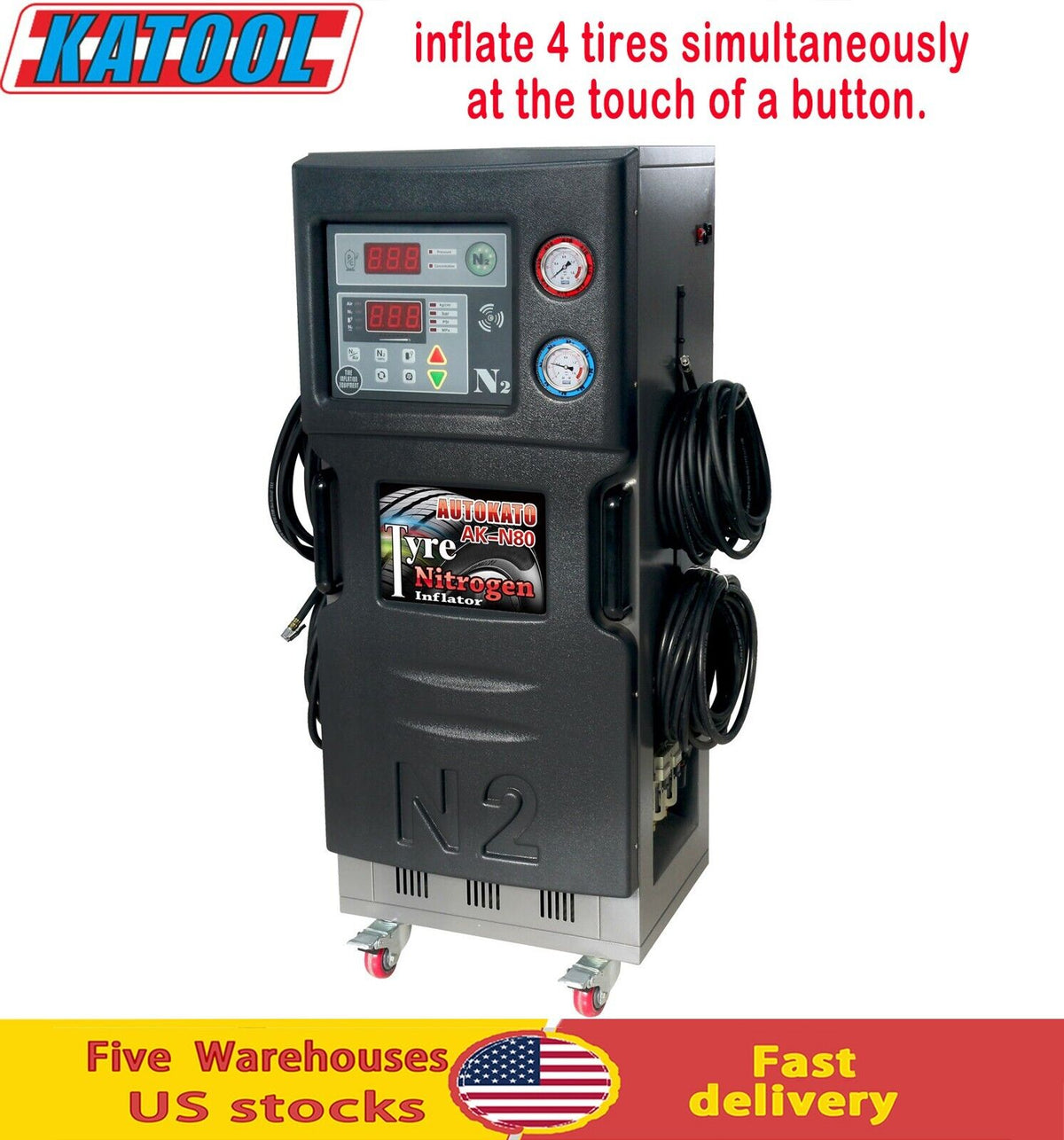

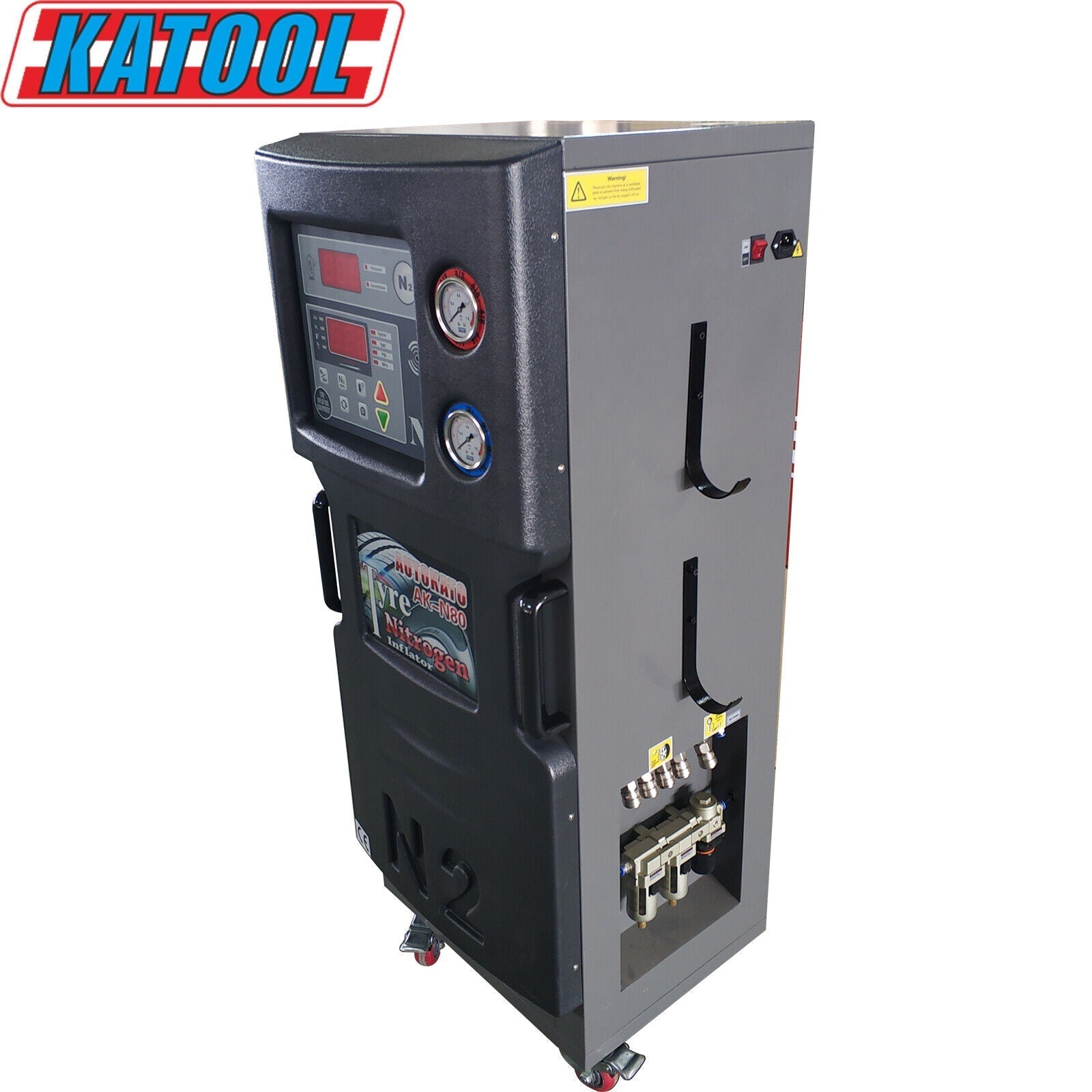

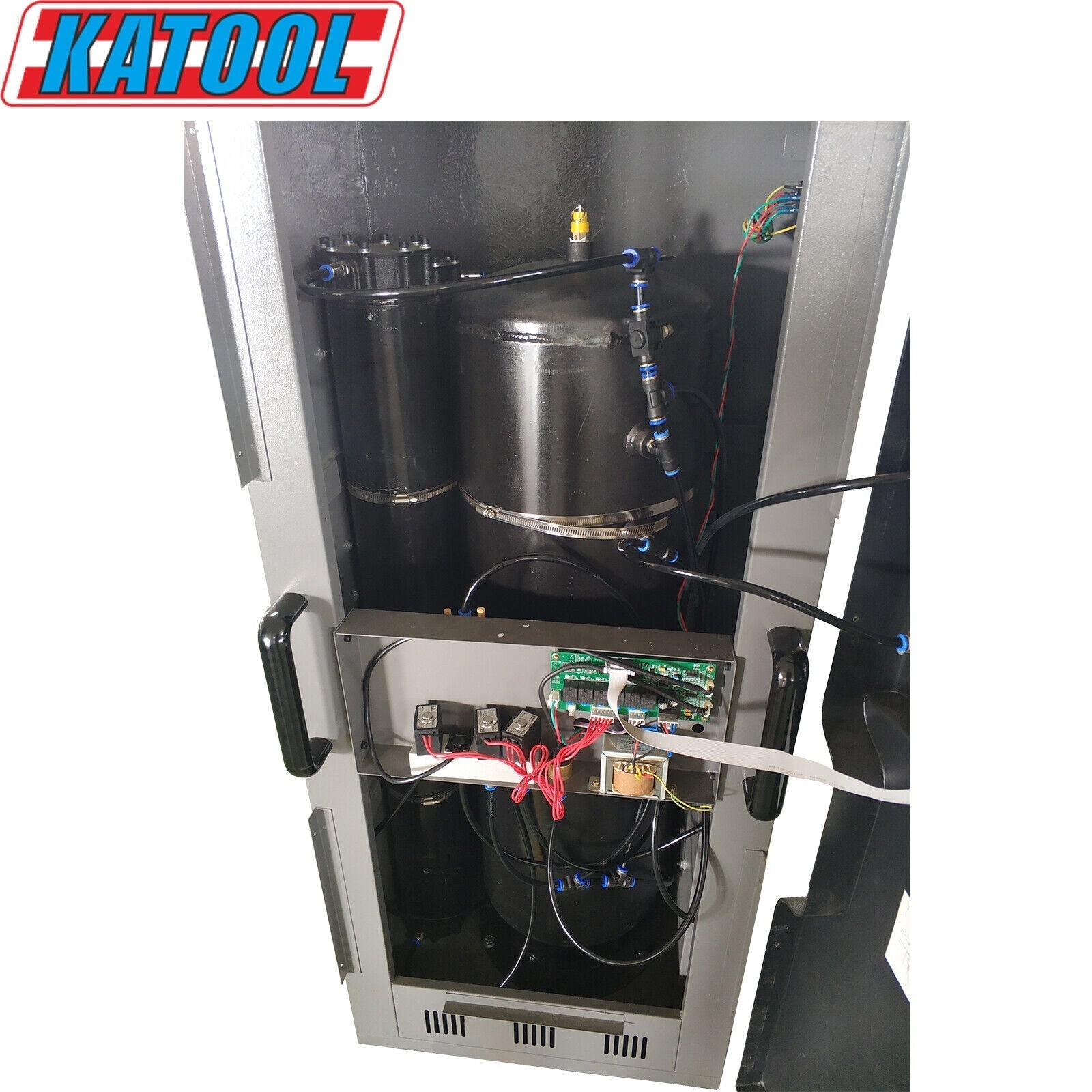

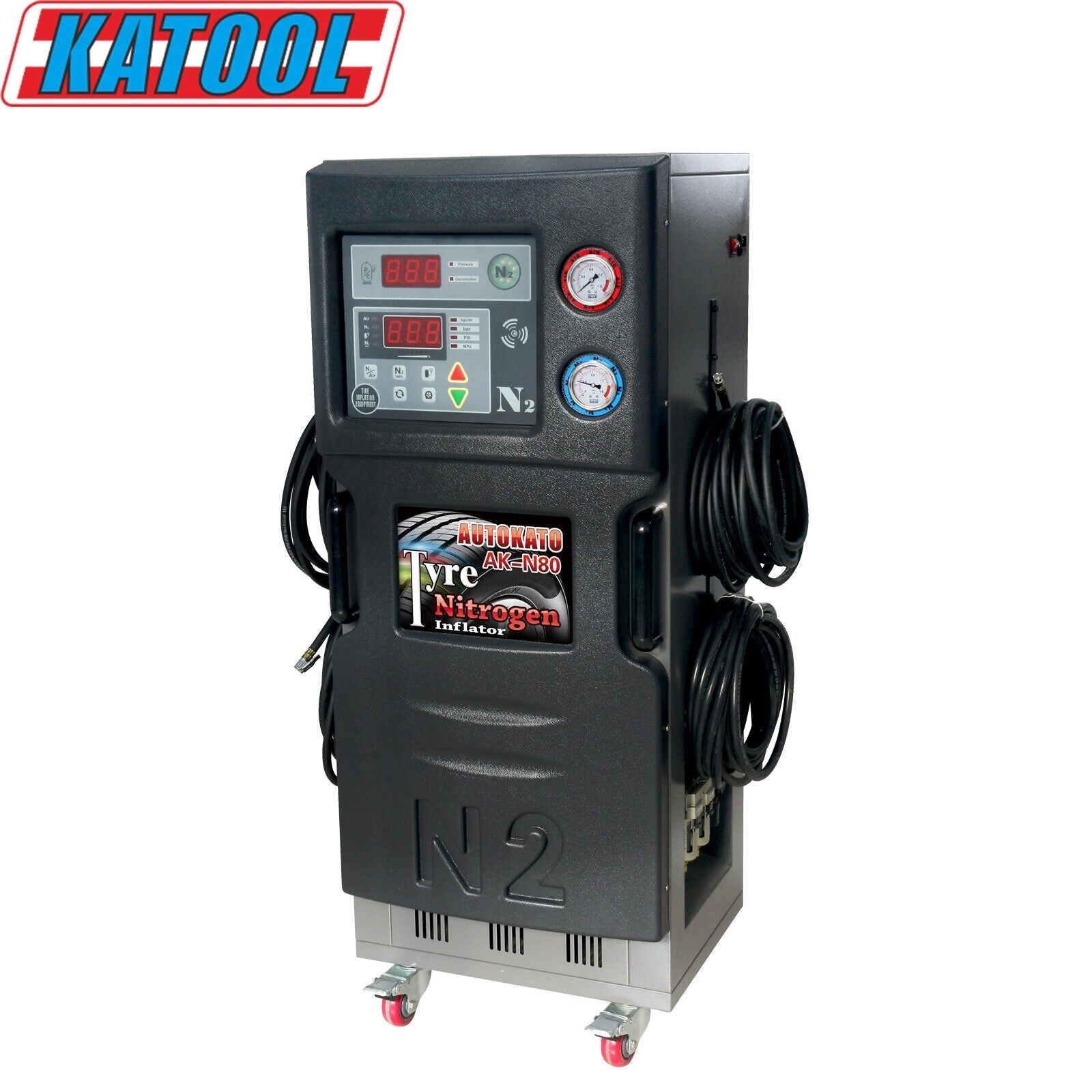

Heavy-duty nitrogen generation and controlled inflation deliver consistent tire pressures for cars and vans in a workshop setting. Dual-voltage power options (AC 110V 60Hz and 220V 1PH 60Hz) support common shop electrical supplies and reduce installation complexity. Onboard 70 L storage tank supplies steady flow for sequential inflation and reduces compressor run-time. Adjustable nitrogen purity from 95% to 99.5% and automatic vacuuming before fill maintain gas quality for extended tire life. Integrated pressure sensor and dedicated control chip provide ±1 psi accuracy across a 5–145 psi measurement range with LED readout. Input pressure tolerance up to 10 bar and regulated output below 8 bar accommodate standard passenger and light commercial tires. Simple pipe connection and automatic preset inflation streamline workshop workflow and reduce operator steps. Rugged metal enclosure and modular service access points enable straightforward maintenance in busy garage environments. Designed to operate between −20°C and +70°C and supplied with basic service interfaces for direct integration into existing tire service stations. Backed by a 12-month parts warranty and freight shipping guidance, the unit is suited for commercial garage installation.
Features
- All hydraulic power system to work on all car wheels, Elegant appearance, high efficiency and purity nitrogen generation
- Professional energy efficiency management better saves energy
- Adjustable nitrogen generation purity( efficiency) can meet the needs of all users
- When pipe is connected to tire, inflate the pre-set pressure automatically and precisely. Safe, precise and convenient operation
- Automatically vacuumize and inflate the tires which are to be inflated for the first time, thus guaranteeing the nitrogen purity inside

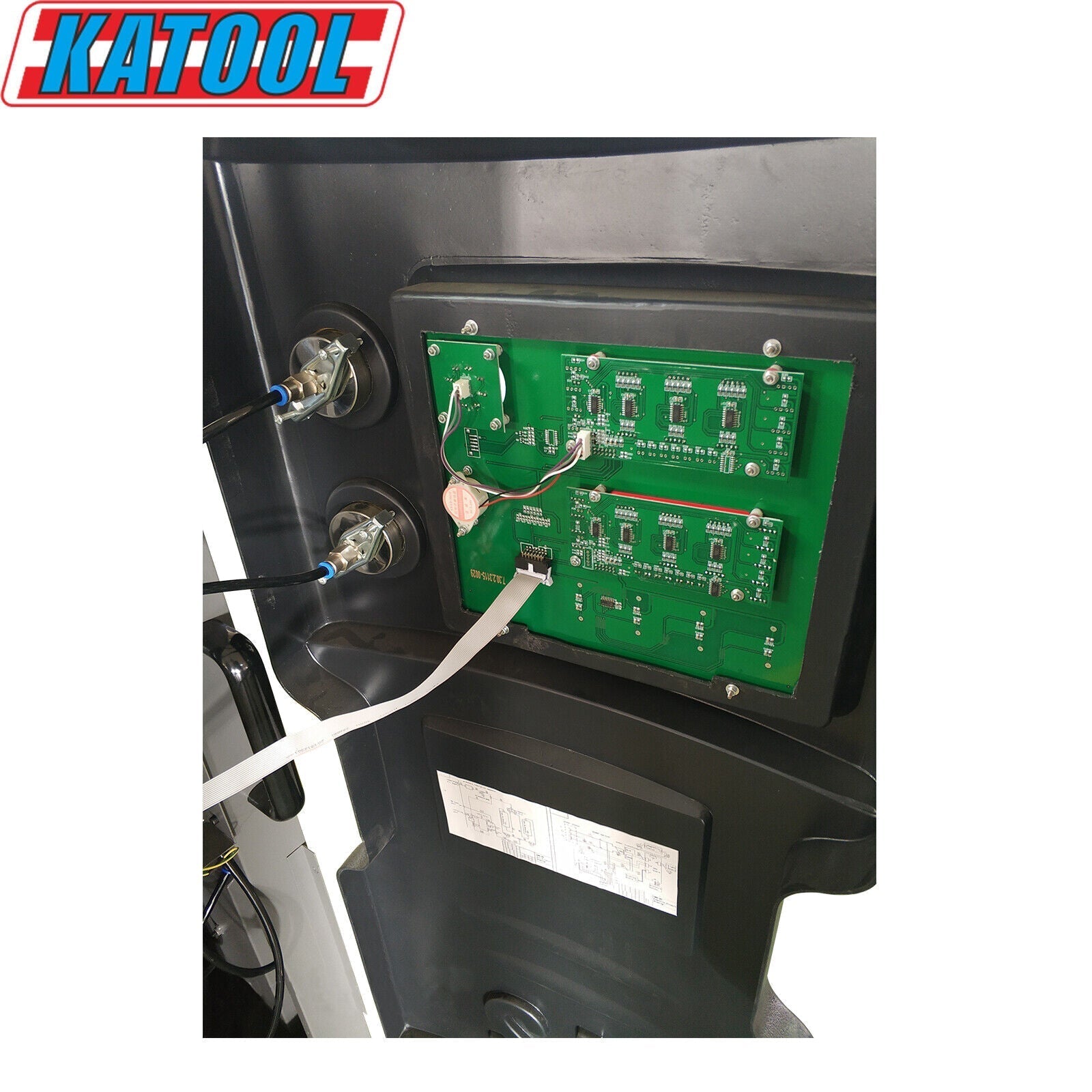

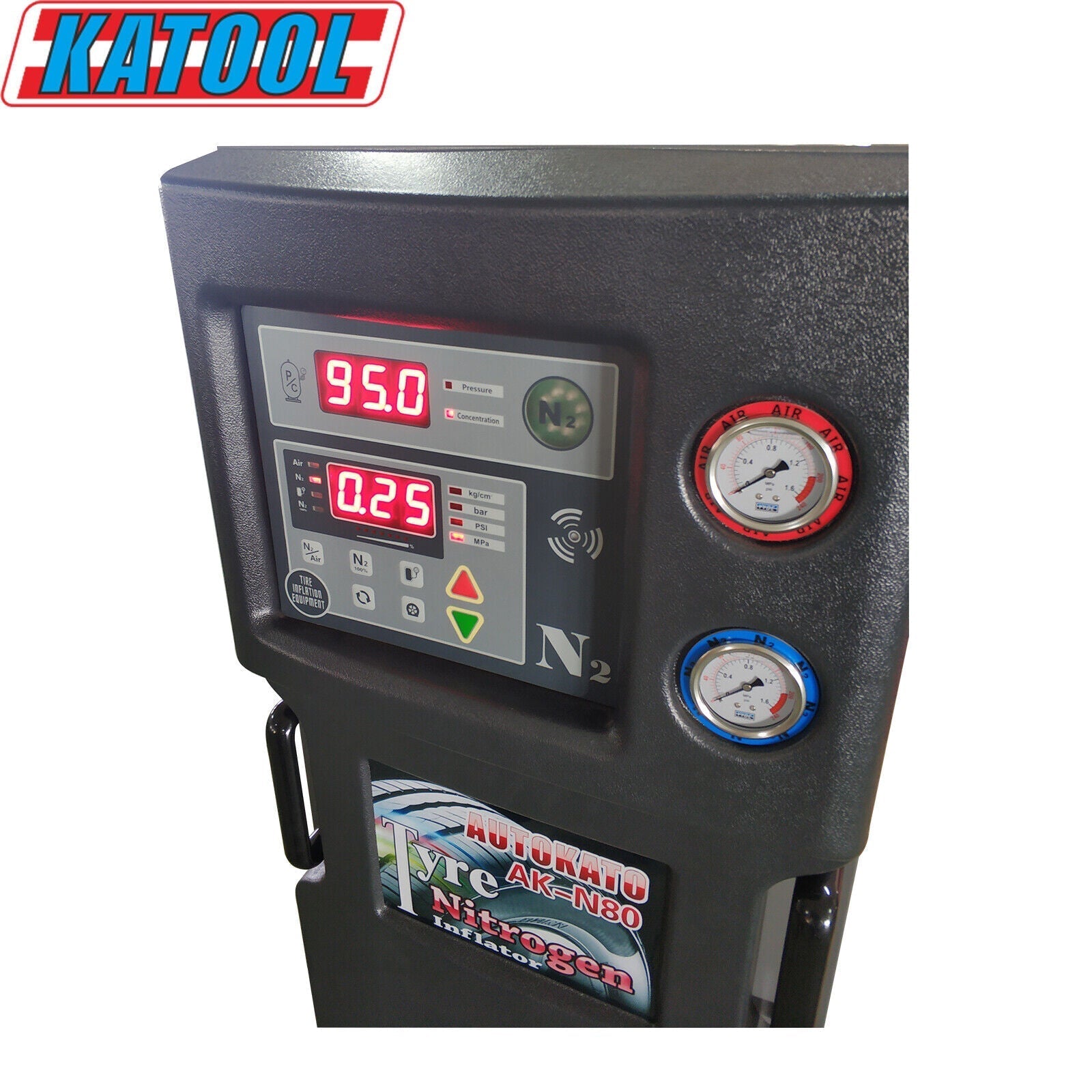

- Dedicated chip control, precise pressure sensor monitor, safe, reliable and accurate
- Adopt special mode to manage 0 pressure tire
Specifications
|
Vehicle applicable:
|
Car & Van
|
|
Power supply:
|
AC110V 60HZ
|
|
Power consumption:
|
30W
|
|
Power supply:
|
220V / 1PH / 60HZ
|
|
Nitrogen purity :
|
95%-99.5%
|
|
Input pressure :
|
≤10 Bar/1 MPa
|
|
Output pressure:
|
＜8 Bar / 0.8 MPa
|
|
Working temperature :
|
–20℃～+70℃
|
|
Measurement range :
|
5～145psi /0.3～10Bar |
| Precision : | ±1 Psi /0.07 Bar |
| Display mode: | LED display |
| Tank size | 70L |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
Heavy-duty nitrogen generation and controlled inflation deliver consistent tire pressures for cars and vans in a workshop setting. Dual-voltage power options (AC 110V 60Hz and 220V 1PH 60Hz) support common shop electrical supplies and reduce installation complexity. Onboard 70 L storage tank supplies steady flow for sequential inflation and reduces compressor run-time. Adjustable nitrogen purity from 95% to 99.5% and automatic vacuuming before fill maintain gas quality for extended tire life. Integrated pressure sensor and dedicated control chip provide ±1 psi accuracy across a 5–145 psi measurement range with LED readout. Input pressure tolerance up to 10 bar and regulated output below 8 bar accommodate standard passenger and light commercial tires. Simple pipe connection and automatic preset inflation streamline workshop workflow and reduce operator steps. Rugged metal enclosure and modular service access points enable straightforward maintenance in busy garage environments. Designed to operate between −20°C and +70°C and supplied with basic service interfaces for direct integration into existing tire service stations. Backed by a 12-month parts warranty and freight shipping guidance, the unit is suited for commercial garage installation.
Features
- All hydraulic power system to work on all car wheels, Elegant appearance, high efficiency and purity nitrogen generation
- Professional energy efficiency management better saves energy
- Adjustable nitrogen generation purity( efficiency) can meet the needs of all users
- When pipe is connected to tire, inflate the pre-set pressure automatically and precisely. Safe, precise and convenient operation
- Automatically vacuumize and inflate the tires which are to be inflated for the first time, thus guaranteeing the nitrogen purity inside
- Dedicated chip control, precise pressure sensor monitor, safe, reliable and accurate
- Adopt special mode to manage 0 pressure tire
Specifications
| Vehicle applicable: | Car & Van |
| Power supply: | AC110V 60HZ |
| Power consumption: | 30W |
| Power supply: | 220V / 1PH / 60HZ |
| Nitrogen purity : | 95%-99.5% |
| Input pressure : | ≤10 Bar/1 MPa |
| Output pressure: | ＜8 Bar / 0.8 MPa |
| Working temperature : | –20℃～+70℃ |
| Measurement range : | 5～145psi /0.3～10Bar |
| Precision : | ±1 Psi /0.07 Bar |
| Display mode: | LED display |
| Tank size | 70L |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
