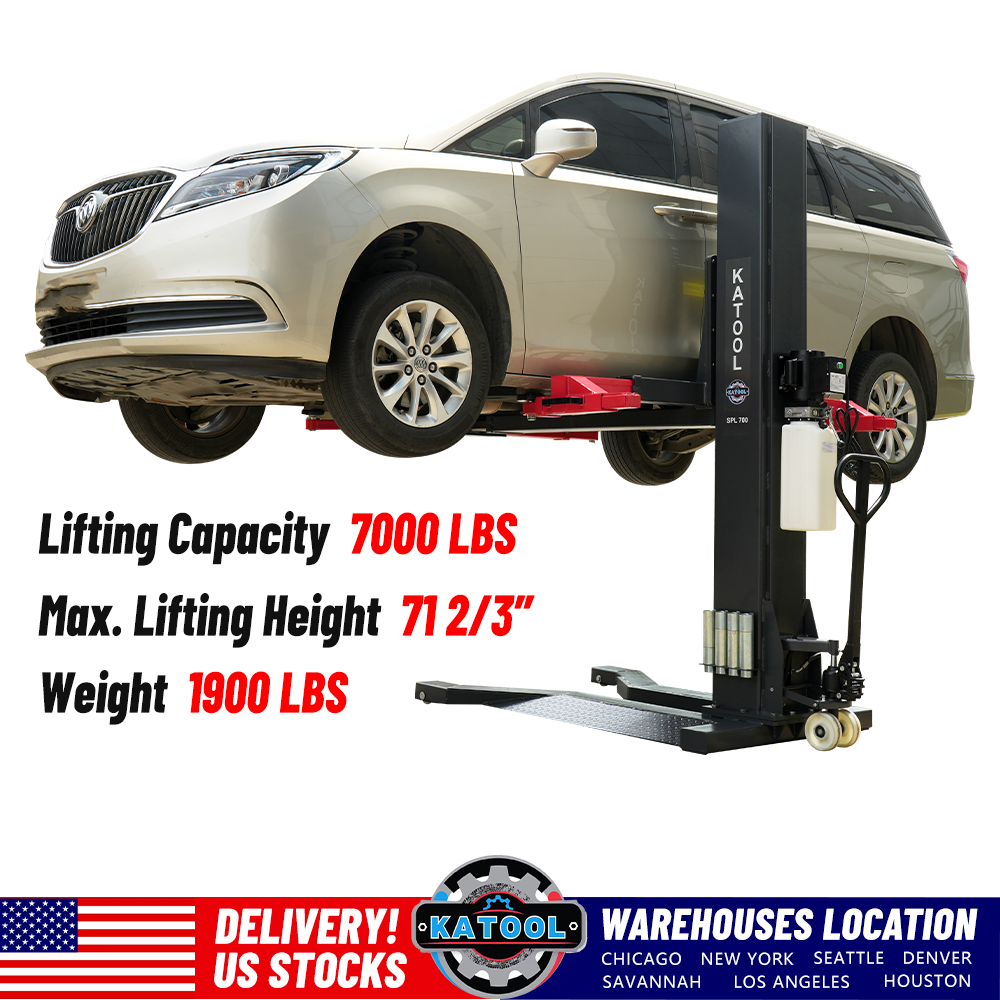

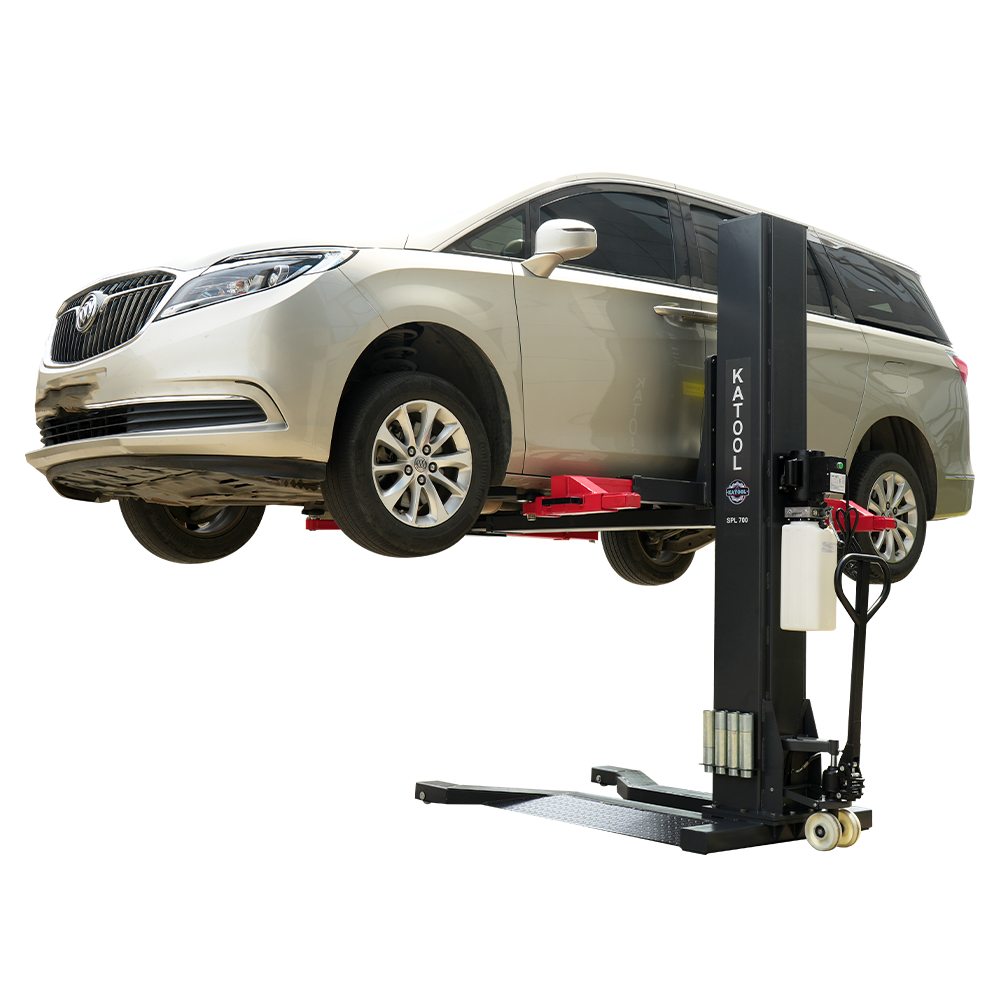

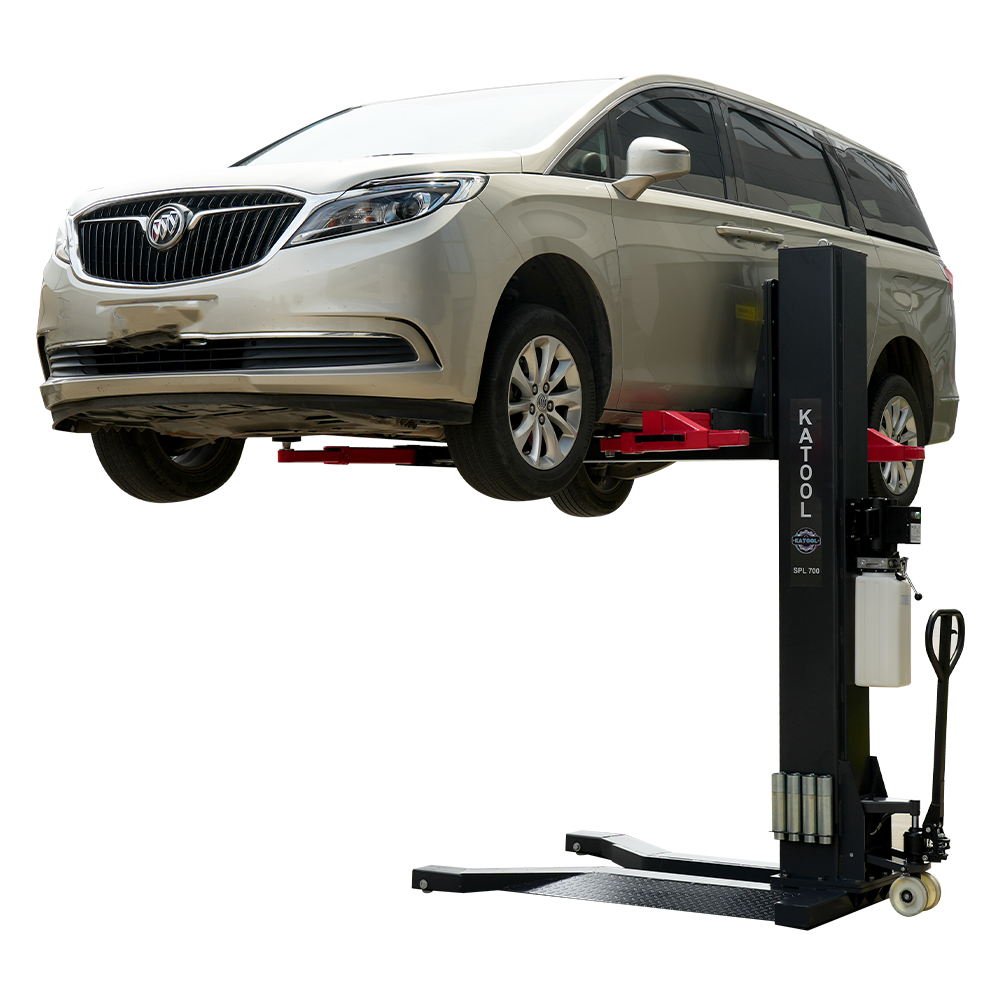

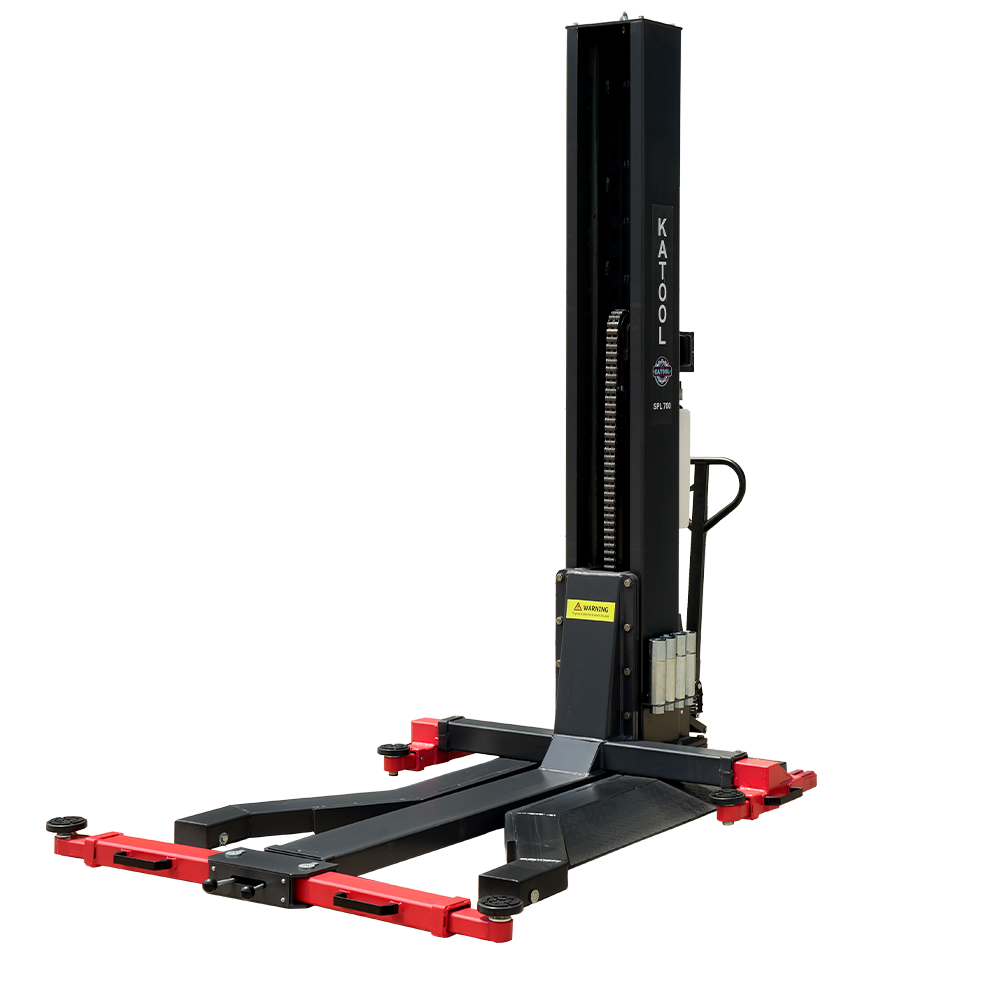

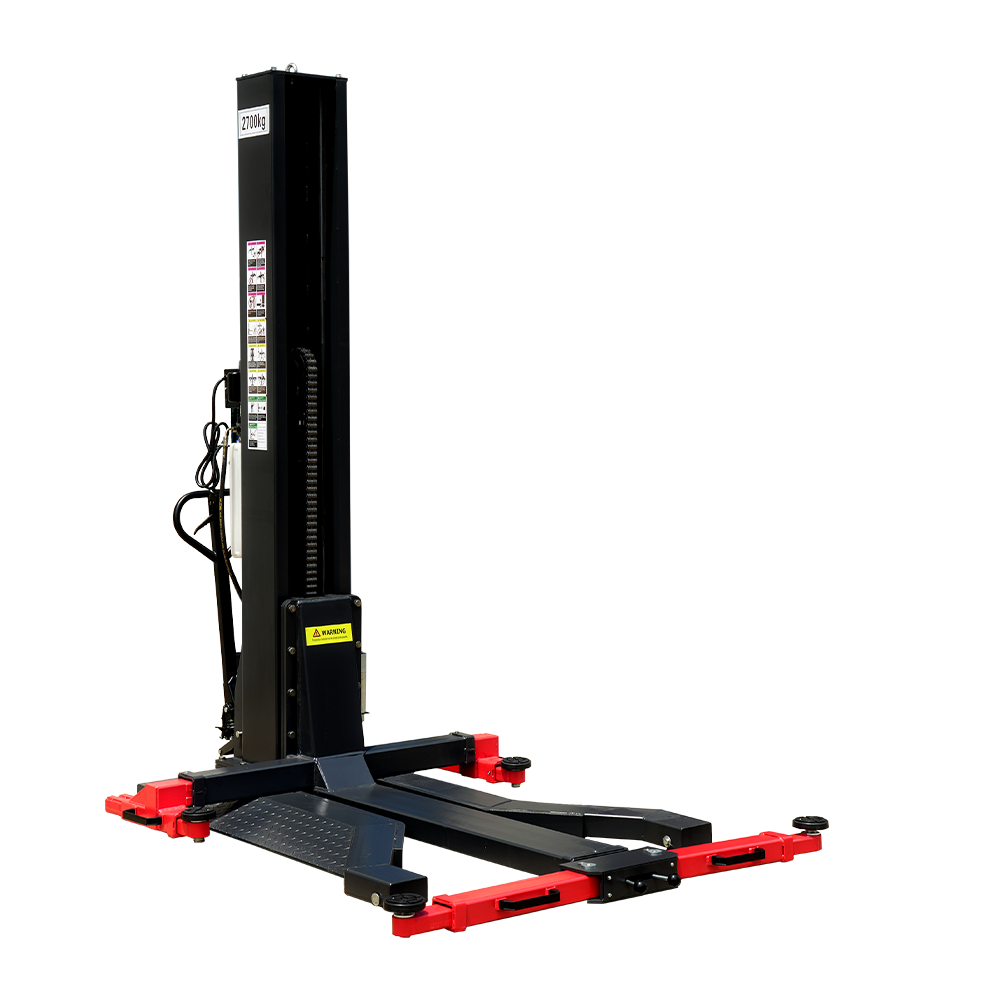

KT-SPL 700

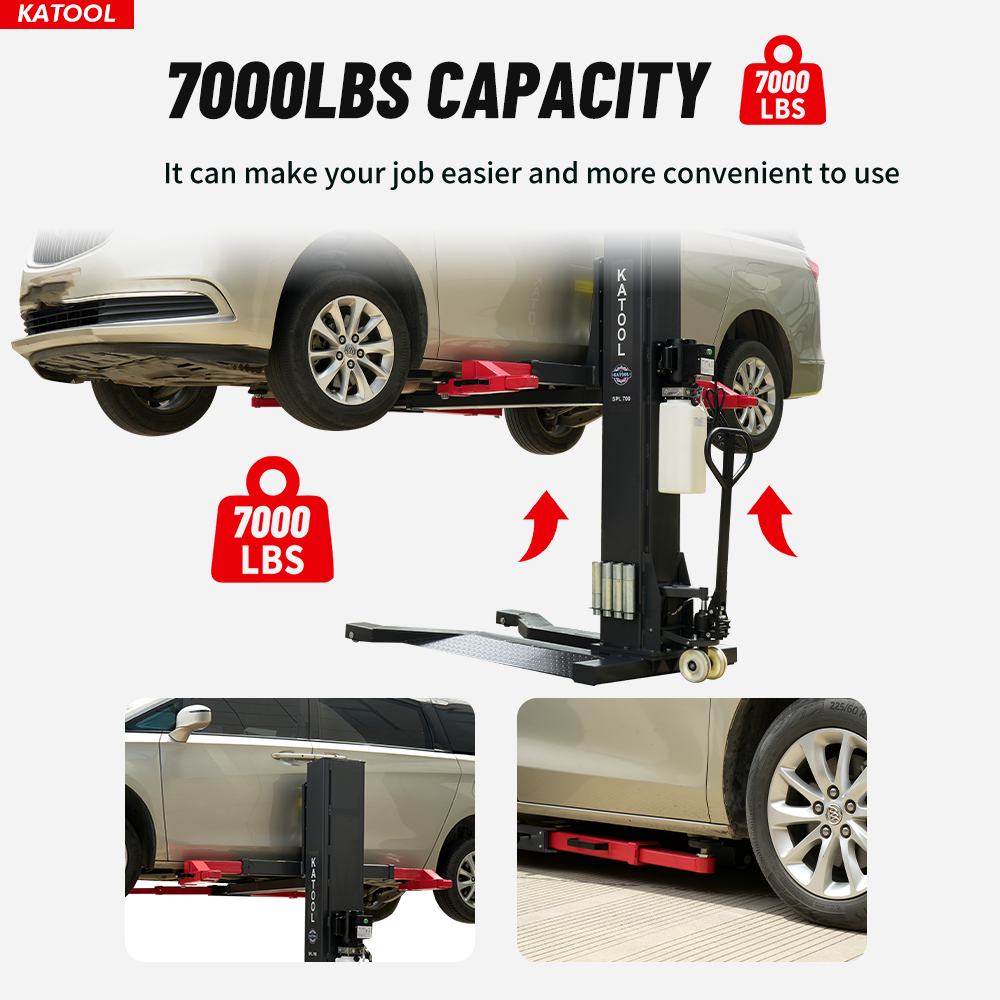

A heavy-duty single-post vehicle lift engineered for garage and shop use, optimized for space-limited environments. Steel column and alloy-steel lifting arms provide structural rigidity for repeated lifting cycles. Hydraulic drive on standard 110 V power delivers controlled ascent and descent for safe maintenance access. Rated for 7,000 lb capacity, it supports cars, SUVs and many light trucks with stable automatic safety locks. Low-profile drive-on arms and adjustable lifting pads accommodate low-clearance vehicles and varied pad positions. Caster-mounted base and compact footprint enable repositioning and efficient bay layout in workshops. Max lift height reaches approximately 72 inches to allow full-underbody access for brakes, suspension and tire service. Hydraulic fluid capacity and motor specifications match standard shop service routines and require a 30 A breaker. Unit ships with multiple adapter heights and peg adapters for secure contact points and versatility. Initial offload requires a forklift or similar equipment; designed for professional installers and advanced home users.
Features
-
Heavy-Duty 7,000 lb (≈3,175 kg) lifting capacity — supports cars, SUVs, and light trucks.
-
Max lifting height: up to ~72 inches (≈6 ft).
-
Compact footprint design — ideal for shops with limited space.
-
Low-profile drive-on arms for low-clearance vehicles.
-

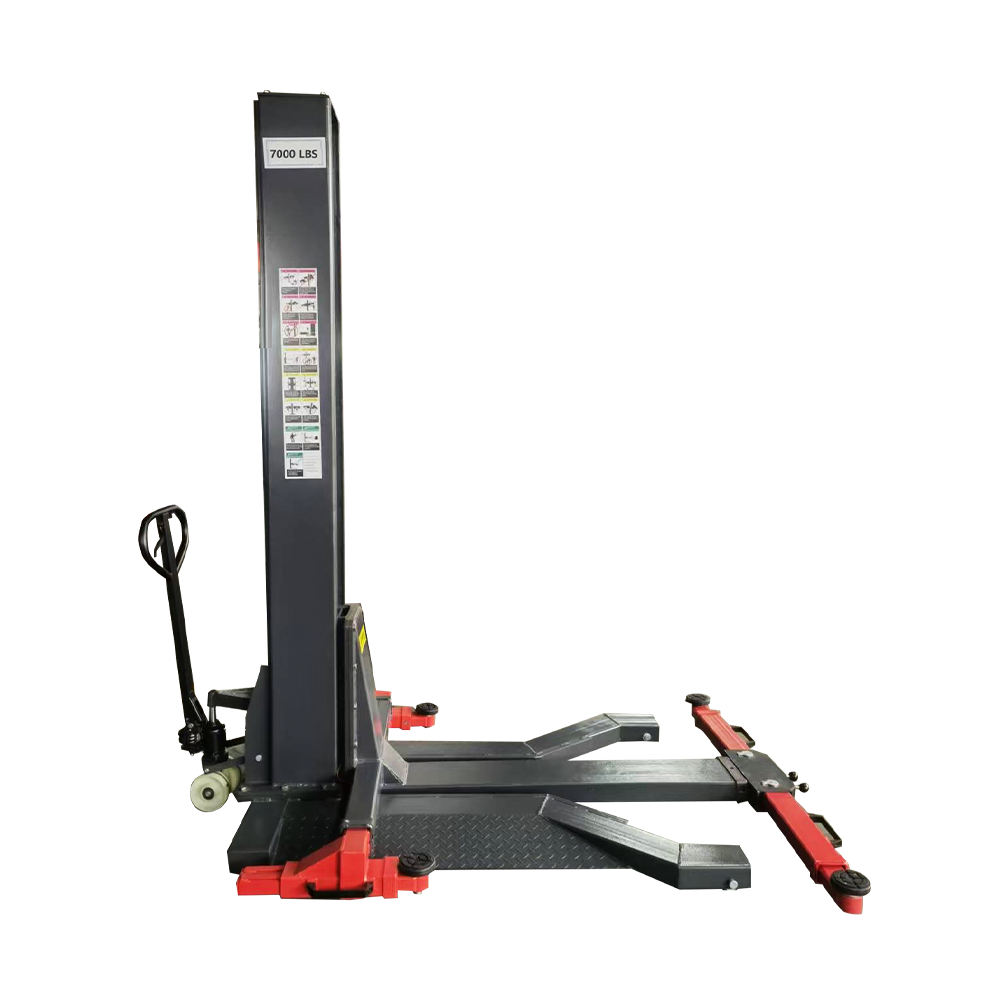

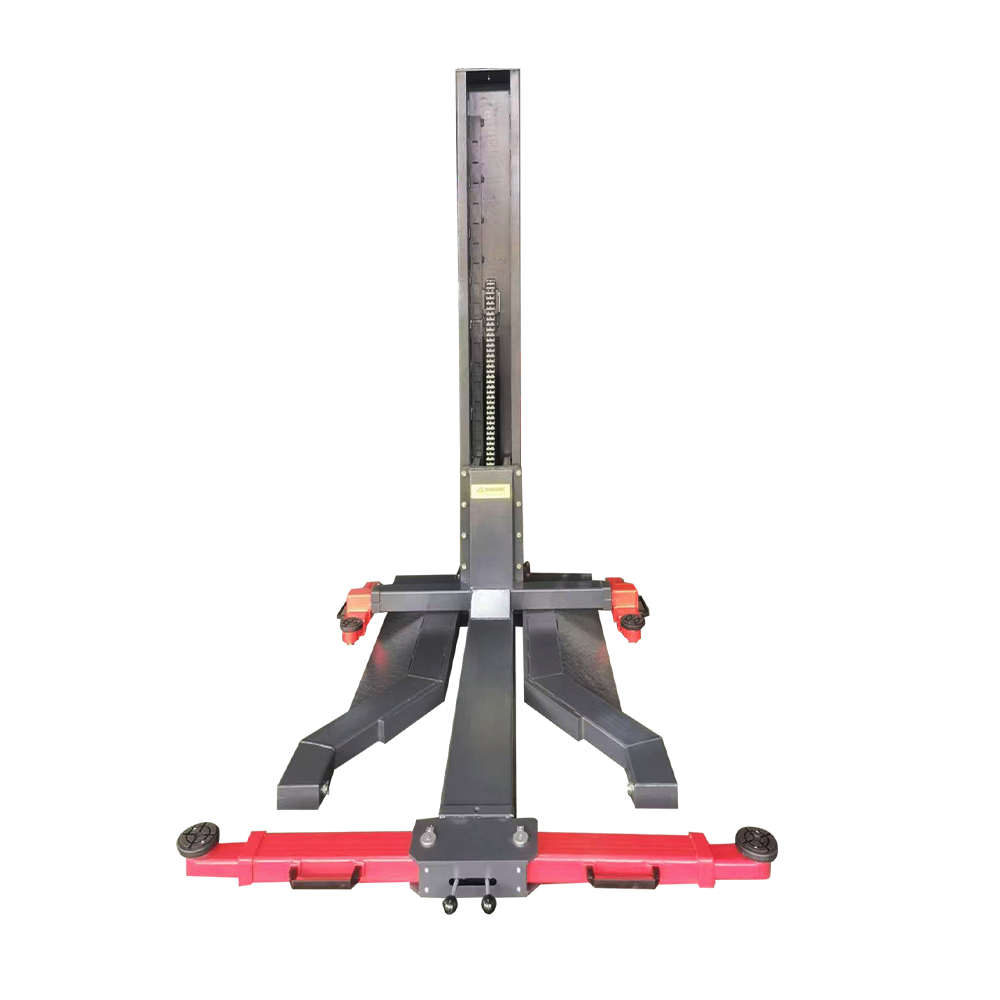

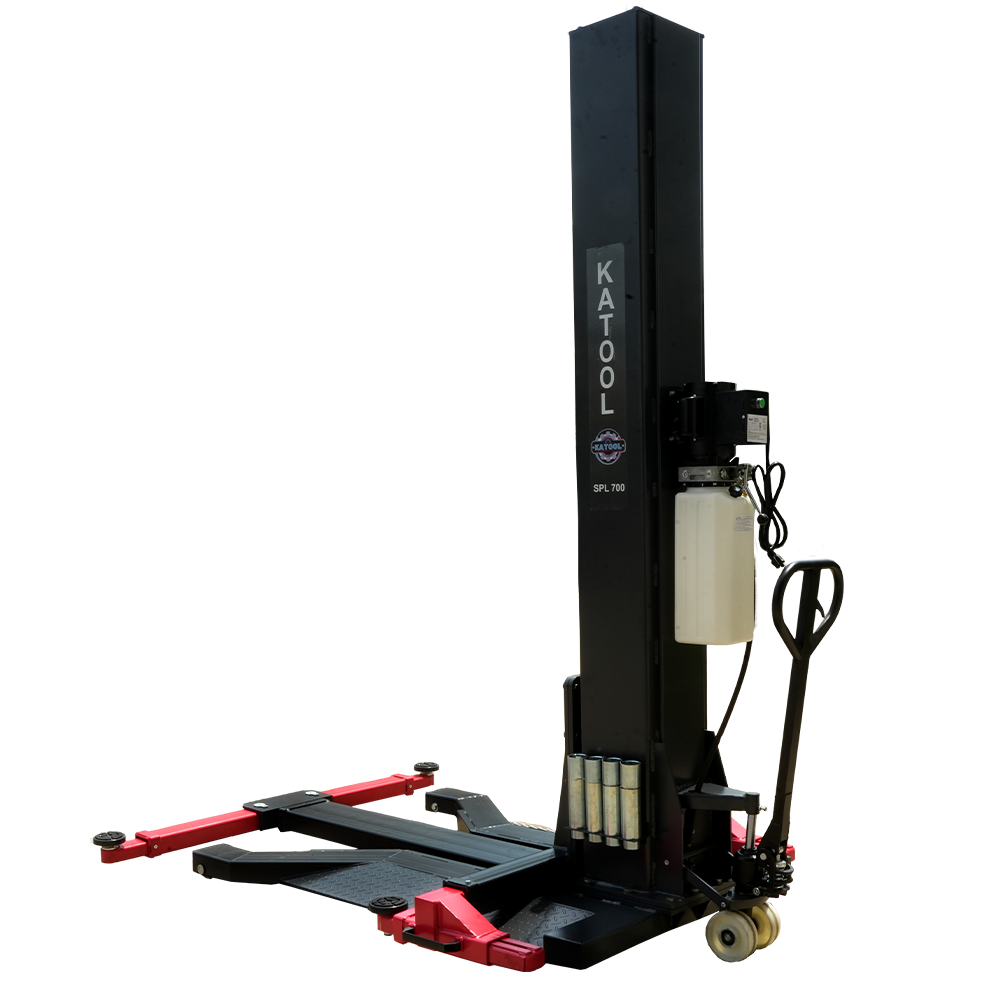

Portable single-post steel construction with caster wheels for easy repositioning.
-

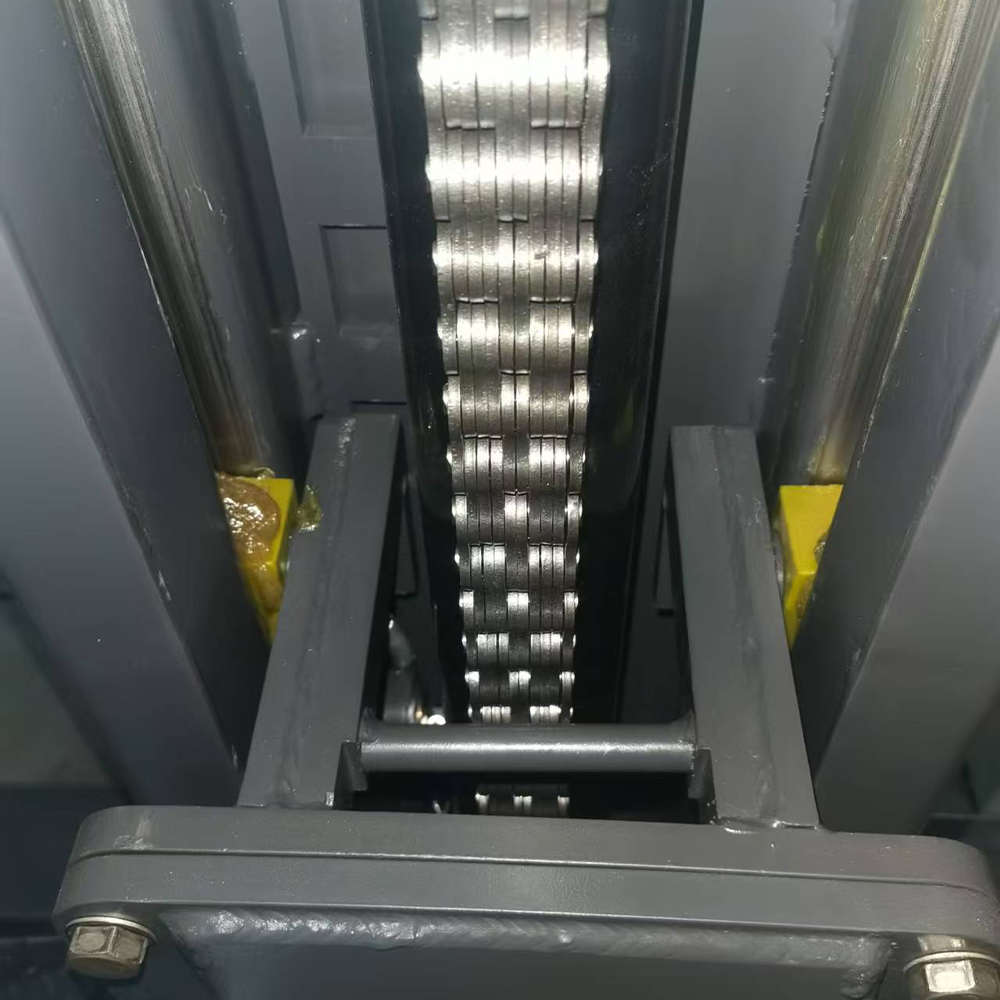

Stable automatic safety lock system ensures secure lifting at every height.
-
Heavy-duty alloy steel build for long-lasting durability.
-

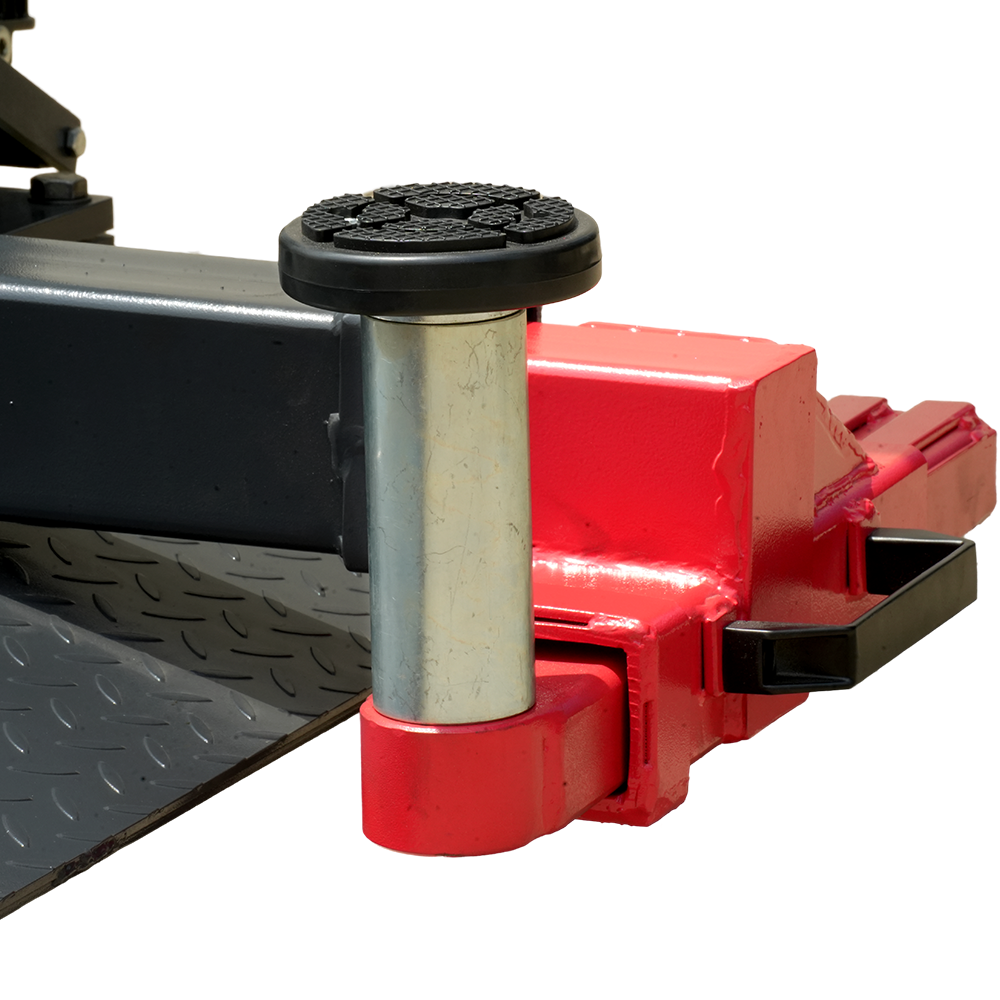

Adjustable lifting pad reach to fit a wide range of vehicle widths.
-
110 V single-phase motor (typically ~3 HP) — compatible with standard garage power.
-
Simple hydraulic operation for smooth lifting cycles.
-
Requires a forklift or similar equipment for initial offloading.

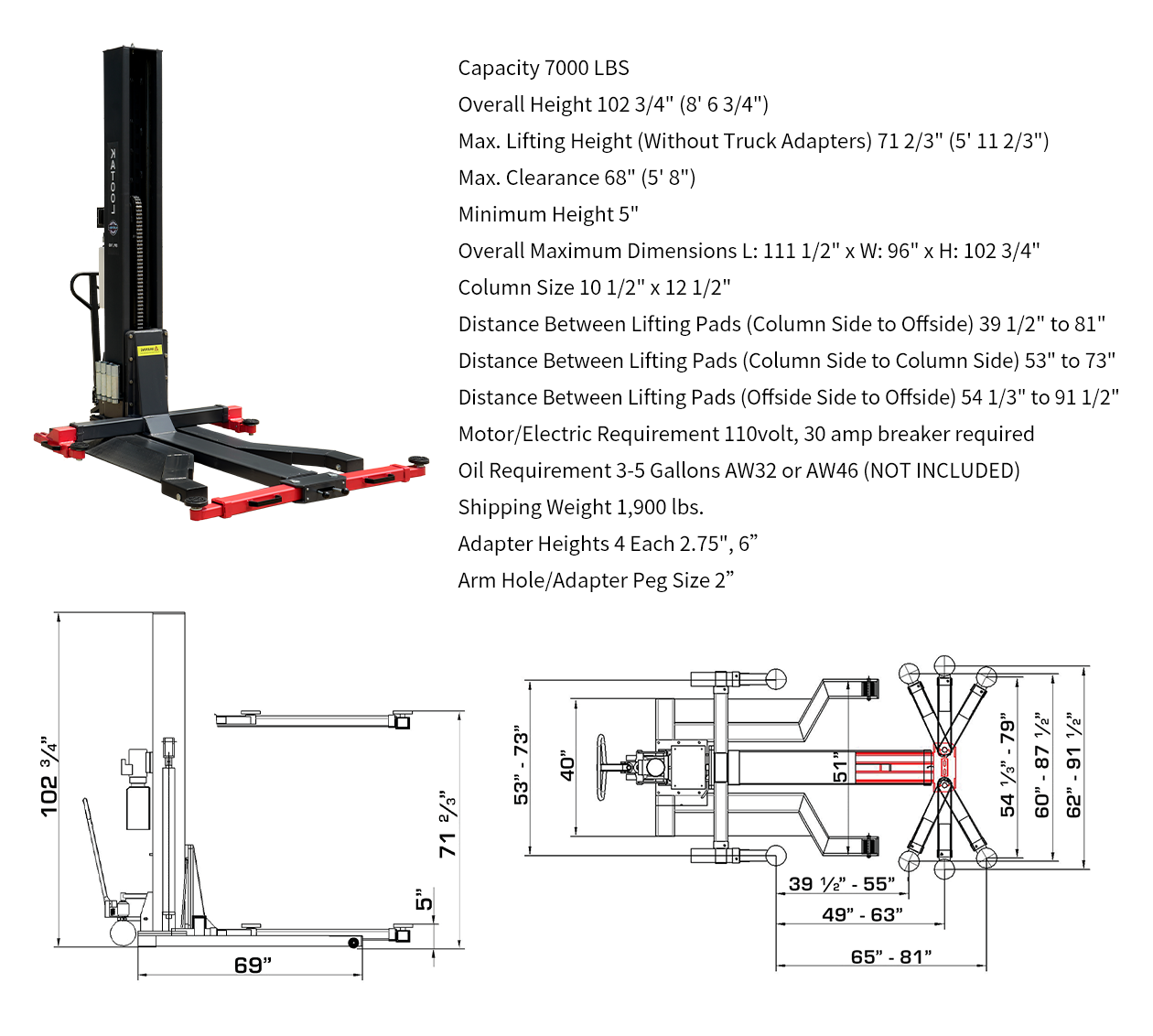

Specifications
| Lifting Capacity | 7,000 lbs (3,175 kg) |

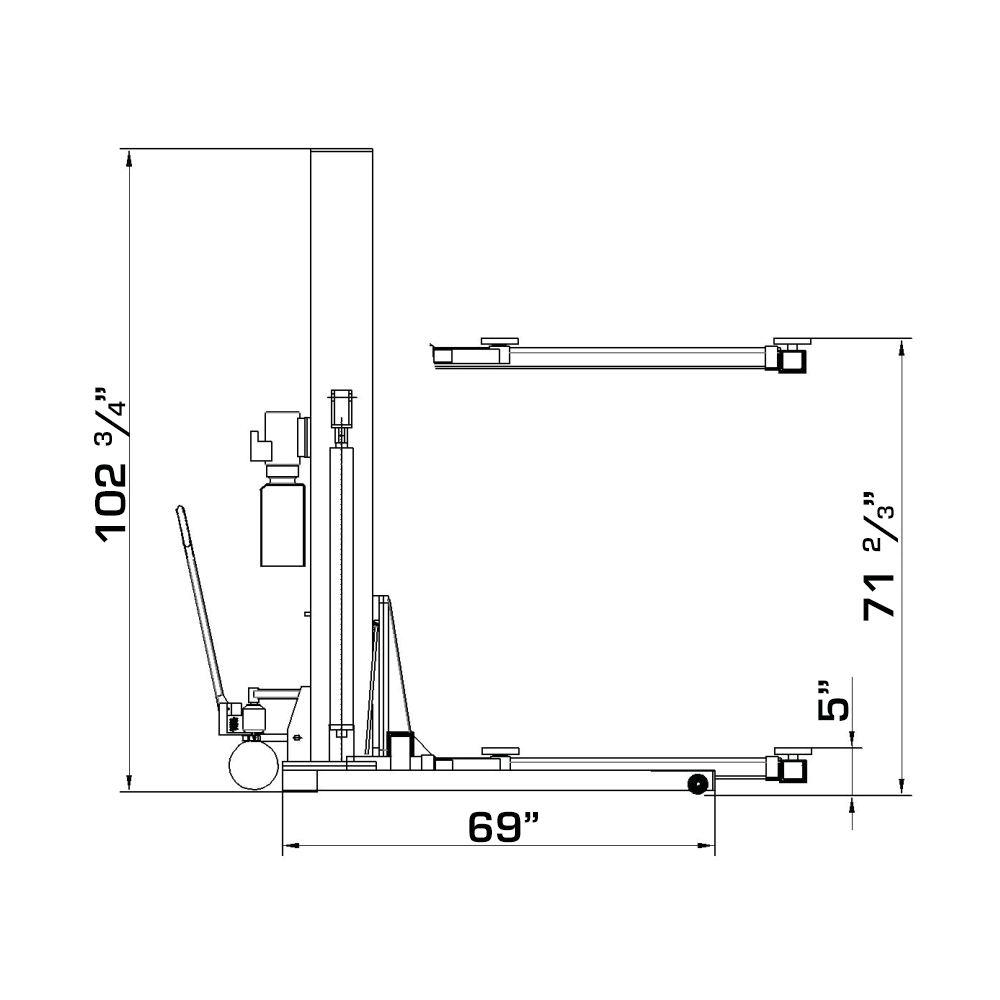

| Max Lifting Height (No Adapters) | 71 2/3″ (5′ 11 ⅔″) |
| Max Clearance Height | 68″ (5′ 8″) |
| Minimum Pad Height | 5″ |

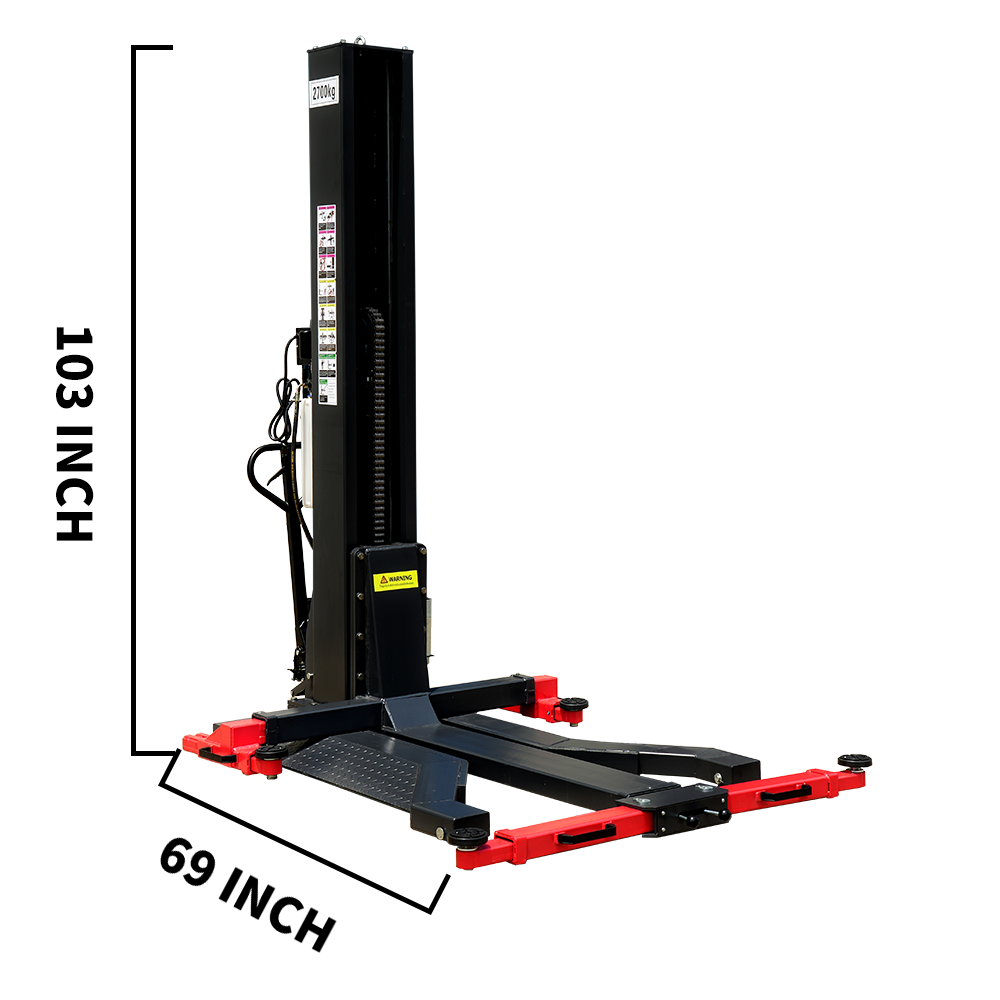

| Overall Height | 102 3/4″ (8′ 6 ¾″) |
| Overall Dimensions (L×W×H) | 111 1/2″ × 96″ × 102 3/4″ |
| Column Size | 10 1/2″ × 12 1/2″ |

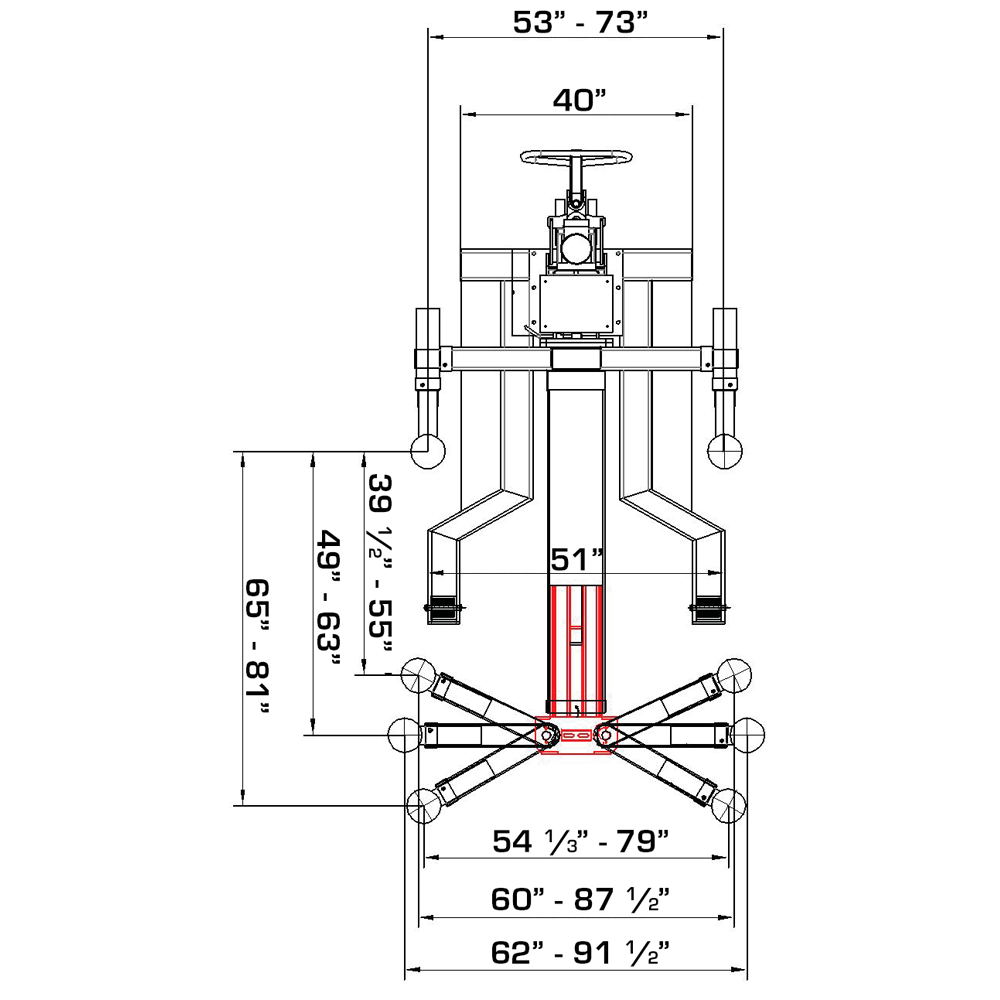

| Pad Distance (Column-Offside) | 39 1/2″ – 81″ |
| Pad Distance (Column-Column) | 53″ – 73″ |
| Pad Distance (Offside-Offside) | 54 1/3″ – 91 1/2″ |
| Motor/Electrical Requirement | 110 V, 30 A breaker |
| Hydraulic Fluid Requirement | 3 – 5 gal AW32 or AW46 (not included) |
| Shipping Weight | ~1,900 lbs |

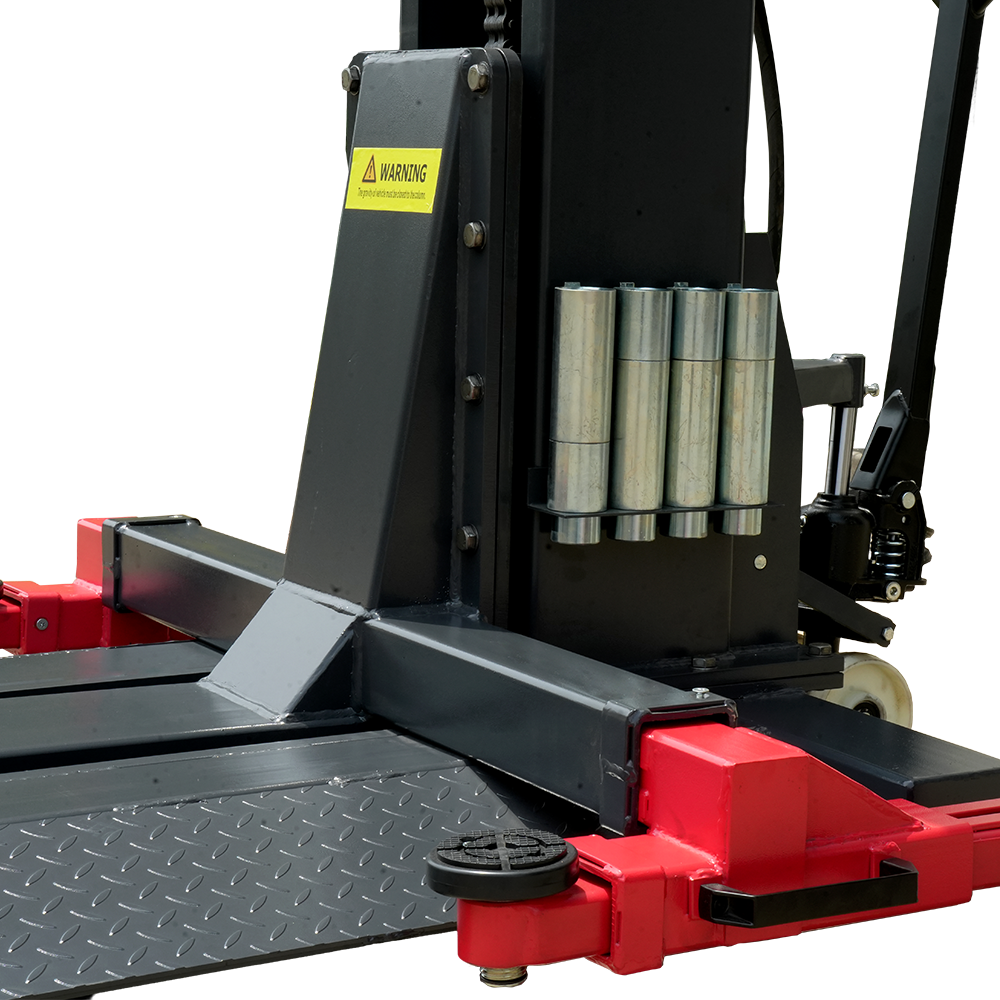

| Adapter Heights Included | (4) 2.75″ & (4) 6″ |
| Adapter Peg Size | 2″ |
| Power Type | 110 V hydraulic operation |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
