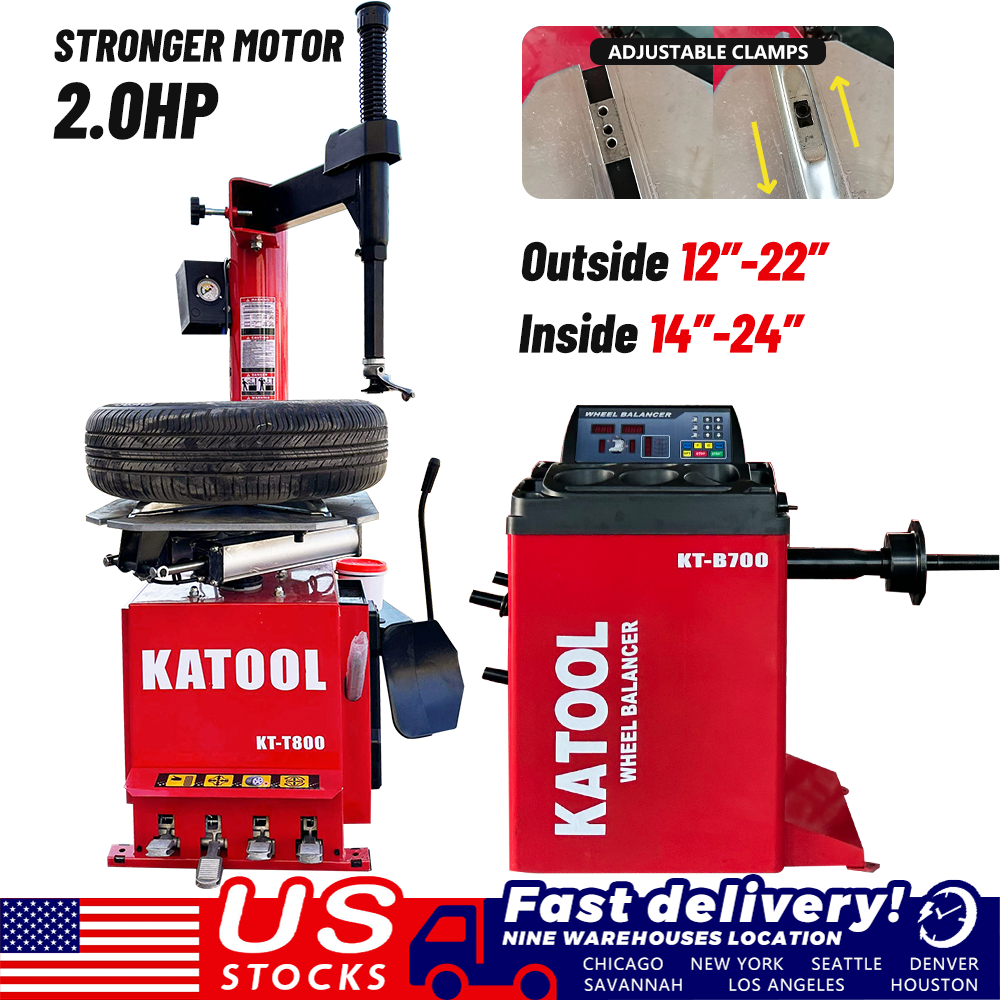

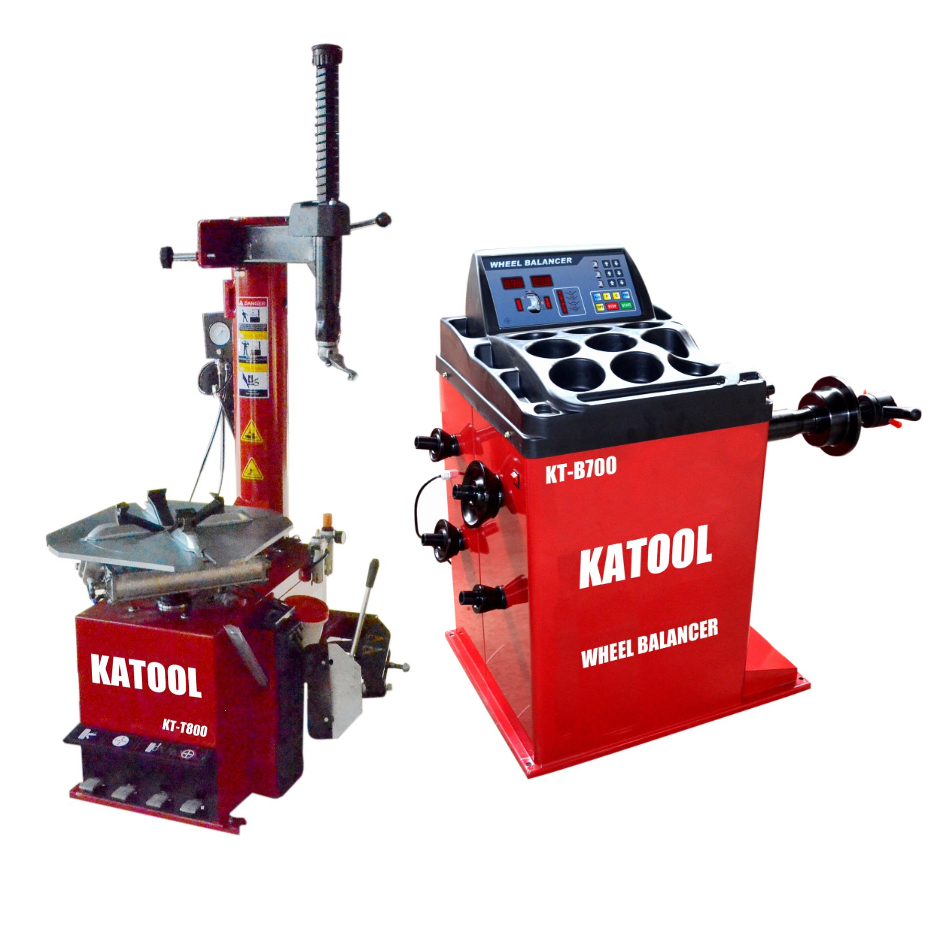

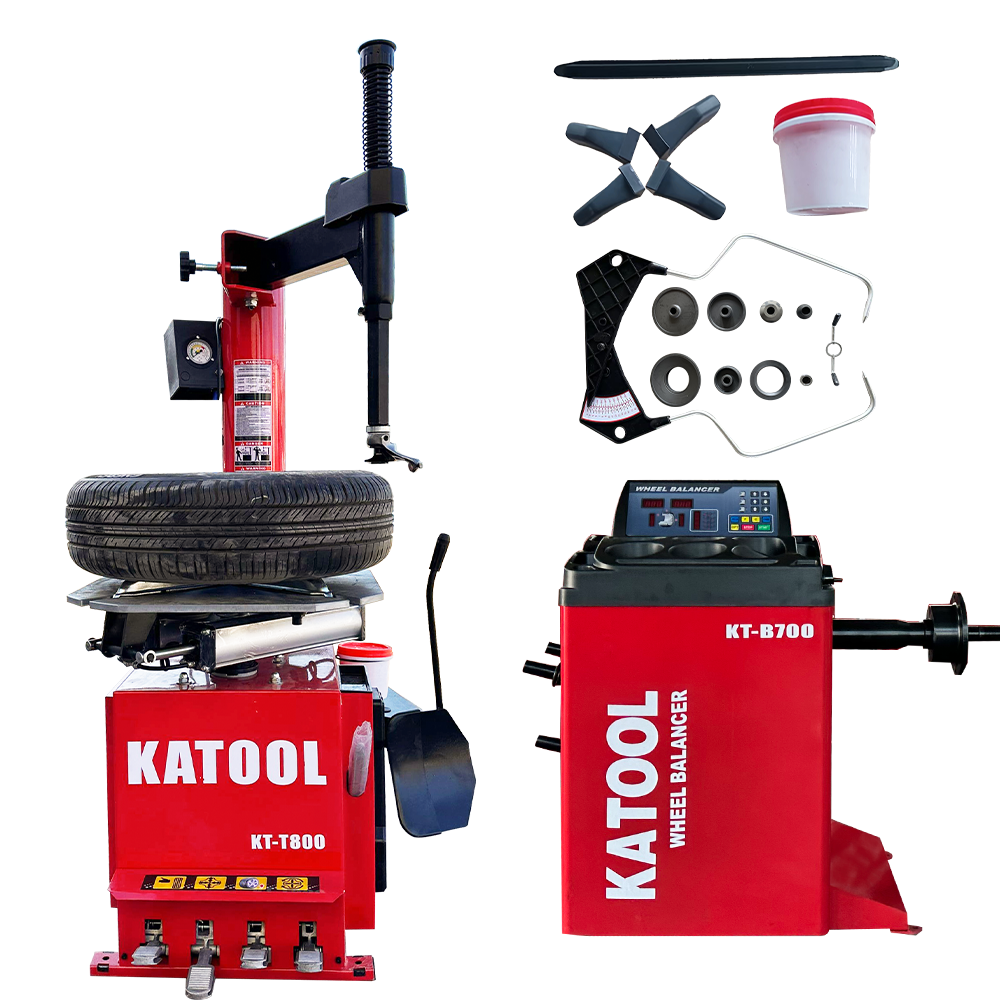

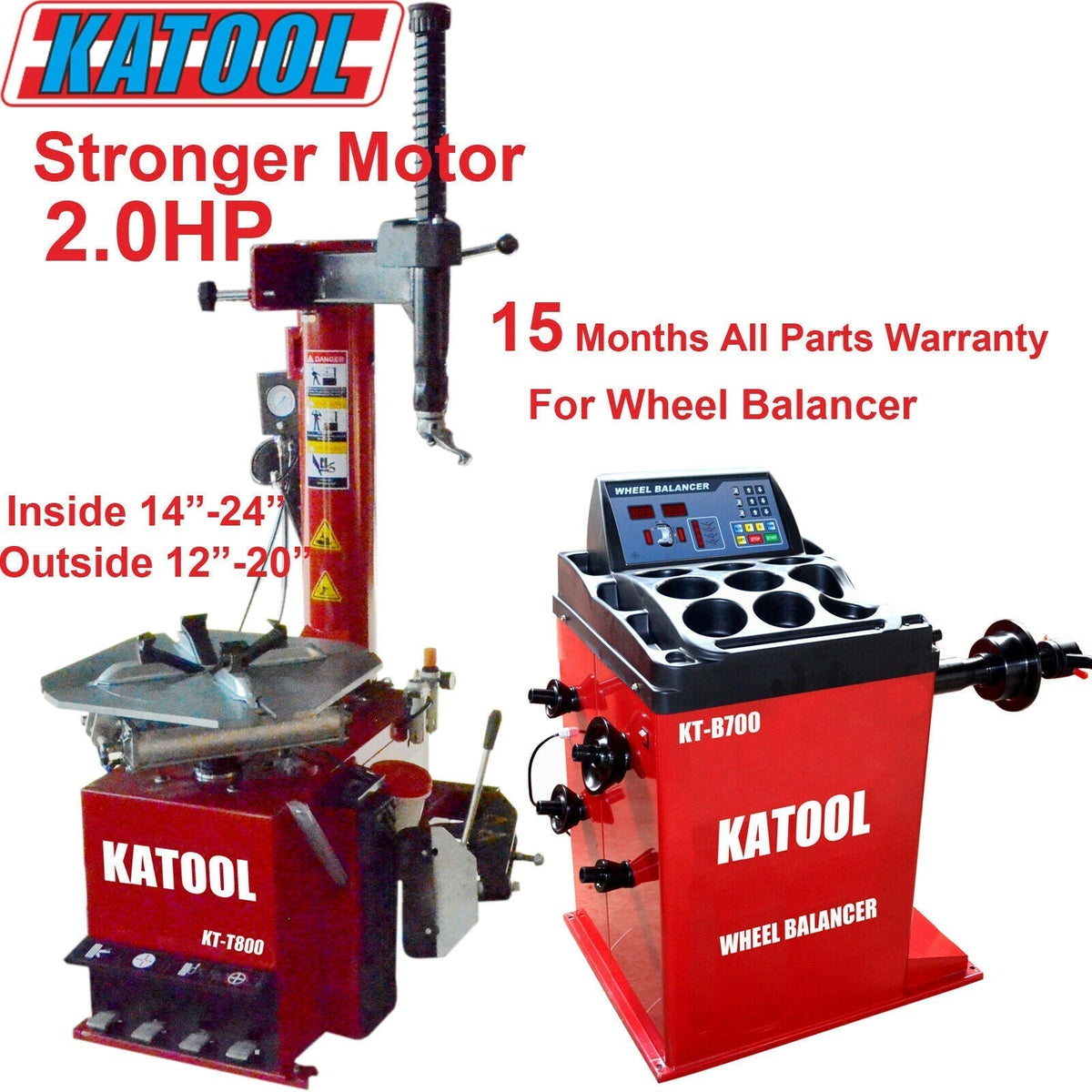

KT-T800 + KT-B700
Dual-station workshop combo composed of a pneumatic wheel-clamp tire changer and a precision wheel balancer engineered for light- to mid-size passenger wheels. The tire changer includes carburized alloy-steel jaws, a stainless mounting head with rim-safe plastic covers and a 2.0 HP motor for consistent torque during mounting and demounting. Pedal-operated inflation gauge, a pull-type control system and an integrated lubricator simplify bead seating while protecting alloy rims. The closed cabinet chassis protects internal components and reduces shop noise. The balancer uses a heavy-gauge steel body, a hardened 36 mm shaft and selectable units for flexible shop calibration. It balances rims up to 34.6 inches in diameter at 180 rpm with ±1 g repeatability and a typical measurement cycle of seven seconds. Both units run on 110 V single-phase power for North American workshops and accept a wide range of rim widths and diameters. Freight delivery is recommended for this combined unit; liftgate service or forklift unloading will usually be required at delivery. Routine maintenance points include filter/lubricator servicing and periodic jaw inspection; replacement parts are available through the manufacturer’s network. This combo fits independent shops and mobile technicians who need durable mechanical handling and straightforward balancing capability.
Features

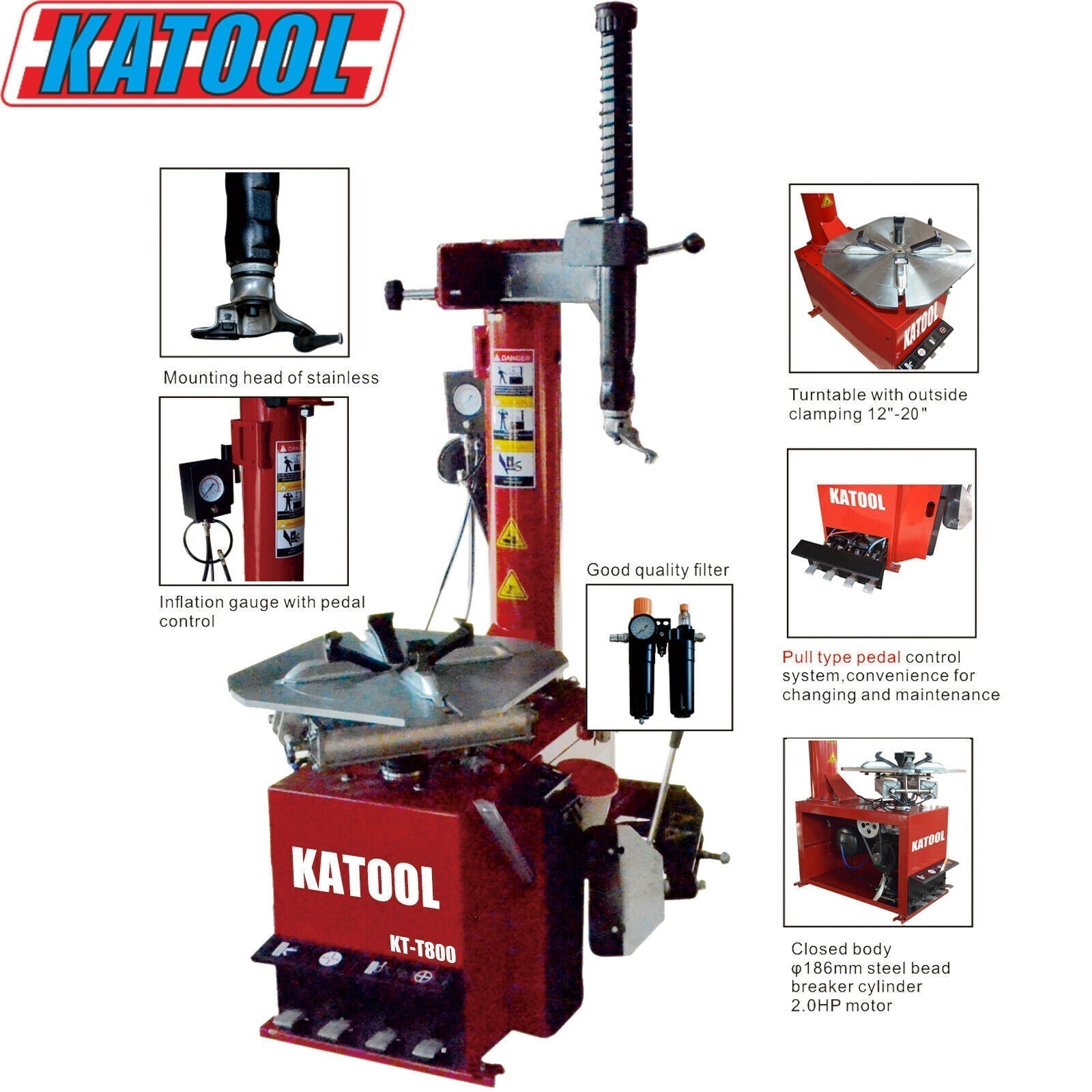

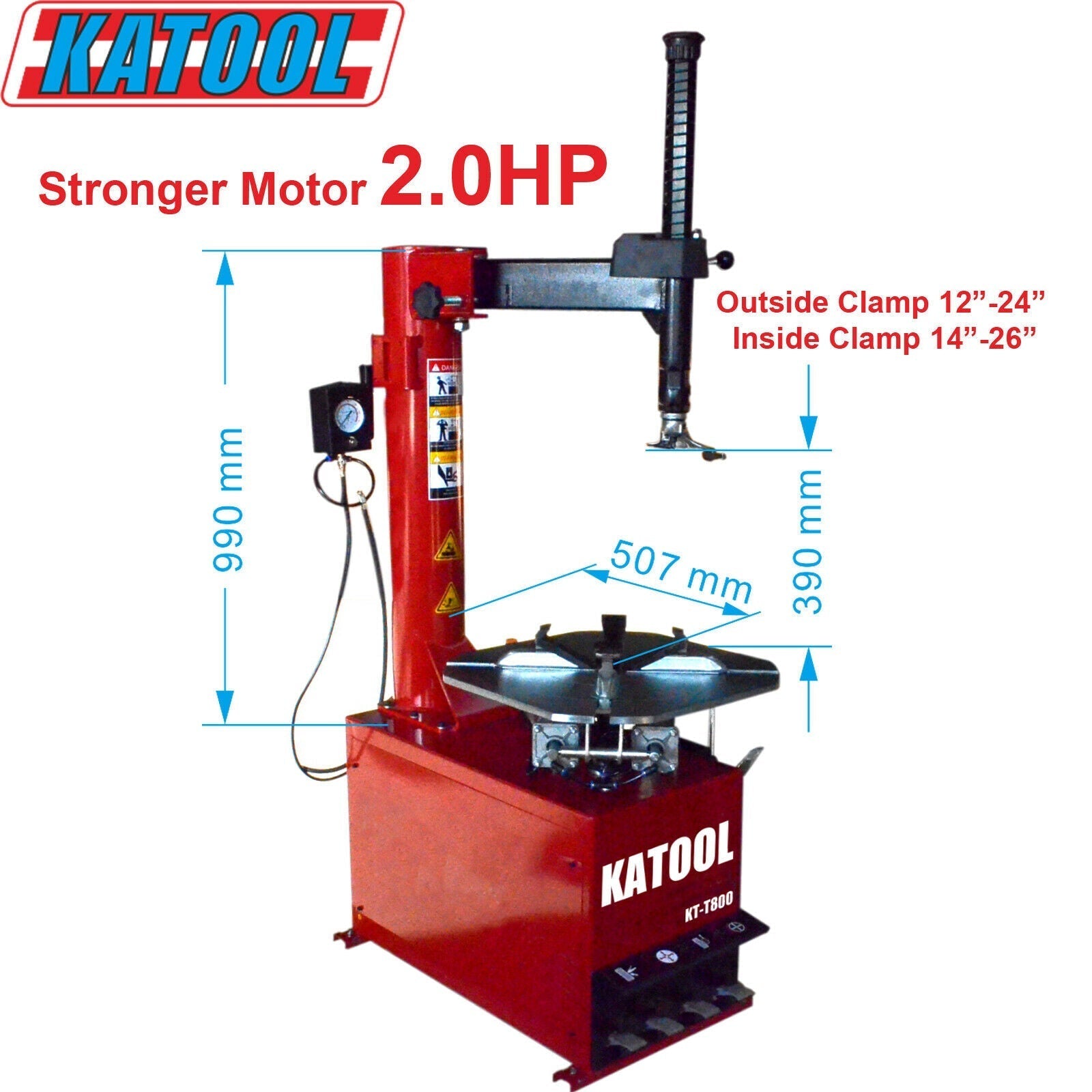

KT-T800 Wheel Clamp Tire Changer Machine with 2.0HP Motor
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

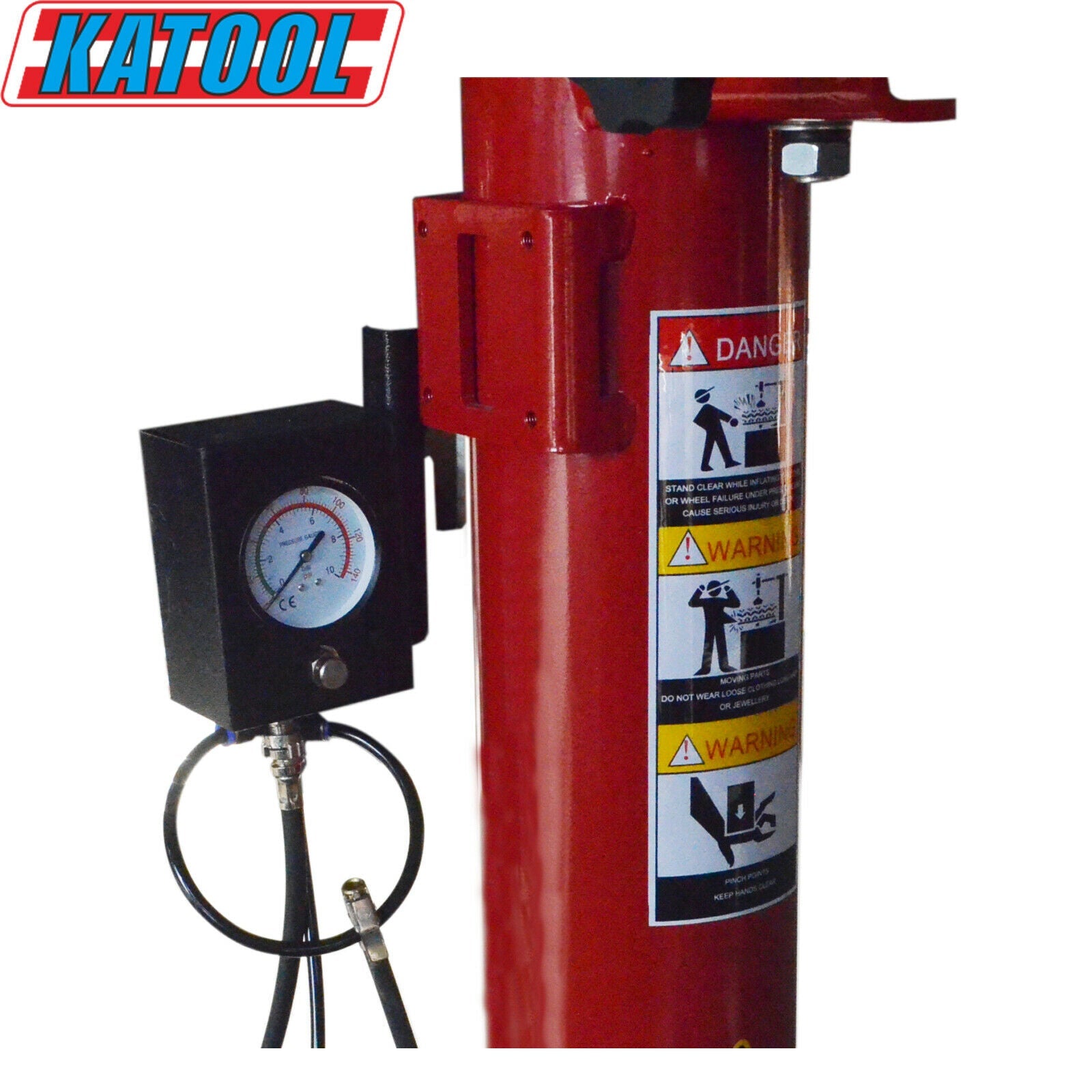

- Inflation gauge with pedal control.
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

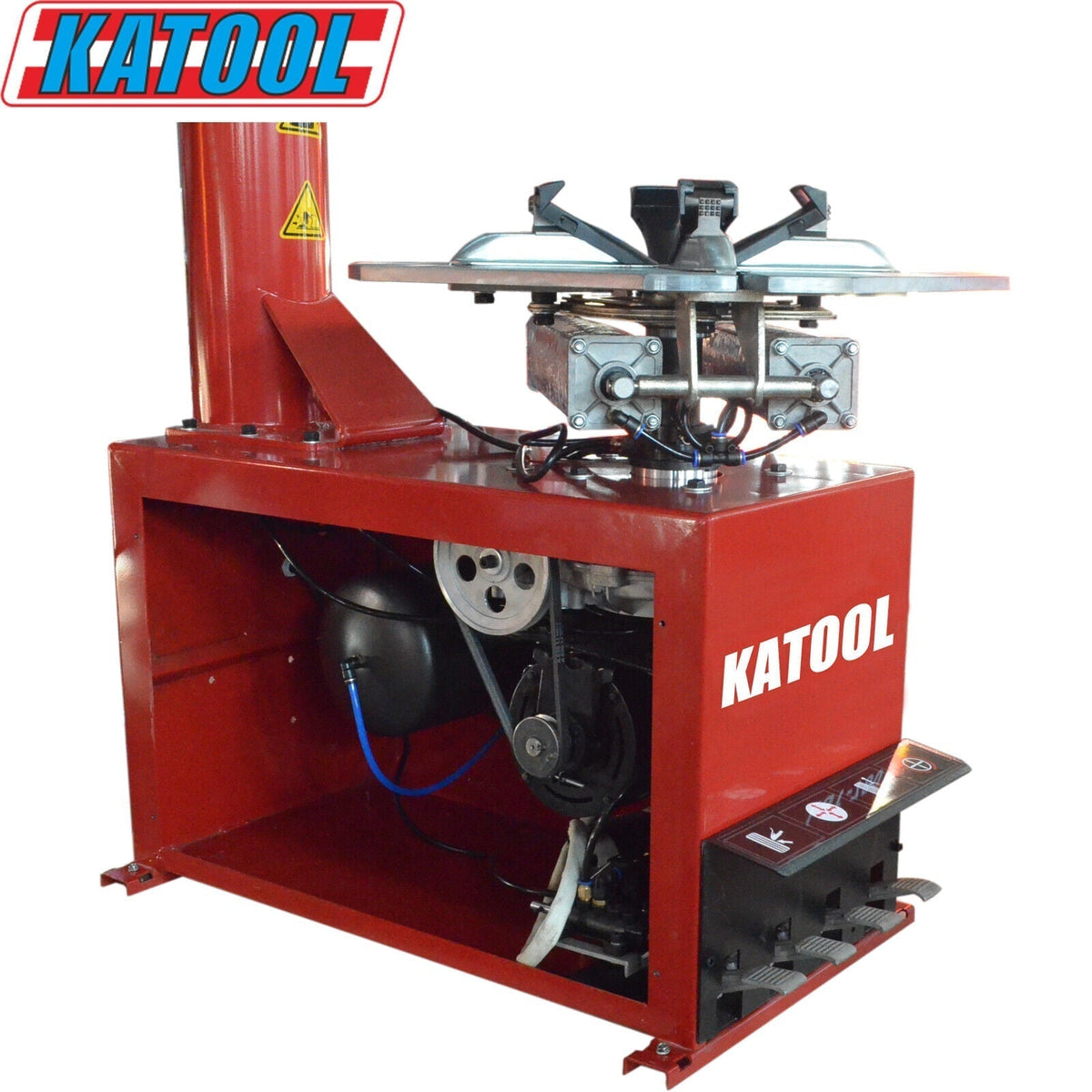

- Closed body for the protection of the parts inside

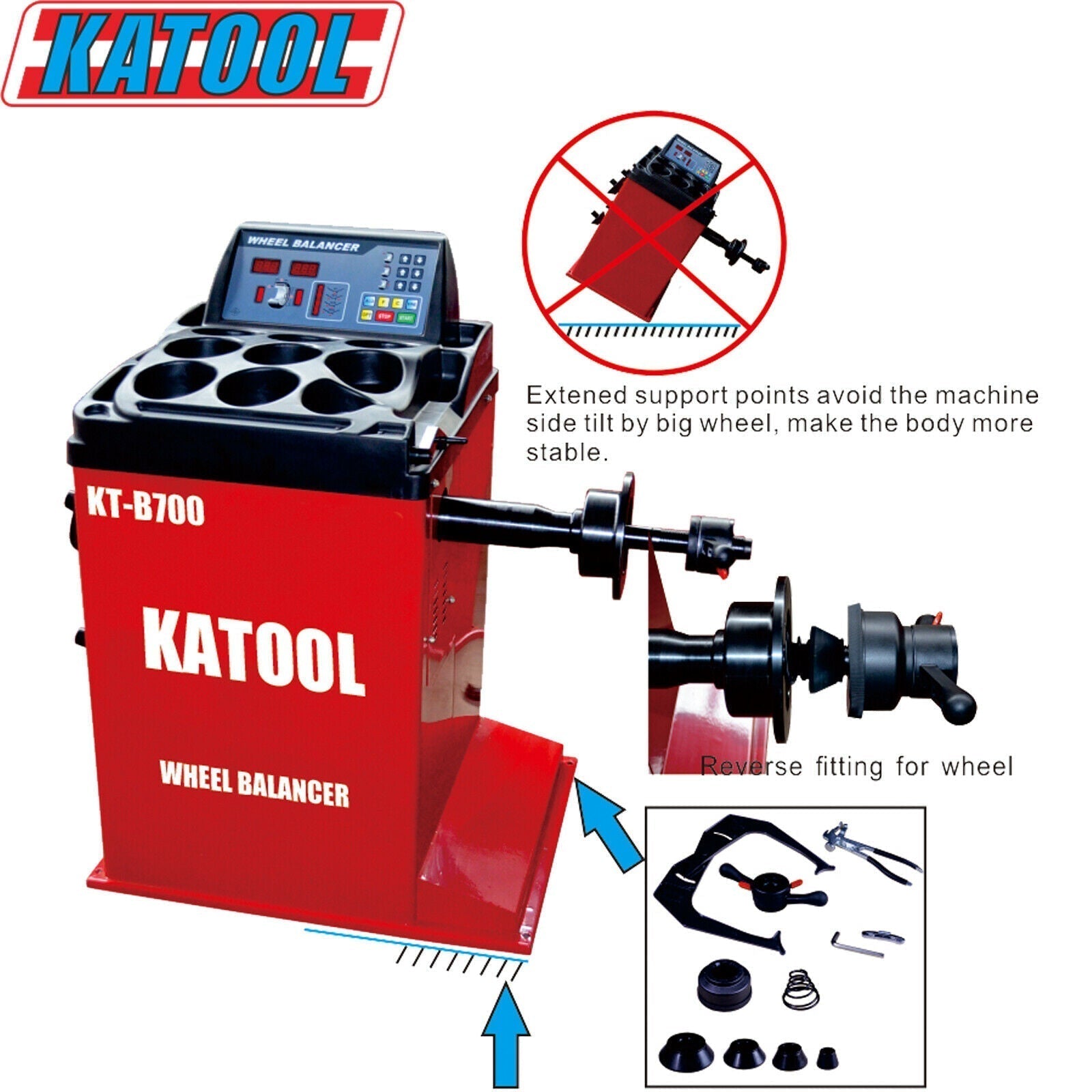

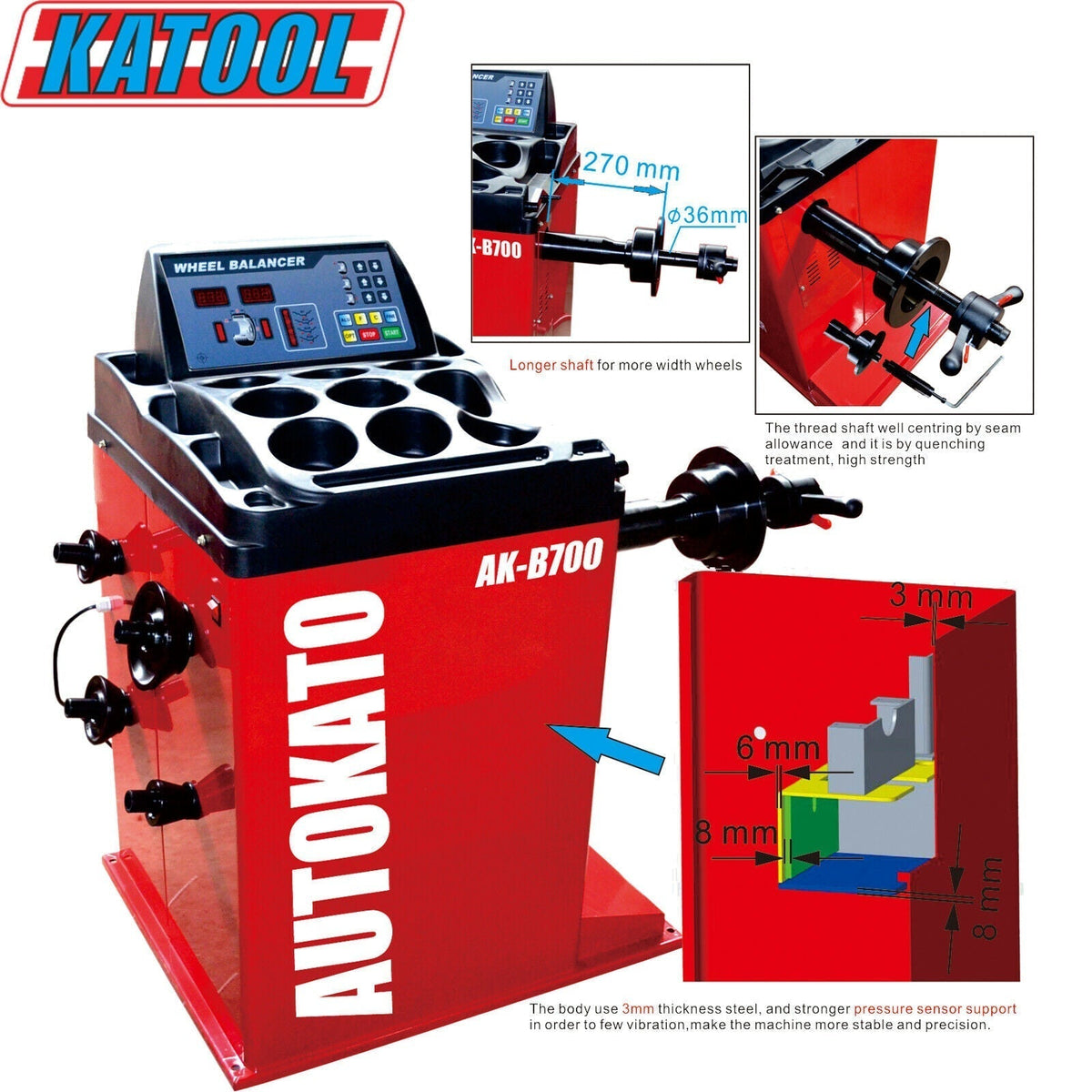

KT-B700 Wheel Balancer
- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

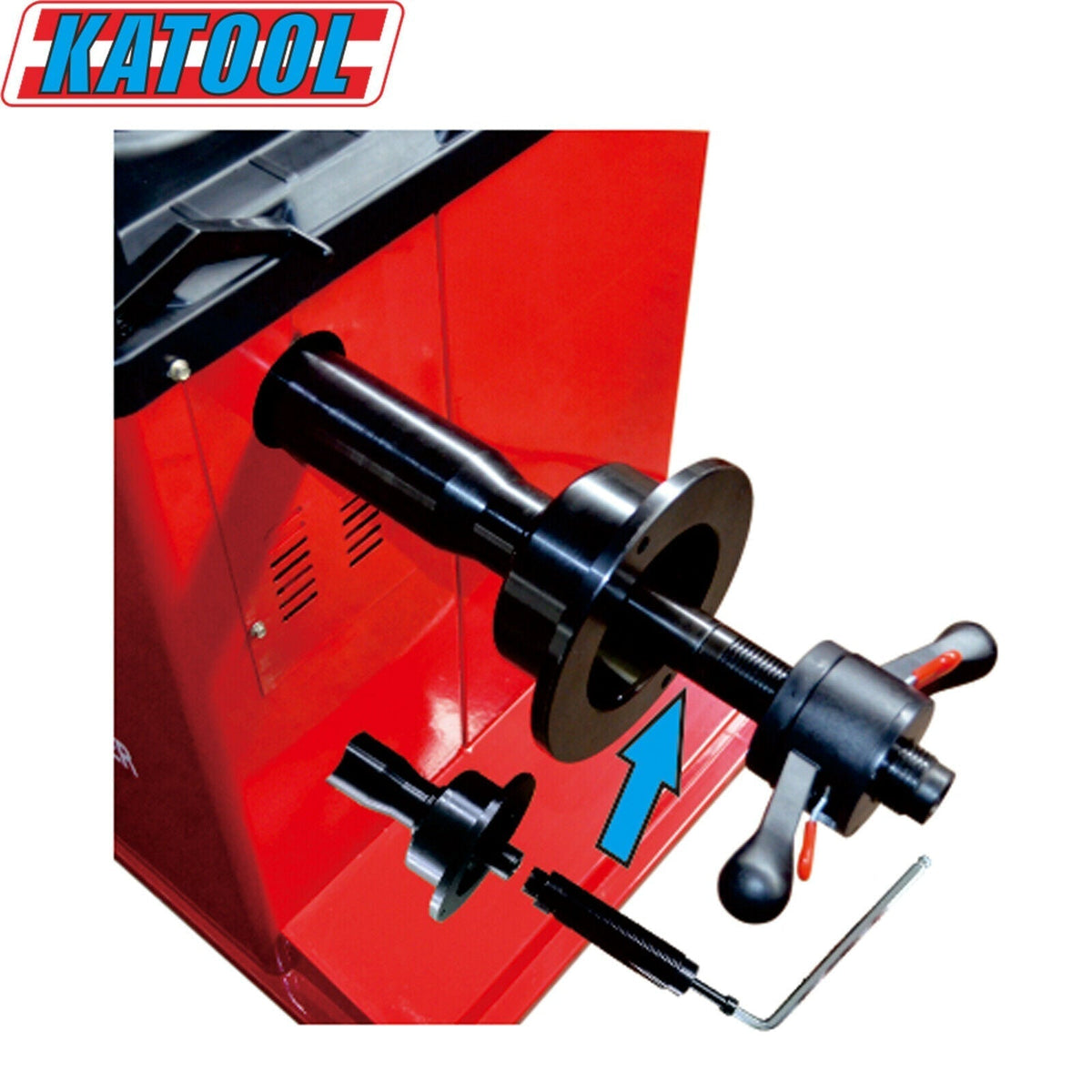

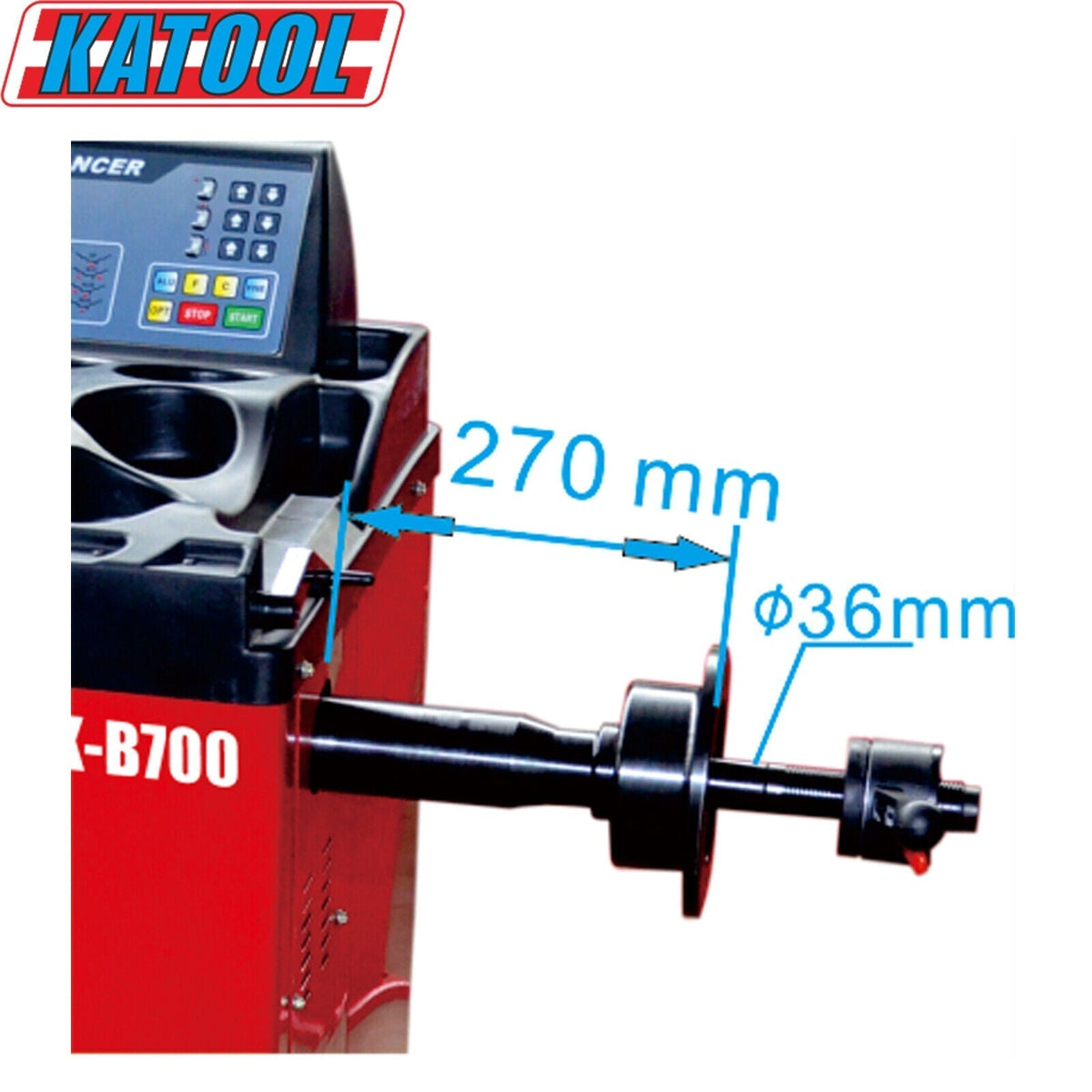

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

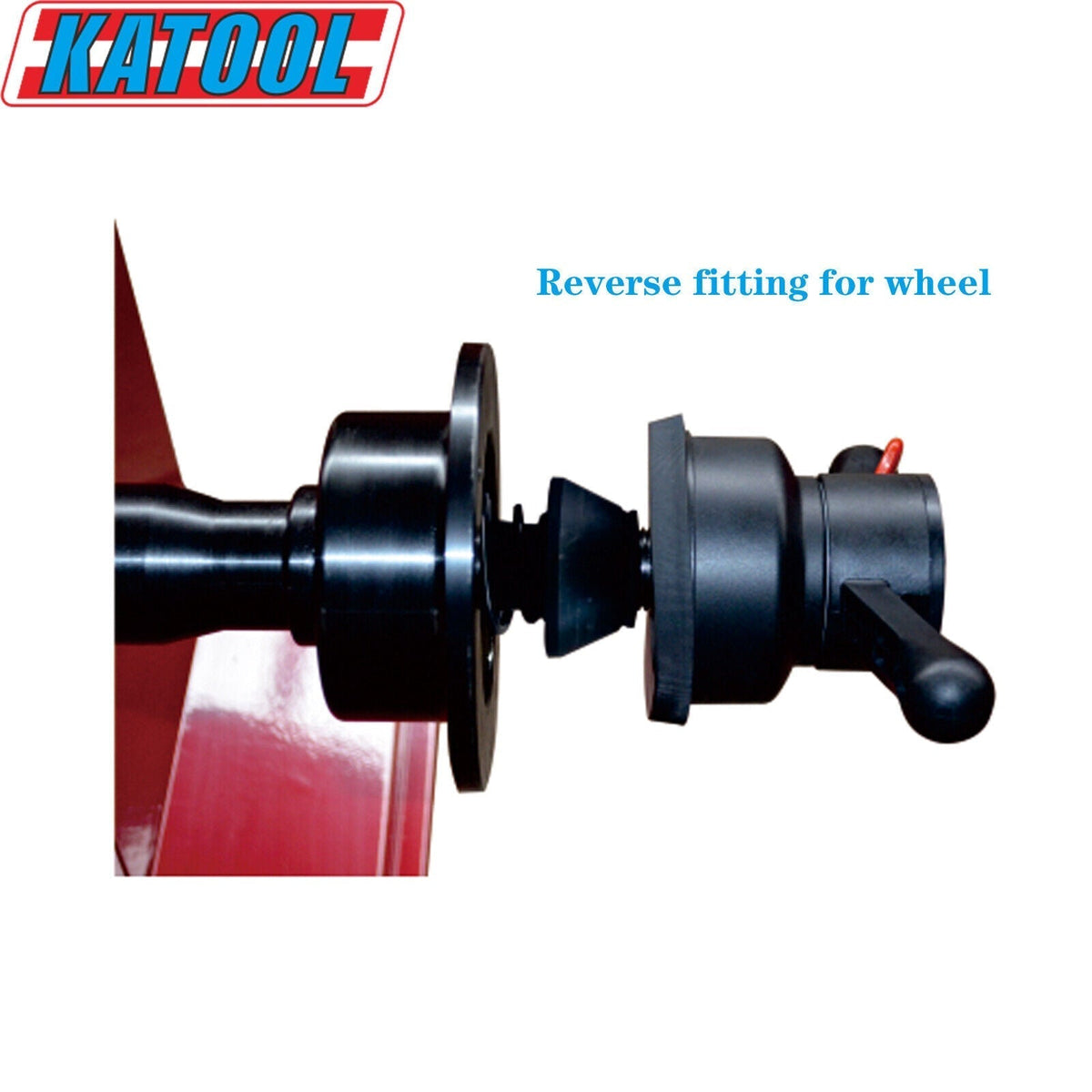

- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable.
- Optional wheel guard
- Longer shaft also compatible with wider wheels
Specifications
KT-T800 Wheel Clamp Tire Changer Machine with 2.0HP Motor
| Max Wheel Diameter: | 41"/1040mm |
| Max Wheel Width: | 15"/380mm |
| Outside Clamp: | 12"-20" |
| Inside Clamp: | 14"-24" |
| Power Supply: | 110V 1PH |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed: | 6.8r/min |
| Air Pressure: | 0.8-1.0Mpa(116-145psi) |
| Net weight: | 186KG/410lbs |
KT-B700 Wheel Balancer
| Rim Diameter: | <30" |
| Wheel Width: | 3"-12" |
| Wheel Diameter: | <880mm/34.64" |
| Balancing Speed: | 180rpm |
| Power Supply: | 120V 1PH |
| Motor Power: | 0.25KW |
| Rim Center Hole Dia.: | <135mm/5.31" |
| Wheel Weight: | <65KG/143lbs |
| Balancing Accuracy: | ±1g |
| Measuring Time: | 7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
