GFLINER160

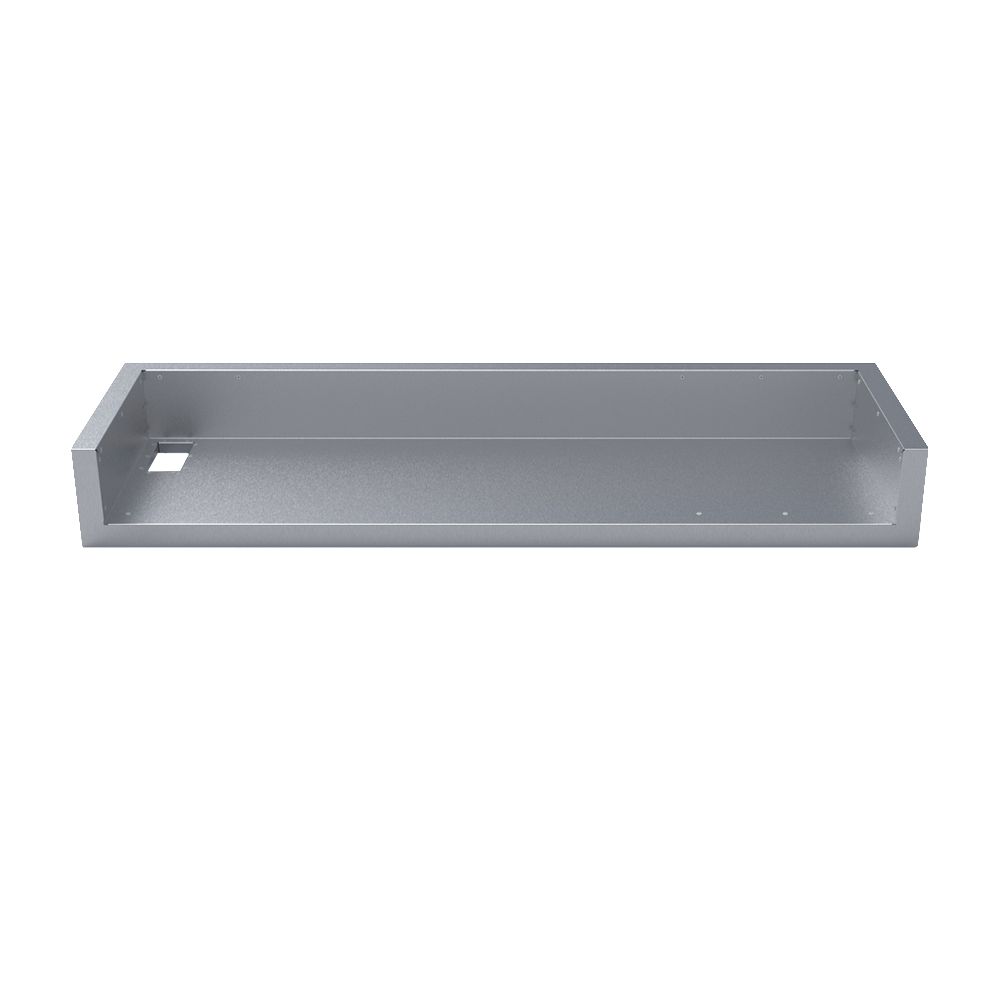

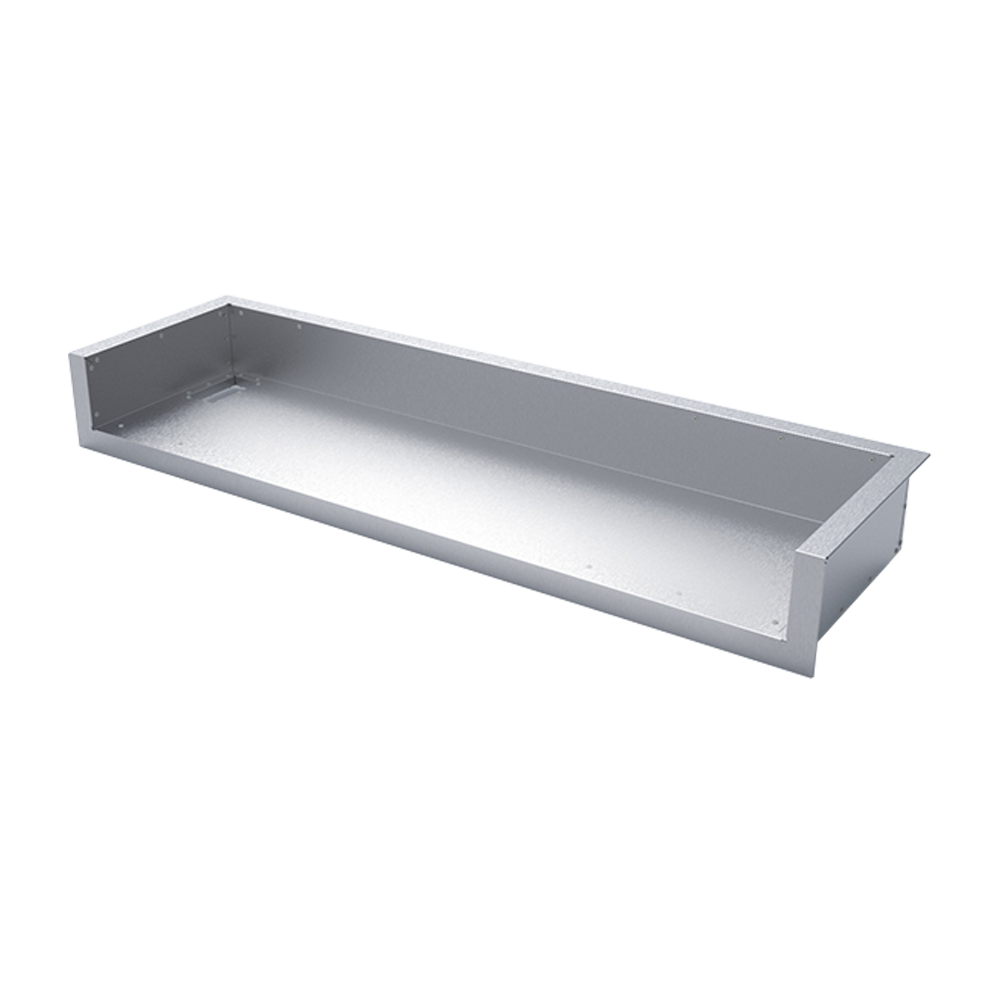

304 stainless steel insulating liner designed to protect surrounding cabinetry when installing the Grand Texan GFE160 built-in griddle. Precision-formed shell matches the GFE160 footprint with a notched connection hole for straightforward gas line access. External overall dimensions provide a protective barrier while the specified cut-out dimensions ensure flush, secure installation. Liner is not compatible with Trim Kits / Frame Kits GFFRAME160; cabinets must be non-combustible or this liner must be used for safe installation. Manufactured in the USA for consistent fit and corrosion-resistant performance in high-heat outdoor kitchen environments.
Specifications:
| Material | 304 stainless steel |
| Finish | Brushed stainless (visible finish from product images) |
| Overall Dimensions (W x D x H) | 64-1/8" x 18-5/8" x 8-1/8" (64.125" x 18.625" x 8.125") |
| Cut-Out Dimensions (W x D x H) | 62-1/8" x 17-5/8" x 7-5/8" (62.125" x 17.625" x 7.625") |
| Compatible Models | Fits GFE160 - The Grand Texan Built-In Griddles only |
| Installation Notes | Connection hole notched out for gas access; cabinet must be non-combustible or this insulating liner must be used; not compatible with Trim Kits/Frame Kits (GFFRAME160) |
| Includes | Single insulating liner (mounting hardware not included) |
| Country of Origin | Made in USA |
| SKU | GFLINER160 |
| Description | Protective stainless liner for built-in griddle installations to prevent heat transfer to combustible cabinetry and to ensure correct fit for GFE160 models |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or this insulation liner must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME160
304 stainless steel insulating liner designed to protect surrounding cabinetry when installing the Grand Texan GFE160 built-in griddle. Precision-formed shell matches the GFE160 footprint with a notched connection hole for straightforward gas line access. External overall dimensions provide a protective barrier while the specified cut-out dimensions ensure flush, secure installation. Liner is not compatible with Trim Kits / Frame Kits GFFRAME160; cabinets must be non-combustible or this liner must be used for safe installation. Manufactured in the USA for consistent fit and corrosion-resistant performance in high-heat outdoor kitchen environments.
Specifications:
| Material | 304 stainless steel |
| Finish | Brushed stainless (visible finish from product images) |
| Overall Dimensions (W x D x H) | 64-1/8" x 18-5/8" x 8-1/8" (64.125" x 18.625" x 8.125") |
| Cut-Out Dimensions (W x D x H) | 62-1/8" x 17-5/8" x 7-5/8" (62.125" x 17.625" x 7.625") |
| Compatible Models | Fits GFE160 - The Grand Texan Built-In Griddles only |
| Installation Notes | Connection hole notched out for gas access; cabinet must be non-combustible or this insulating liner must be used; not compatible with Trim Kits/Frame Kits (GFFRAME160) |
| Includes | Single insulating liner (mounting hardware not included) |
| Country of Origin | Made in USA |
| SKU | GFLINER160 |
| Description | Protective stainless liner for built-in griddle installations to prevent heat transfer to combustible cabinetry and to ensure correct fit for GFE160 models |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or this insulation liner must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME160
