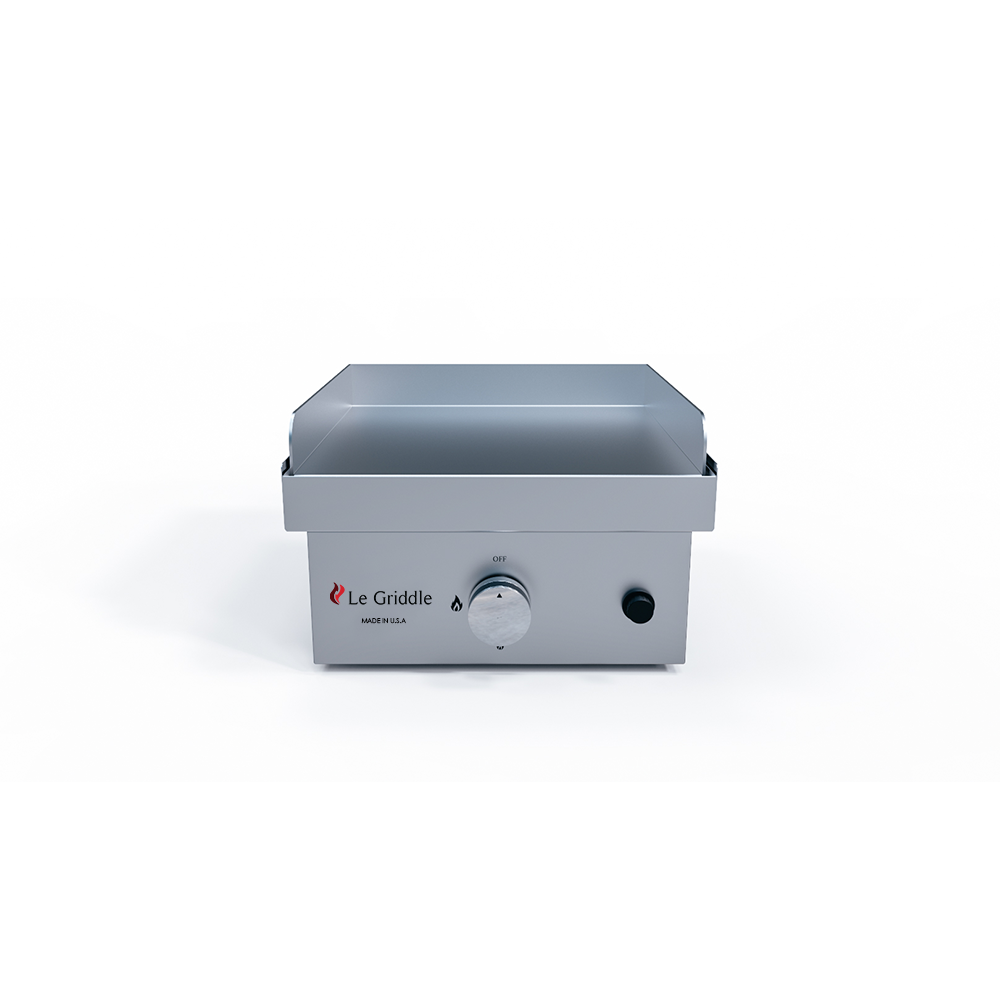

GFE40

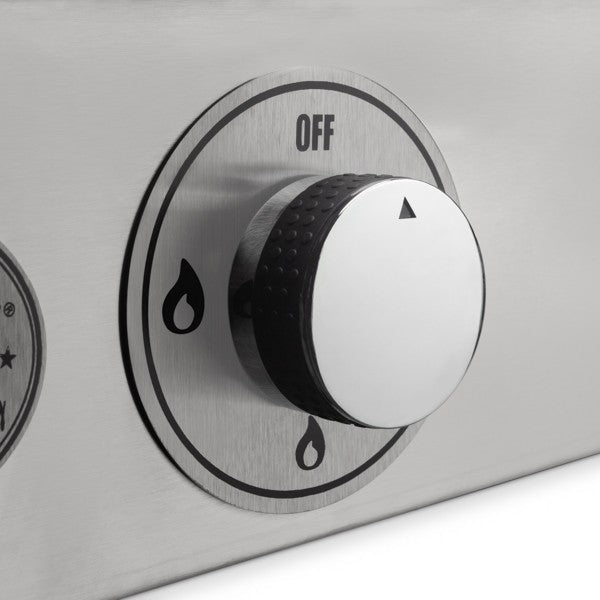

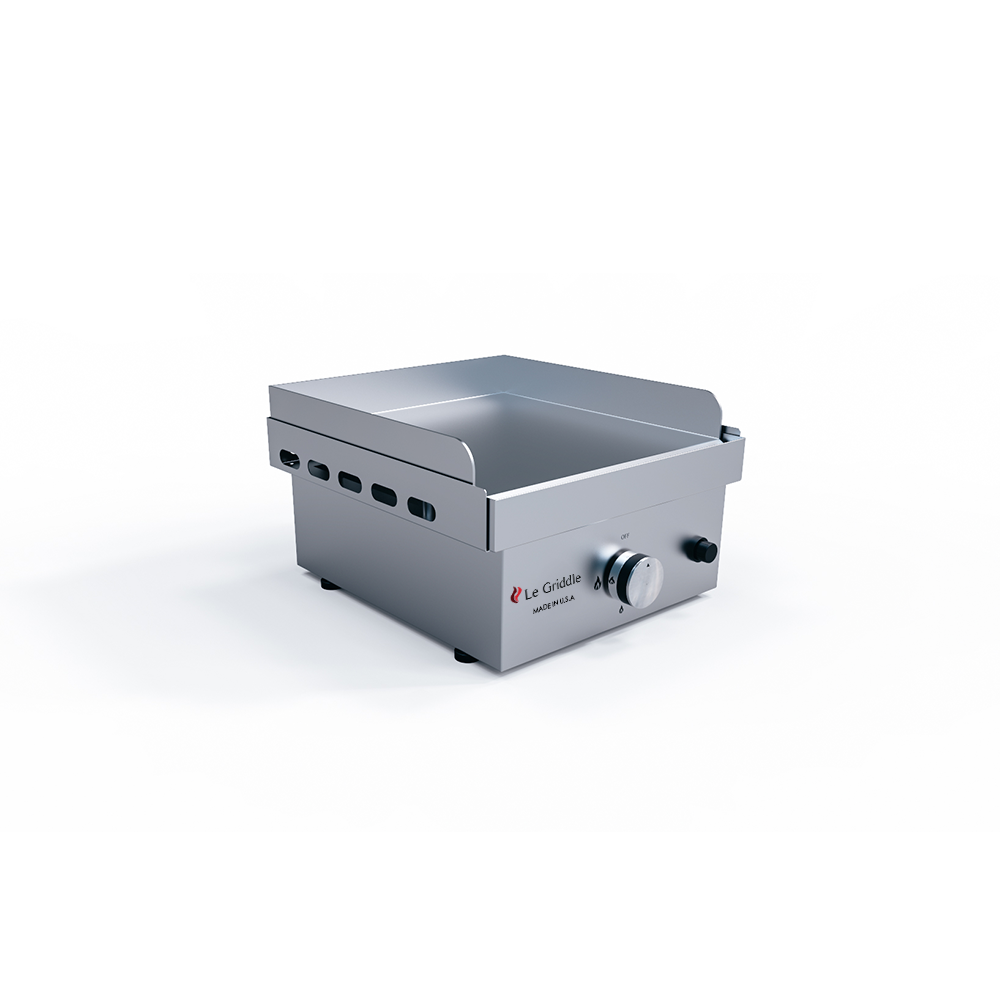

304 stainless steel frame and cooking surface with a cast-iron base plate provides even heat distribution and long-term corrosion resistance for outdoor use. The 16" x 15-3/4" cooking area paired with a single U‑shape stainless steel burner delivers 9,000 BTU of focused cooking power for searing and breakfast service. Battery-operated ignition and a thermocouple safety valve offer reliable start-up and automatic gas shutoff if the flame is lost. Removable grease tray and accessible front controls simplify cleaning and routine maintenance. Includes opposite gas orifices for field conversion between natural gas and propane and a standard 3/8" gas fitting. ETL and ANSI certification and U.S. manufacture support professional installation and code compliance.
Specifications:
| Materials | 304 stainless steel frame and cooking surface; cast-iron base plate for even heat |
| Cooking Surface Size | 16" x 15-3/4" (inches) |

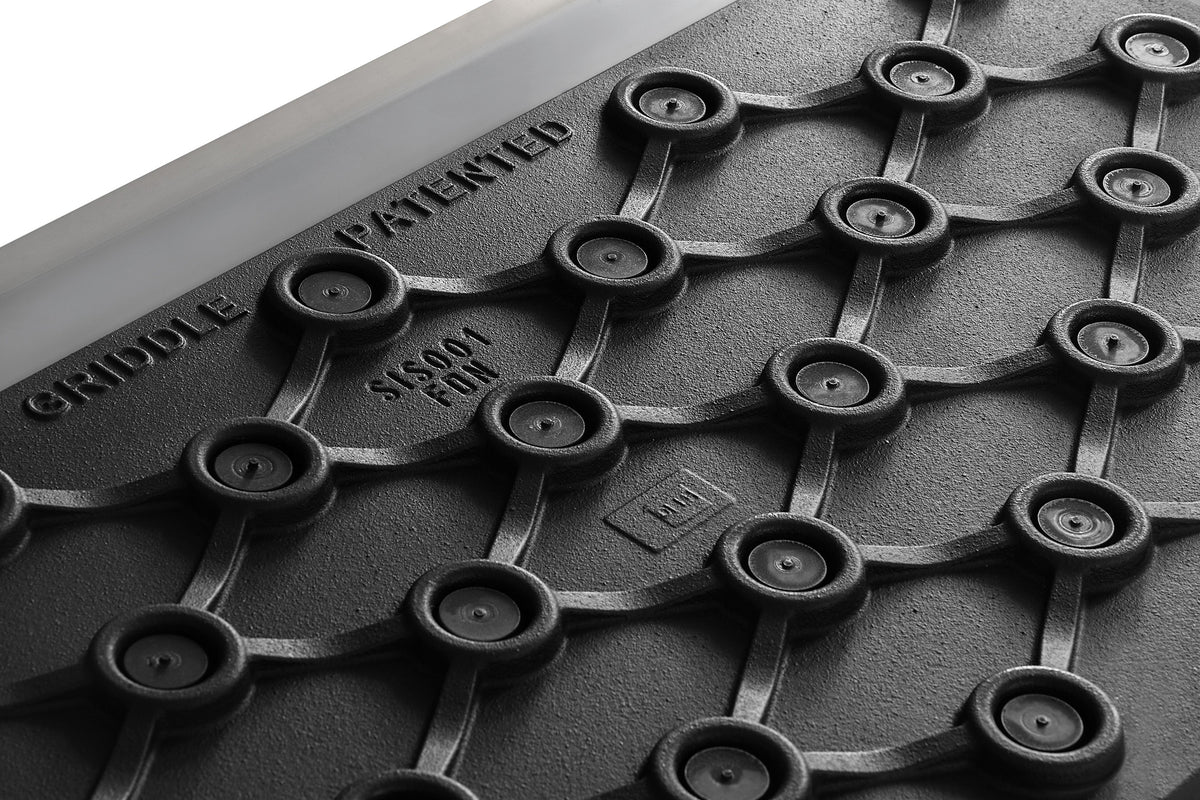

| Cooking Surface Construction | 304 stainless steel top over cast-iron base plate |
| Overall Dimensions | 17-1/4" x 18-3/4" x 12-1/2" (L x W x H) |
| Cut-Out Dimensions | 14-3/4" W x 16-3/4" D x 5-3/4" H |

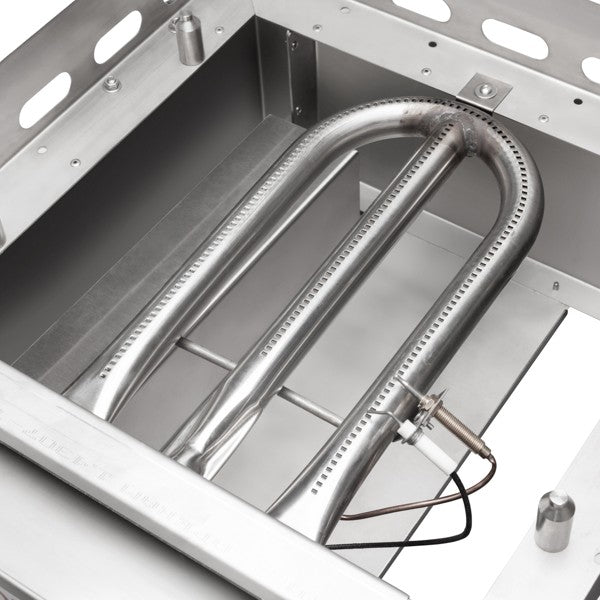

| Burner | 1 U‑shape stainless steel burner, 9,000 BTU total output |
| Gas Type / Conversion | Natural gas or propane; opposite gas orifices included for conversion |
| Gas Fitting | 3/8" gas fitting (standard) |

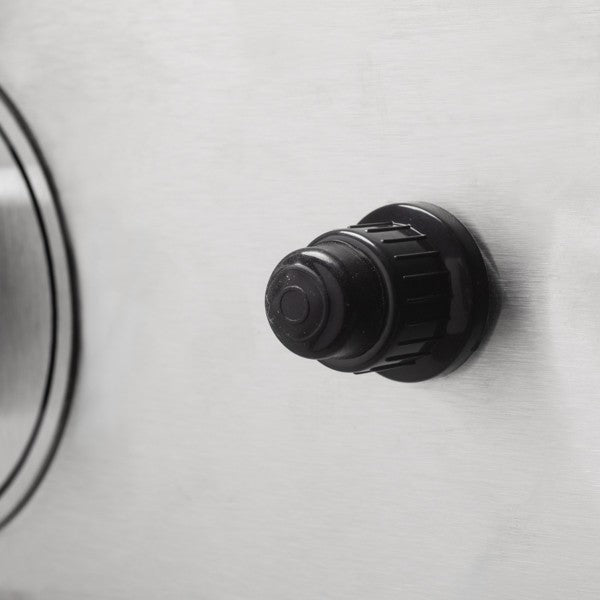

| Ignition & Safety | Battery-operated ignition; safety valve with thermocouple to shut off gas on flame loss |

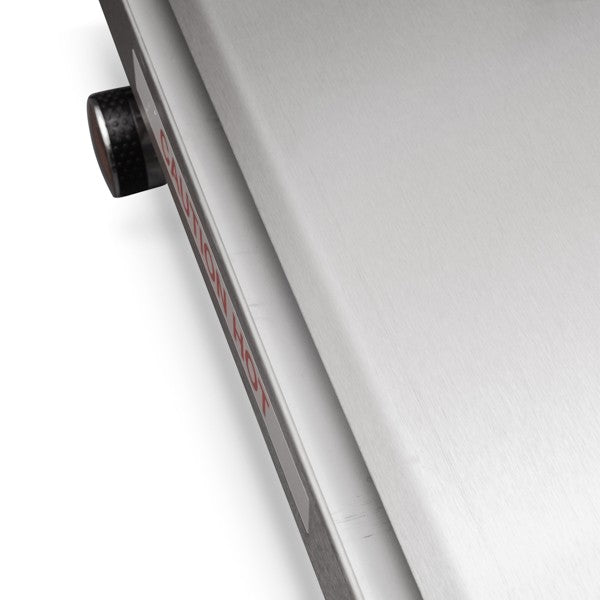

| Grease Management | Removable grease tray for easy cleaning |
| Certifications & Origin | ETL certified; ANSI Z21.58b; Made in USA |
**Propane Hose / Regulator & Gas Flex Lines Sold Separately
For Natural Gas - See Flex Hoses - SSFLEX
For Propane Gas - See LP Hoses - RONHK
Warranty:
All Le Griddle Gas and Electric Cooking Surfaces and Burners are warrantied free from manufacturer defects for a lifetime to the original owner.
All other parts are warrantied free from manufacturer defects for 10 years to the original owner.
** Notice - Must be installed in a non-combustible cabinet for outdoor kitchen applications.
Insulated liner must be used if installing into a cabinet constructed with combustible materials. See GFLINER40.
This appliance may also be placed on a non-combustible surface or the optional portable cart - GFCART40
304 stainless steel frame and cooking surface with a cast-iron base plate provides even heat distribution and long-term corrosion resistance for outdoor use. The 16" x 15-3/4" cooking area paired with a single U‑shape stainless steel burner delivers 9,000 BTU of focused cooking power for searing and breakfast service. Battery-operated ignition and a thermocouple safety valve offer reliable start-up and automatic gas shutoff if the flame is lost. Removable grease tray and accessible front controls simplify cleaning and routine maintenance. Includes opposite gas orifices for field conversion between natural gas and propane and a standard 3/8" gas fitting. ETL and ANSI certification and U.S. manufacture support professional installation and code compliance.
Specifications:
| Materials | 304 stainless steel frame and cooking surface; cast-iron base plate for even heat |
| Cooking Surface Size | 16" x 15-3/4" (inches) |
| Cooking Surface Construction | 304 stainless steel top over cast-iron base plate |
| Overall Dimensions | 17-1/4" x 18-3/4" x 12-1/2" (L x W x H) |
| Cut-Out Dimensions | 14-3/4" W x 16-3/4" D x 5-3/4" H |
| Burner | 1 U‑shape stainless steel burner, 9,000 BTU total output |
| Gas Type / Conversion | Natural gas or propane; opposite gas orifices included for conversion |
| Gas Fitting | 3/8" gas fitting (standard) |
| Ignition & Safety | Battery-operated ignition; safety valve with thermocouple to shut off gas on flame loss |
| Grease Management | Removable grease tray for easy cleaning |
| Certifications & Origin | ETL certified; ANSI Z21.58b; Made in USA |
**Propane Hose / Regulator & Gas Flex Lines Sold Separately
For Natural Gas - See Flex Hoses - SSFLEX
For Propane Gas - See LP Hoses - RONHK
Warranty:
All Le Griddle Gas and Electric Cooking Surfaces and Burners are warrantied free from manufacturer defects for a lifetime to the original owner.
All other parts are warrantied free from manufacturer defects for 10 years to the original owner.
** Notice - Must be installed in a non-combustible cabinet for outdoor kitchen applications.
Insulated liner must be used if installing into a cabinet constructed with combustible materials. See GFLINER40.
This appliance may also be placed on a non-combustible surface or the optional portable cart - GFCART40
